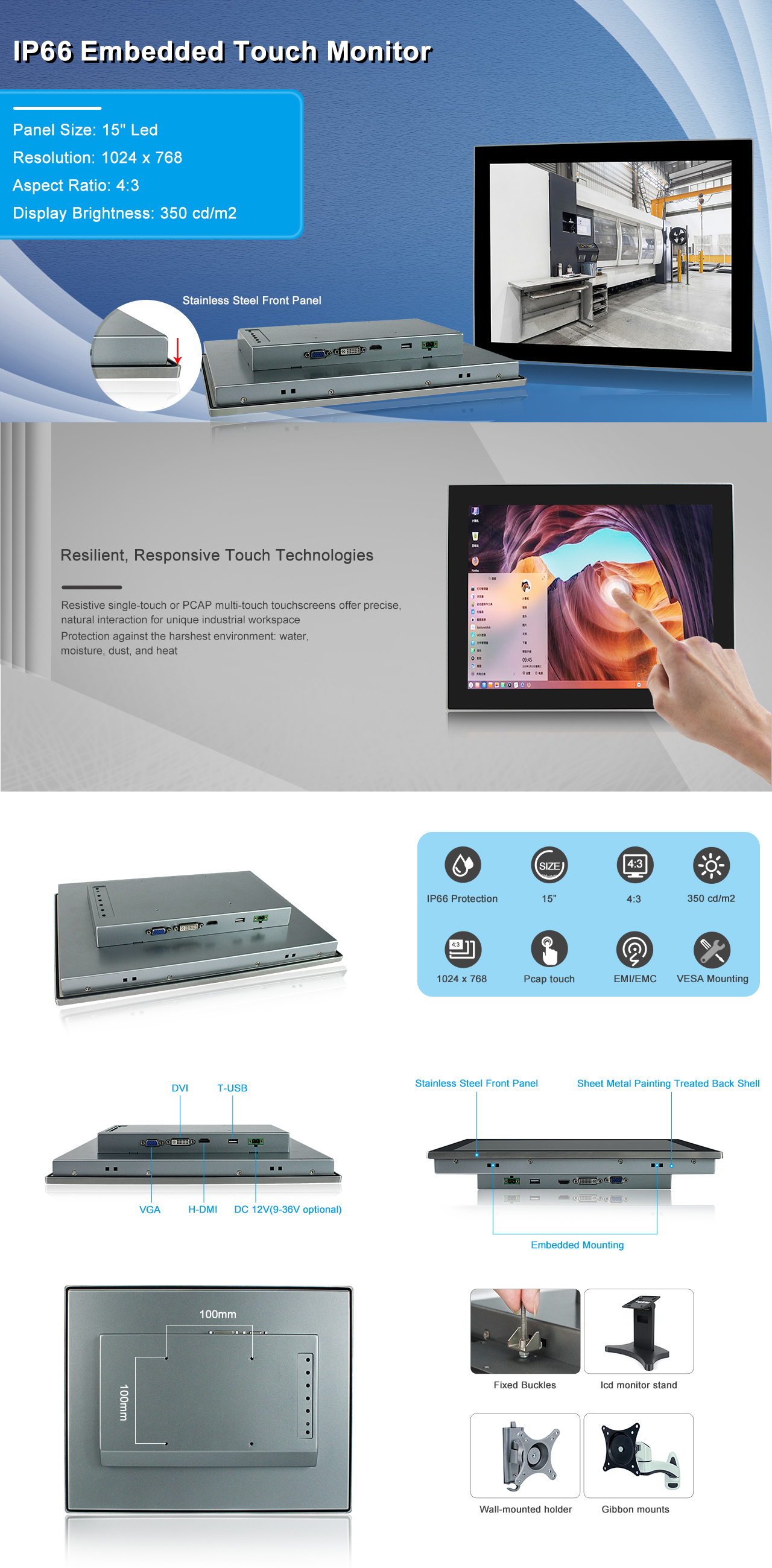

    PM-H015SCC

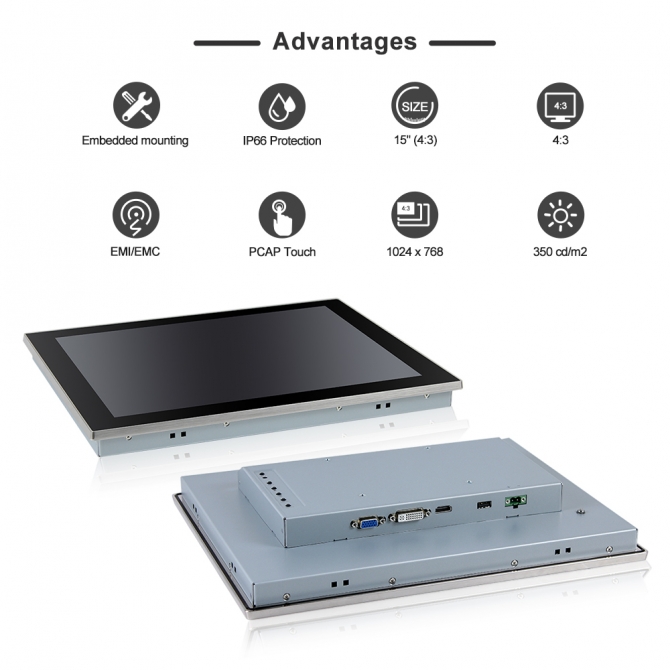

    Product features:

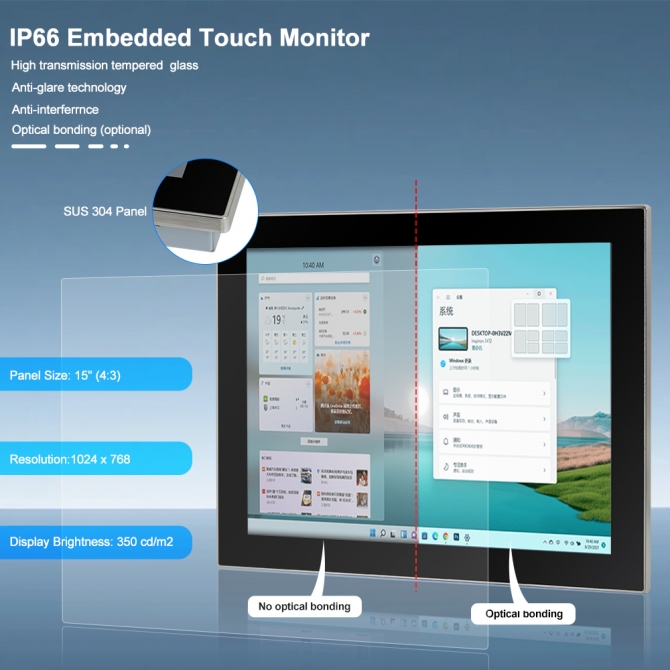

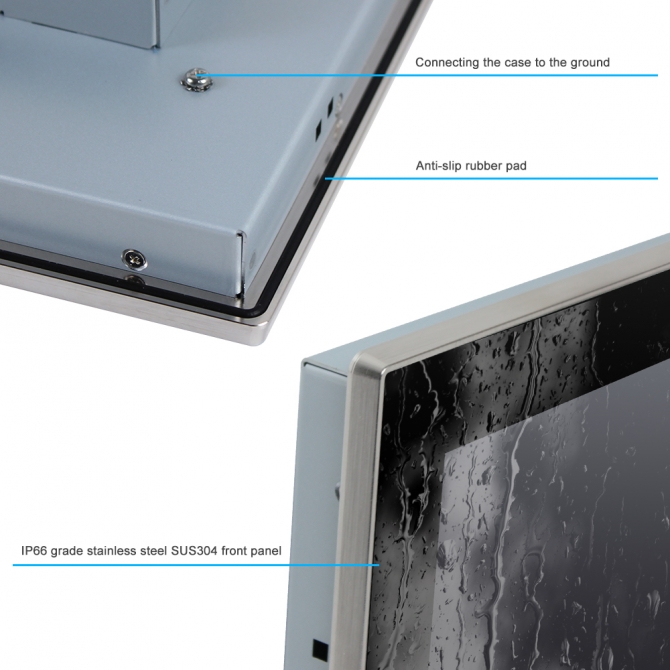

    • Aluminium alloy front panel, front IP66 waterproof

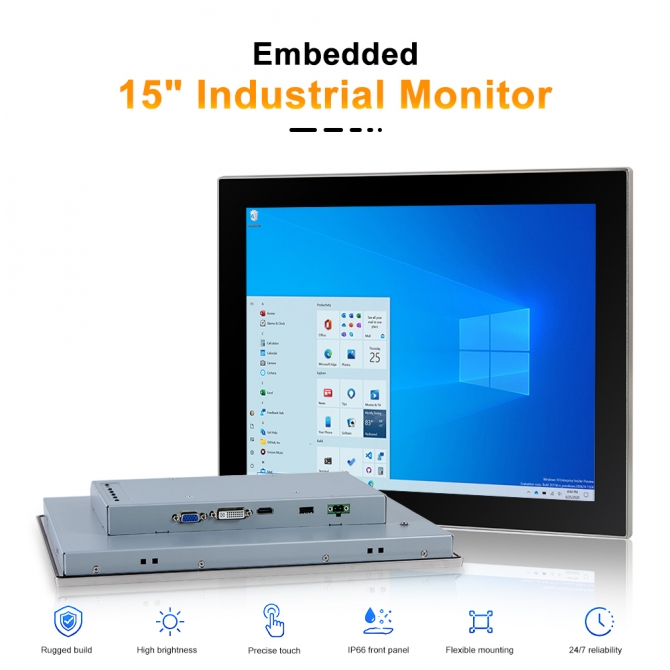

    • 15" TFT LED, Resolution 1024x768, 10 Points PCAP Touch
    • Embedded / VESA mounting

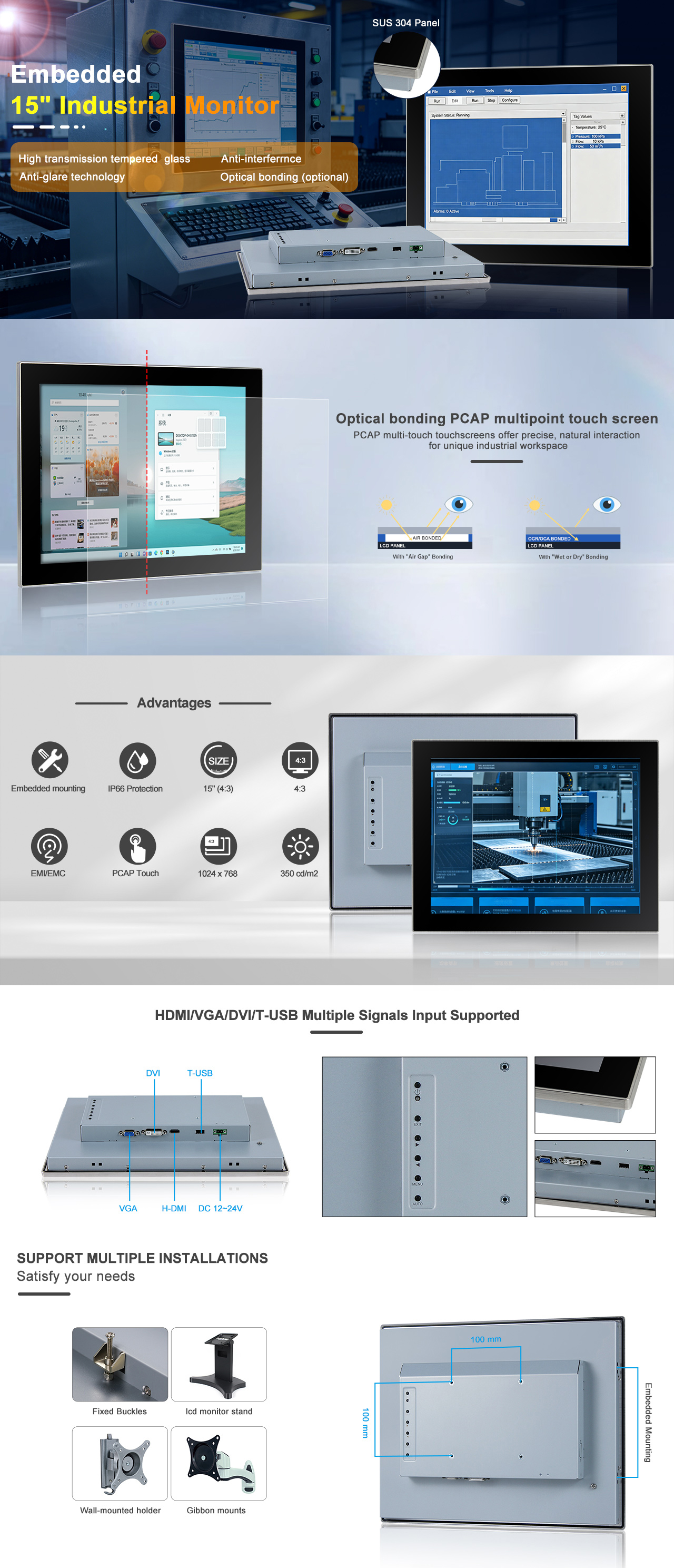

    • HDMI/VGA/DVI/T-USB Multiple Signals Input Supported
    • DC 12~24V Input
    CERoHSFCIP66
    Visit:1449
    Description Specifications Dimension drawing Order Info Driver download

    Display

    Panel Size

    15" ( 4:3 )

    Resolution

    1024 x 768

    Display Brightness

    350 cd/m2

    Contrast Ratio

    1000:1

    Backlight Lifetime

    50000 Hr (min.)

    Viewing Angle

    89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

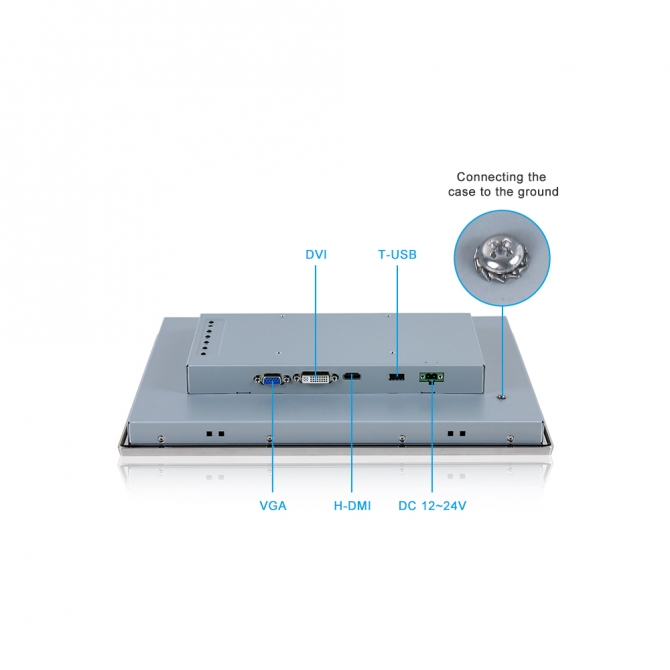

    I / O

    VGA

    1 x VGA

    H-DMI

    1 x H-DMI

    DVI

    1 x DVI

    USB

    1 x Touch  USB

    Other I/O Interface

    1 x OSD Control Key

    Power

    Power Adapter

    1 x Optional AC/DC 12V/4A , 48W

    Power Input

    2-pin Terminal Block Connector with Power Input 12~24VDC

    Power Consumption

    ≦25W

    Physical

    Material

    SUS 304 Panel + SECC

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    361 x 285 x 55 mm

    Cut-out Size

    347 x 271 mm

    Packing Size

    460 x 180 x 400 mm

    Weight (Net)

    3.5 kg

    Environment

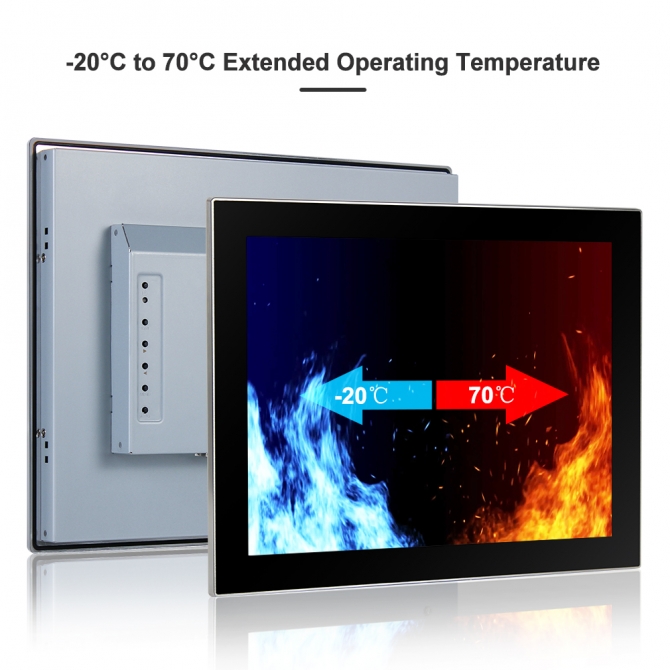

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    Front Panel IP66

    EMC

    CE, FCC,ROHS



    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PM-H015SCC

    15” TFT LED / Resolution 1024x768 / PCAP Touch / VGA / H-DMI / DVI / T-USB / DC 12~24V



    PACKING LIST

    1x 15Embedded Touch Monitor

    1x 1.5m H-DMI Cable

    11.5m T-USB Cable

    8Embedded Buckles

    1x Power Adaptor
