WPC-J185WDC
Product features：
- Industrial-grade 18.5" FHD LCD panel with 50k backlight lifetime
- Optical bonding PCAP multipoint touch screen
- Intel® Celeron® J1900 quad-core 2.0 GHz processor
- 1 x DDR3 SDRAM max.8GB, 1 x mSATA SSD

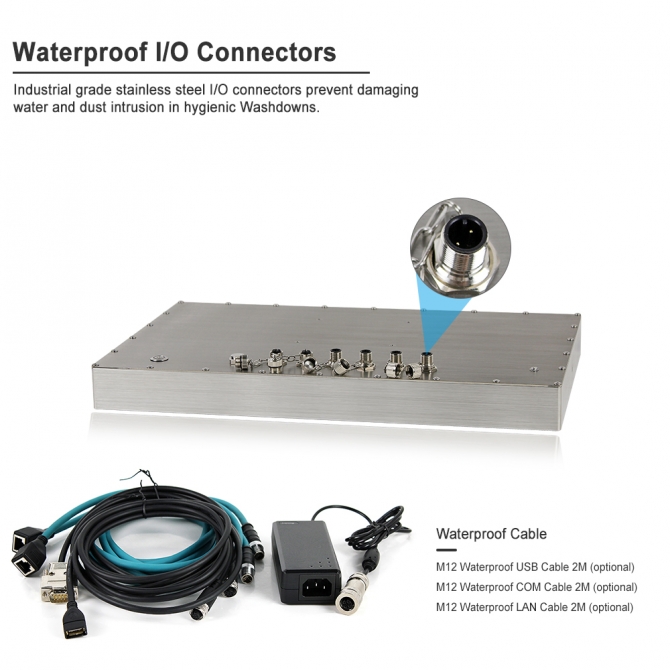

- M12 I/O ports：2 x LAN / 2 x USB / 1 x COM

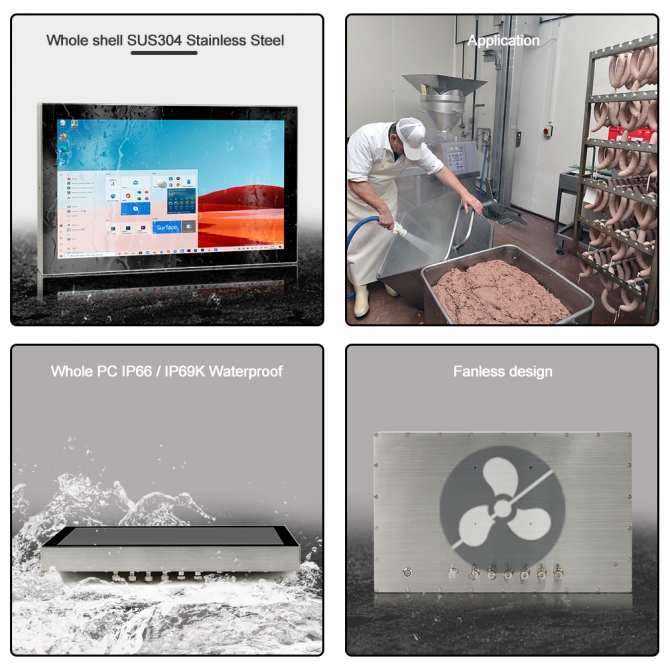

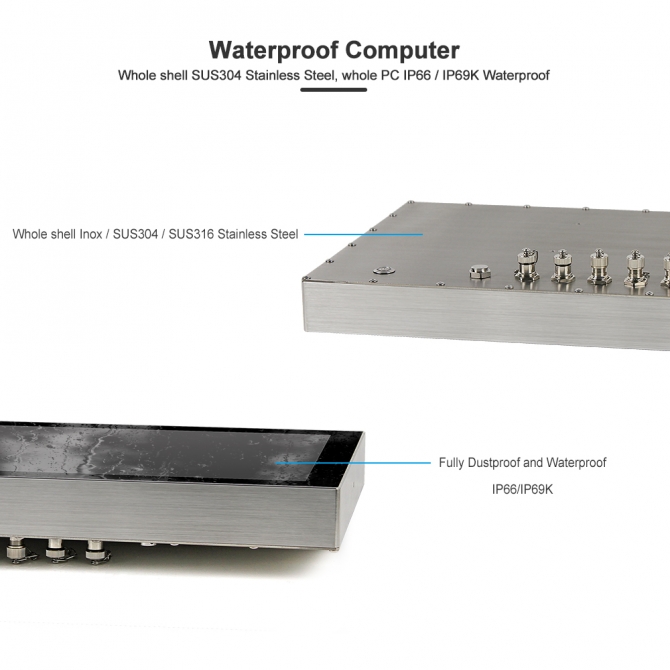

- Full device IP66 / IP69K with Stainless Steel SUS304/316 construction
- Wide Operating Temperature -20°C to 70°C
- 12V to 24VDC Wide Range Power Input
|
System |
|
|
CPU |
Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
2MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
1 x DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
1 x mSATA 128G SSD / ( 256G / 500G / 1TB SSD) optional |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel® 226-V GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 8 / 10 ，Linux, Ubuntu |
|
I/O |
|
|
VIDEO |
1 x H-DMI ( Optional ) |
|
LAN |
2 x M12 Waterproof Giga LAN RJ45 Connector |
|
USB |
2 x M12 Waterproof Connector For USB2.0 |
|
COM |
1 x M12 Waterproof Connector For COM |
|
Wireless Network |
Optional （WiFi / Bluetooth / 4G ) |
|
Other I/O Interface |
1 x Power Switch |
|
Expansion |
|
|
mPCe |
1 x mPCe ( PCIe+USB, Wifi+BT+4G) |
|
SIM Socket |
1x SIM Socket |
|
Display |
|
|
LCD Size |
18.5" ( 16:9 ) |
|
Resolution |
1920 x 1080 ( FHD ) |
|
Brightness (cd/m²) |
350 cd/m2 |
|
Contrast Ratio |
1200:1 |
|
Backlight MTBF |
50000 Hr (min.) |
|
Viewing Angle |
85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
Optical bonding PCAP Touch |
|
Surface Hardness |
≥7H |
|
Power |
|
|
Power Input |
1 x M12 Waterproof Connector AC/DC 12V/5A , 60W Optional |
|
Power Protection |
1 x M12 Waterproof Connector For 12V~24V DC |
|
Power Consumption |
≦35W |
|
Physical |
|
|
Material |
Inox / SUS304 / SUS316 ( Optional ) |
|
Mounting |

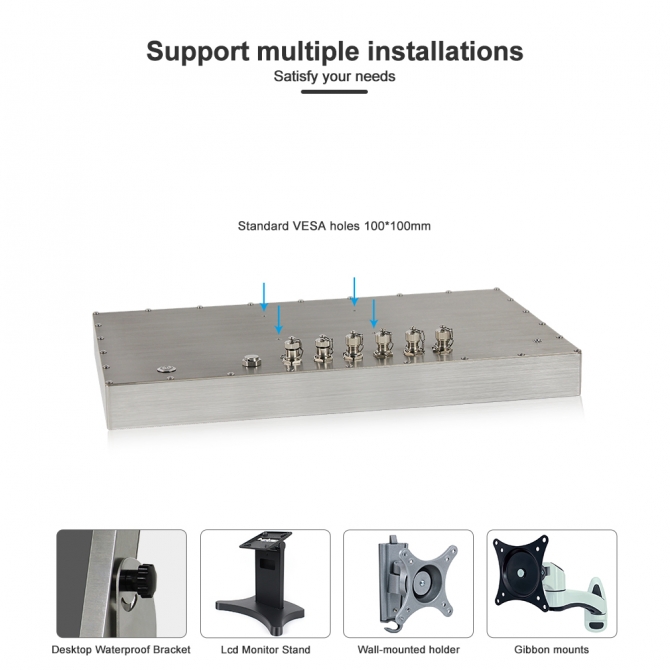

Stand / Wall / VESA / Yoke |
|
Dimension (W x H x D） |
464 x 285 x 45 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Weight (Net) |
8.8 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP66 / IP69K |
|
EMC |
CE , FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
WPC-J185WDC |
18.5" FHD LCD / Resolution 1920 x 1080 / Intel® Celeron J1900 2.0GHz / Optical bonding PCAP Touch / 2 x LAN / 1 x COM / 2 x USB / DC IN 12V~24V |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
mSATA 128G SSD / ( 256G / 500G / 1TB SSD) |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G |
Full Netcom 4G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
18.5" Stainless Steel PC |
|
|
1 x 60W PSU (Power Supply) |
|
|
2 x M12 Waterproof LAN Cable 2M |
|
|
2 x M12 Waterproof USB Cable 2M |
|
|
1 x M12 Waterproof COM Cable 2M |
|
