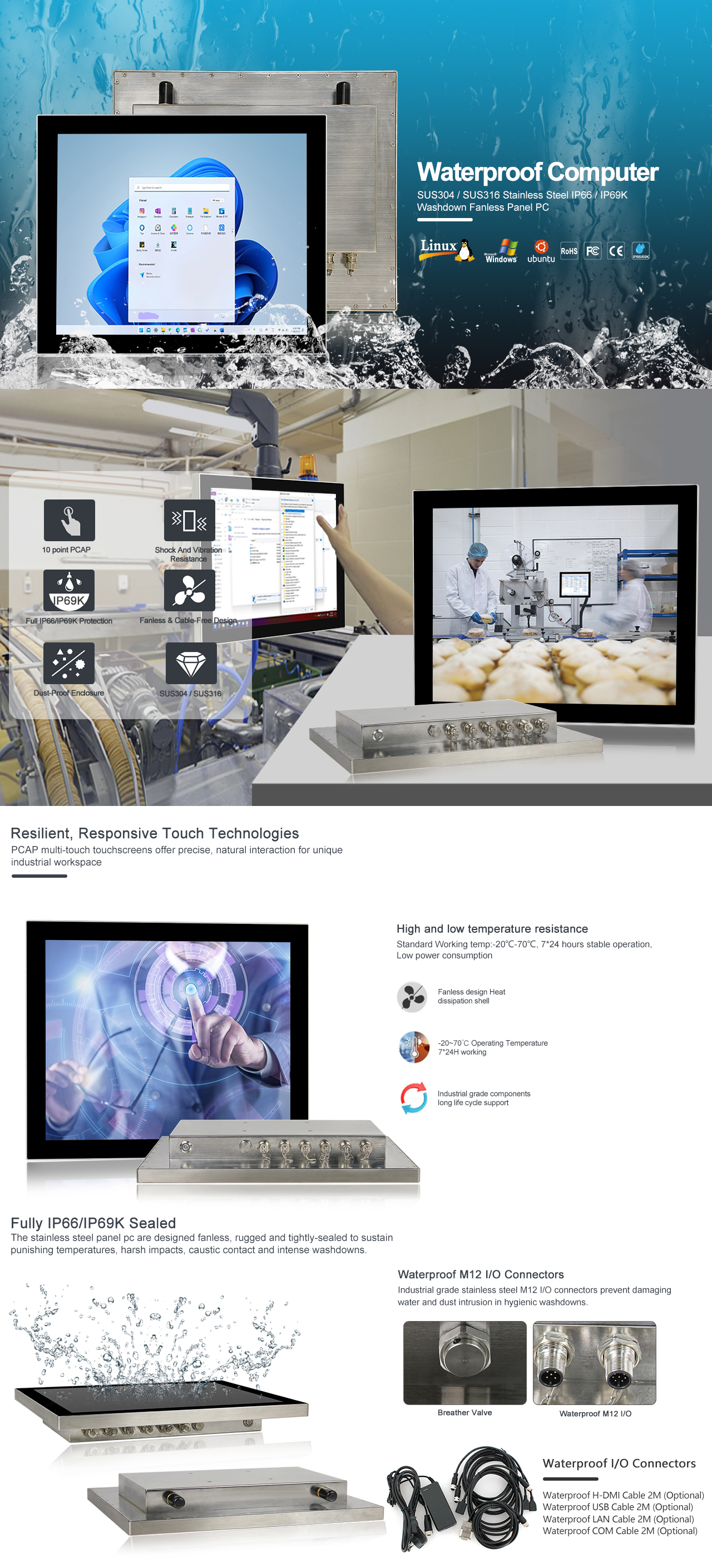

WPC-C017SCC
Product features：
- Industrial-grade 17" SXGA LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- Intel® Celeron® J6412 quad-core 2.0 GHz processor
- 1 x DDR4 SDRAM, max.32GB, 1 x M.2 2280 NVMe or SATA SSD
- M12 I/O ports：2 x LAN / 2 x USB / 1 x COM
- Full device IP66 / IP69K with Stainless Steel SUS304/316 construction
- Support TPM2.0 hardware security
- Wide Operating Temperature -20°C to 70°C
- 9V to 36V DC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
1.5MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
1 x DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 1TB SSD) |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Network |
Intel® 226-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM |
TPM 2.0 |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
I/O |
|
|
VIDEO |
1 x H-DMI ( Optional ) |
|
LAN |
2 x M12 Waterproof Giga LAN RJ45 Connector |
|
USB |
2 x M12 Waterproof Connector For USB2.0 |
|
COM |
1 x M12 Waterproof Connector For COM |
|
Wireless Network |
Optional （WiFi / Bluetooth / 4G / 5G ) |
|
Other I/O Interface |
1 x Power Switch |
|
Expansion |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT) |
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
|
1*M.2 ( Key-M, 2280, NVMe/ SATA, SSD ) |
|
|
SIM Socket |
1x SIM Socket |
|
Display |
|
|
LCD Size |
17" ( 5:4 ) |
|
Resolution |
1280 x 1024 |
|
Brightness (cd/m²) |
400 cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
10 point PCAP |
|
Surface Hardness |
≥7H |
|
Power |
|
|
Power Input |
1 x M12 Waterproof Connector For 9V~36V DC |
|
Power Protection |
OVP (Over Voltage Protection) | OCP (Over Current Protection) | RPP（Reverse Polarity Protection） |
|
Power Consumption |
≦35W |
|
Physical |
|
|
Material |
Inox / SUS304 / SUS316 |
|
Mounting |
Stand / Wall / VESA / Yoke |
|
Dimension (W x H x D） |
393 x 325 x 55 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Weight (Net) |
7.8 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP66 / IP69K |
|
EMC |
CE , FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
WPC-C017SCC |
17" SXGA LCD / Resolution 1280 x 1024 / Intel Celeron J6412 2.0GHz / PCAP Touch / 2 x LAN / 1 x COM / 2 x USB / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
M.2 SSD 120G (250G/500G/1TB SSD) |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
17" Waterproof Industrial PC |
|
|
1 x 60W PSU (Power Supply) |
|
|
2 x M12 Waterproof LAN Cable 2M |
|
|
2 x M12 Waterproof USB Cable 2M |
|
|
1 x M12 Waterproof COM Cable 2M |
|
|
1 x CD-ROM |
|
