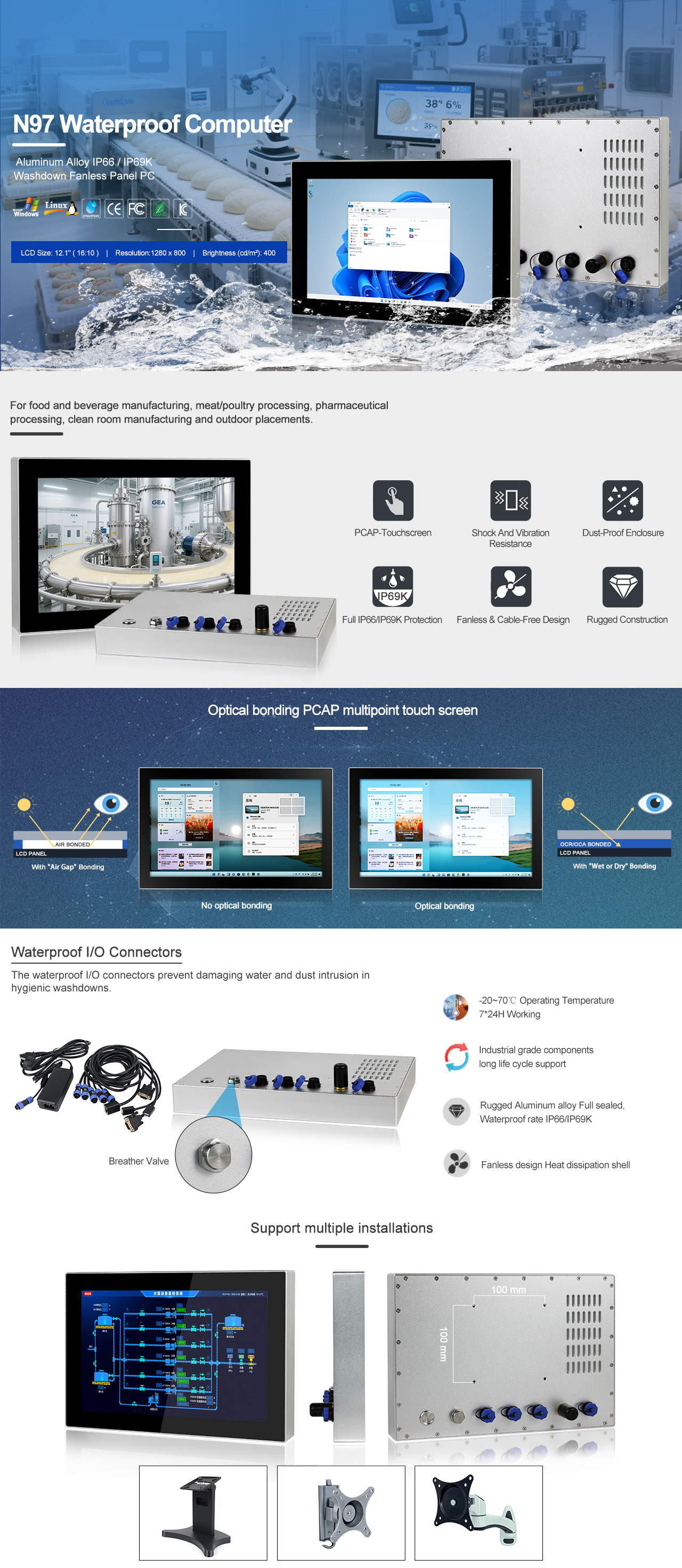

WPC-N012WAC
Product features：
- Industrial-grade 12.1" WXGA LCD panel with 50k backlight lifetime
- Optical bonding PCAP multipoint touch screen
- Intel® Alder Lake-N N97 Quad-core 2.0GHz processor
- 1 x DDR5 SDRAM, max.32GB, 1 x M.2 2280 NVMe or SATA SSD
- SP13 I/O ports：2 x LAN / 2 x USB / 1 x COM
- Full device IP66 / IP69K with Strong aluminum alloy casing
- Support TPM2.0 hardware security
- Wide Operating Temperature -20°C to 70°C
- 9V to 36V DC Wide Range Power Input，Supporting OVP / OCP / RPP
|
System |
|
|
CPU |
Intel® Alder Lake-N N97 Quad-core 2.0GHz , TDP 12W |
|
L2 Cache |
2.0 MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
1 x DDR5L 4800MHz 8GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) |
|
Graphics |
Intel® UHD Graphics |
|
Network |
Intel® 226-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM |
TPM 2.0 |
|
Operation System |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
I/O |
|
|
VIDEO |
1 x H-DMI ( Optional ) |
|
LAN |
2 x SP13 Waterproof Giga LAN RJ45 Connector |
|
USB |
2 x SP13 Waterproof Connector For USB2.0 |
|
COM |
1 x SP13 Waterproof Connector For COM |
|
Wireless Network |
Optional （WiFi / Bluetooth / 4G / 5G ) |
|
Other I/O Interface |
1 x Power Switch |
|
Expansion |
|
|
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT) |
|
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|
|
1*M.2 ( Key-M, 2280, PCIe x4 NVMe/ SATA, SSD ) |
|
|
SIM Socket |
1x SIM Socket |
|
Display |
|
|
LCD Size |
12.1" ( 16:10 ) |
|
Resolution |
1280 x 800 |
|
Brightness (cd/m²) |
400 cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
Optical bonding PCAP Touch |
|
Surface Hardness |
≥7H |
|
Power |
|
|
Power Input |
1 x SP13 Waterproof Connector For 9V~36V DC |
|
Power Mode |
Support AT, ATX Mode |
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
Power Consumption |
≦45W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Mounting |
Stand / Wall / VESA |
|
Dimension (W x H x D） |
312 x 214 x 40 mm |
|
Packing Size |
450 x 170 x 350 mm |
|
Weight (Net) |
3.5 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP66 / IP69K |
|
EMC |
CE , FCC，Class A，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
WPC-N012WAC |
12.1" WXGA LCD / Resolution 1280 x 800 / Intel® Alder Lake-N N97 2.0GHz / Optical bonding PCAP touch / 2 x LAN / 1 x COM / 2 x USB / TPM2.0 / DC 9V~36V (OVP / OCP / RPP) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR5L 4800MHz 8GB, MAX 32GB |
|
Harddisk |
M.2 120G SSD (250G/500G/2TB SSD) |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
12.1" Waterproof Industrial PC |
|
|
1 x 60W PSU (Power Supply) |
|
|
2 x M12 Waterproof LAN Cable 2M |
|
|
2 x M12 Waterproof USB Cable 2M |
|
|
1 x M12 Waterproof COM Cable 2M |
|
