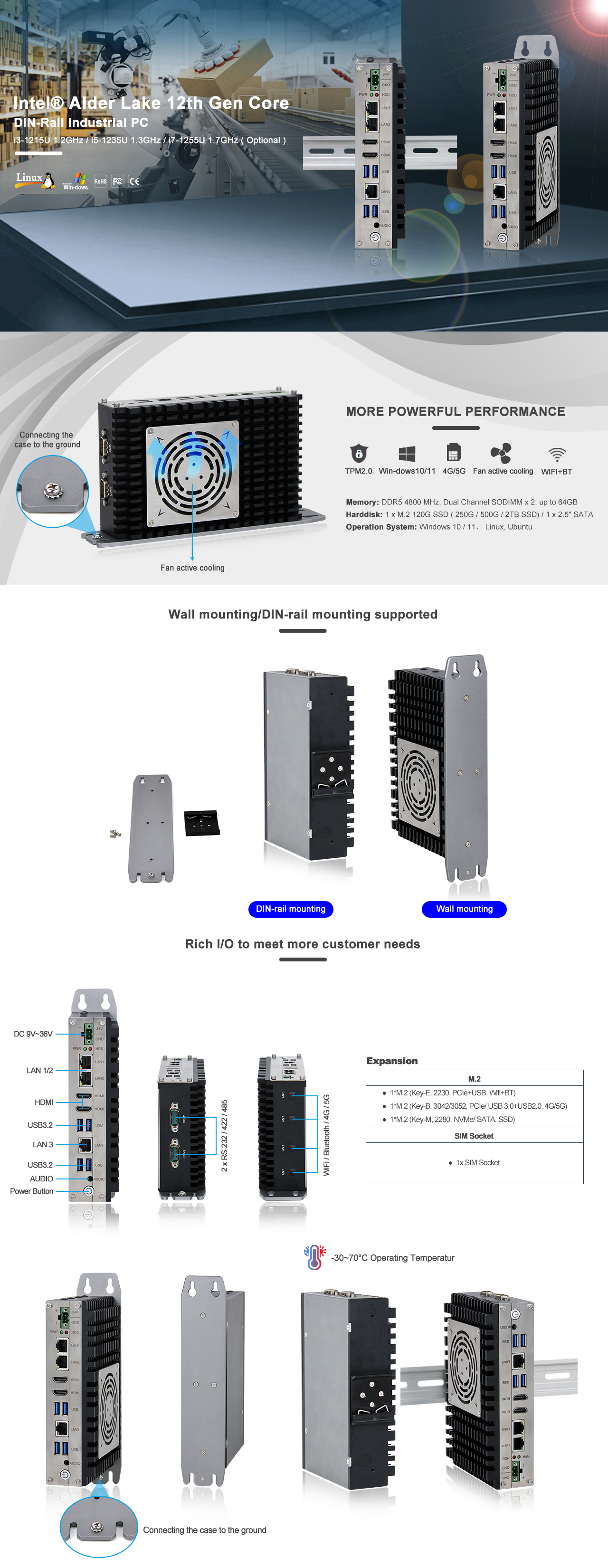

    EFIC-2012D

    Product features:

    • 12th Gen Intel® Alder Lake Core™ i3 / i5 / i7 processor
    • 2 x DDR5 4800MHz SODIMM, MAX 64GB
    • 1 x 2.5 SATA HDD, 1*M.2 2280, NVMe or SATA SSD
    • 1 x M2.0 ( 2230, Wifi+BT ),1 x M2.0 ( 3042/3052,4G/5G )
    • Two independent displays:2 x HDMI
    • 3 x Intel® GbE ( Support Wake-on-LAN and PXE )
    • 2 x RS232/422/485, RS485 support automatic flow control
    • Supports TPM2.0 security encryption and vPro technology
    • Wide Operating Temperature -30°C to 70°C
    • 9V to 36VDC Wide Range Power Input,Supporting OVP / OCP / RPP
    CERoHSFCTPM
    Visit:813
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    12th Gen Intel® Core™ i3-1215U 1.2GHz

    12th Gen Intel® Core™ i5-1235U 1.3GHz

    12th Gen Intel® Core™ i7-1255U 1.7GHz

    TDP

    15W

    15W

    15W

    L2 Cache

    10MB

    12MB

    12MB

    Graphics

    Intel® UHD Graphics

    Intel® Iris® Xe Graphics

    Intel® Iris® Xe Graphics

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR5 4800 MHz, Dual Channel SODIMM x 2, up to 64GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Network

    Intel® 226-V / I219-LM GbE LAN

    Audio

    Realtek ALC897 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    2 x HD-MI

    Ethernet

    2 x 2.5GbE / 1x 1GbE

    USB

    4 x USB 3.2 Gen2

    COM

    2 x RS-232 / 422 / 485 ( Adjustable through BIOS )

    Audio

    1x Audio_out & Mic_in

    Expansion

    M.2

    1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

    1*M.2 ( Key-B, 3042/3052, PCIe / USB 3.0+USB2.0, 4G/5G )

    1*M.2 ( Key-M, 2280, NVMe/ SATA, SSD )

    SIM Socket

    1x SIM Socket

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Mode

    Support AT, ATX Mode

    Power Input

    2-pin Terminal Block Connector with Power Input 9~36VDC

    Power Protection

    OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦45W

    Physical

    Material

    Aluminum Alloy Shell

    Color

    Grey / Silver / Black ( optional )

    Mounting

    200 x 25 mm / DIN-Rail

    Product Dimension

    185 x 116 x 50 mm

    Packing Size

    360 x 180 x 320 mm

    Weight (Net)

    1.2 KG

    Environment

    Operating Temperature

    -30~70°C  ( -22~158°F )

    Storage Temperature

    -40~85°C (-40~185°F)

    Relative Humidity

    10% to 95% (non-condensing)

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    EFIC-20123D

    12th Gen Intel Core i3-1215U 1.2GHz / 2 x HDMI / 3 x LAN / 4 x USB3.2 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP )

    EFIC-20125D

    12th Gen Intel Core i5-1235U 1.3GHz / 2 x HDMI / 3 x LAN / 4 x USB3.2 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP )

    EFIC-20127D

    12th Gen Intel Core i7-1255U 1.7GHz / 2 x HDMI / 3 x LAN / 4 x USB3.2 / 2 x COM / TPM2.0 / DC 9V~36V ( OVP / OCP / RPP )



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR5 4800MHz SO-DIMM x 2.64GB

    Harddisk

    M.2 SSD:(120G/250G/500G/2TB)1 x 2.5"SATA

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    1 x Standard product

    1 x 60W PSU (Power Supply)

    1 x 35mm DIN-Rail buckle

    1 x Wall mount

    1 x CD-ROM
