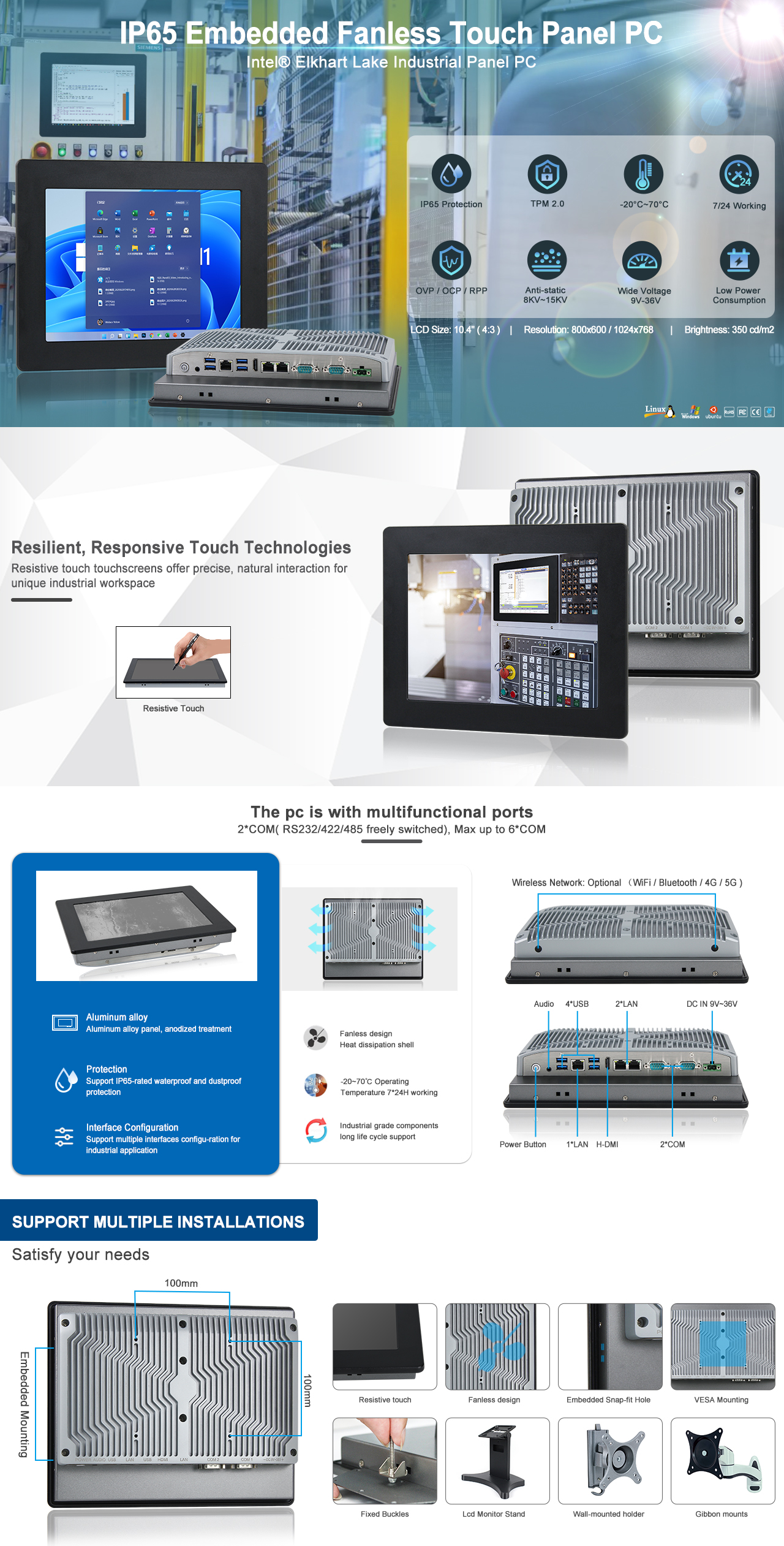

PPC-C010SAR
Product features：
- Aluminium Alloy Front Panel, Front IP65 Waterproof, Resistive touch
- 10.4" TFT LCD, Resolution 800x600 / 1024x768 Optional
- Intel® Elkhart Lake Celeron J6412 2.0GHz Fanless Industrial Panel PC
- 3xLAN, 2xCOM, Static Electricity & S Surge Protection
- Built-in TPM2.0 for Hardware-based Security
- DC 9V~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
|
System |
|
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
1.5MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Network |
Intel® 225-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM |
TPM 2.0 |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 10 / 11， Linux, Ubuntu |
|
I/O |
|
|
VIDEO |
1 x H-DMI |
|
LAN |
3 x LAN （10/100/1000/2500 Mbps） |
|
USB |
4 x USB 3.0 |
|
COM |
2 x RS-232 / 422 / 485 |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
Optional（WiFi / Bluetooth / 4G / 5G ) |
|
Display |
|
|
LCD Size |
10.4" ( 4:3 ) |
|
Resolution |
800 x 600 / 1024 x 768 Optional |
|
Brightness (cd/m²) |
350 cd/m2 |
|
Contrast Ratio |
800:1 |
|
Backlight MTBF |
30000 Hr (min.) |
|
Viewing Angle |
80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 Wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A ，60W |
|
Power Mode |
Support AT, ATX Mode |
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
|
Power Protection |
OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity Protection） |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum alloy panel, anodized treatment |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D） |
275 x 222 x 58 mm |
|
Cut-out Size |
263 x 210 mm |
|
Packing Size |
360 x 180 x 320 mm |
|
Weight (Net) |
2.5 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
Front Panel IP65 |
|
EMC |
CE, FCC，ROHS |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
PPC-C010SAR |
10.4”TFT LCD / Resolution 800x600 / 1024x768(Optional) / Intel Celeron J6412 2.0GHz / Resistive Touch / 3x Intel®225-V GbE LAN / 2xCOM（RS232/422/485）4xUSB3.0 / TPM2.0 / DC IN 9V~36V(OVP / OCP / RPP) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
DDR4L 3200MHz SO-DIMM.4GB/32GB capacity |
|
Harddisk |
M.2/2.5" SATA SSD：120G/250G/500G/2TB optional |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
10.4”Industrial Panel PC |
|
|
1x CD-ROM |
|
|
8x Embedded Buckles |
|
|
1x Power Adaptor |
|
