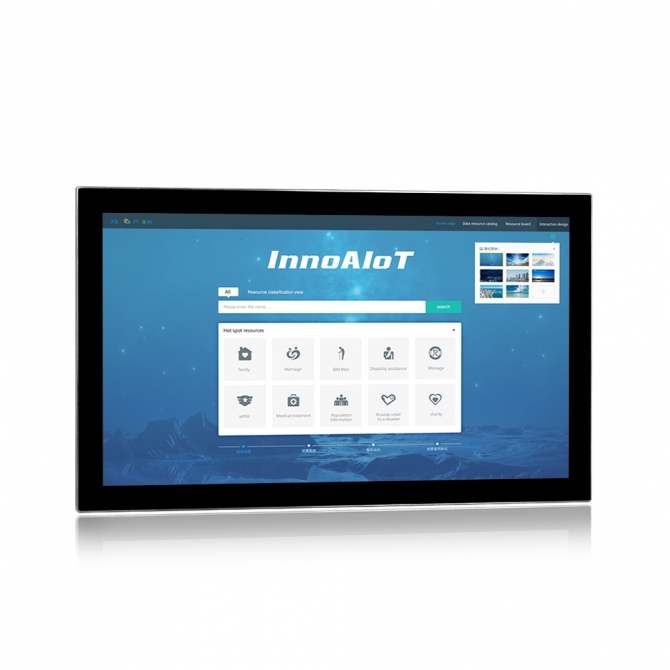

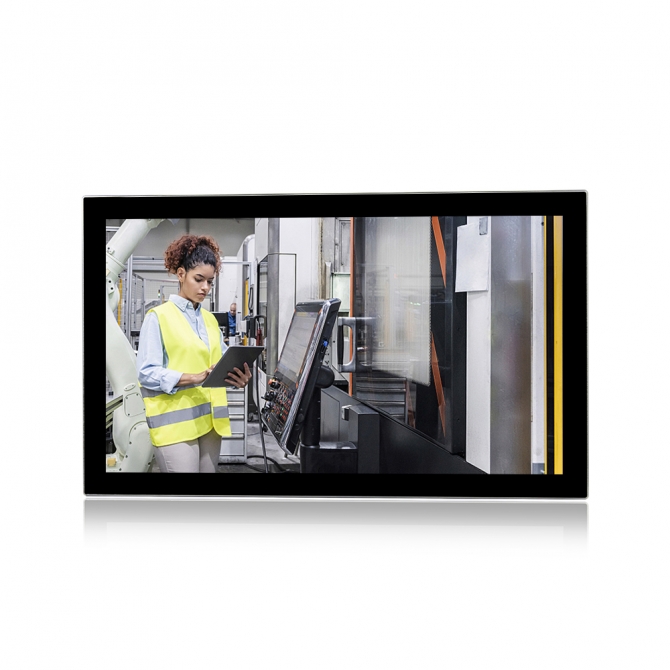

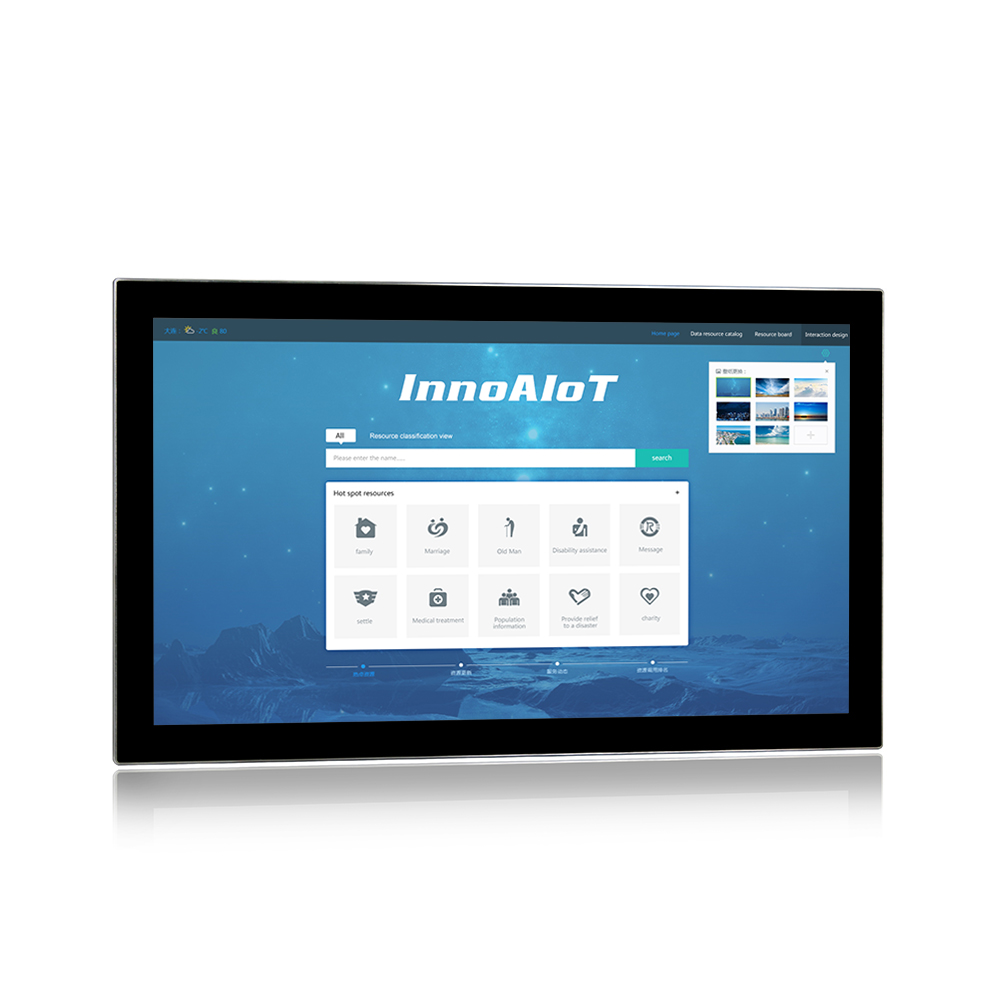

    PM-H024WCC

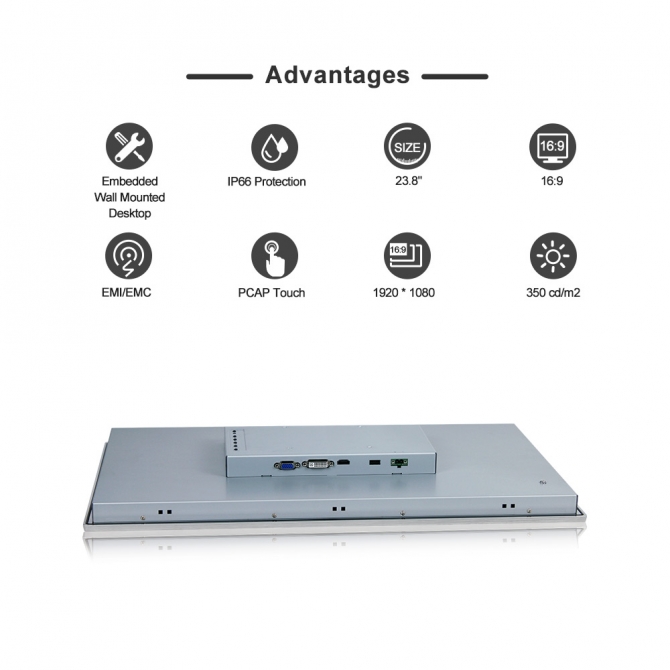

    Product features:

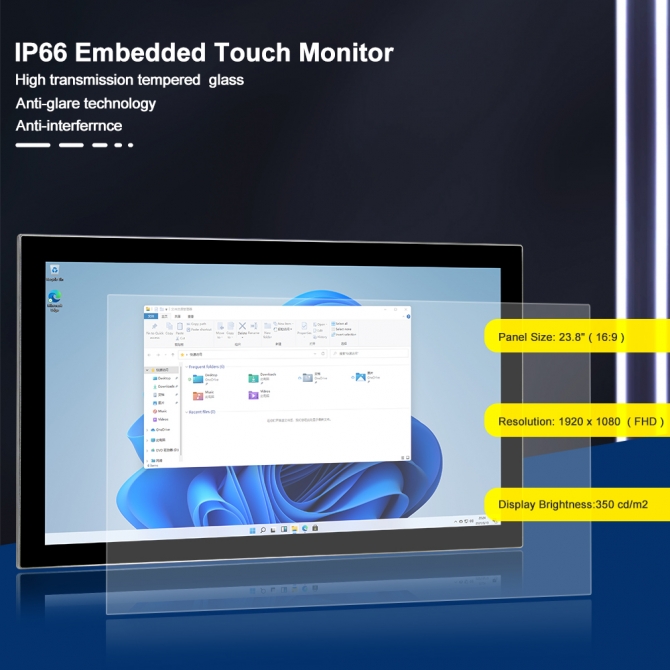

    • Industrial-grade 23.8" FHD LCD panel with 30k backlight lifetime

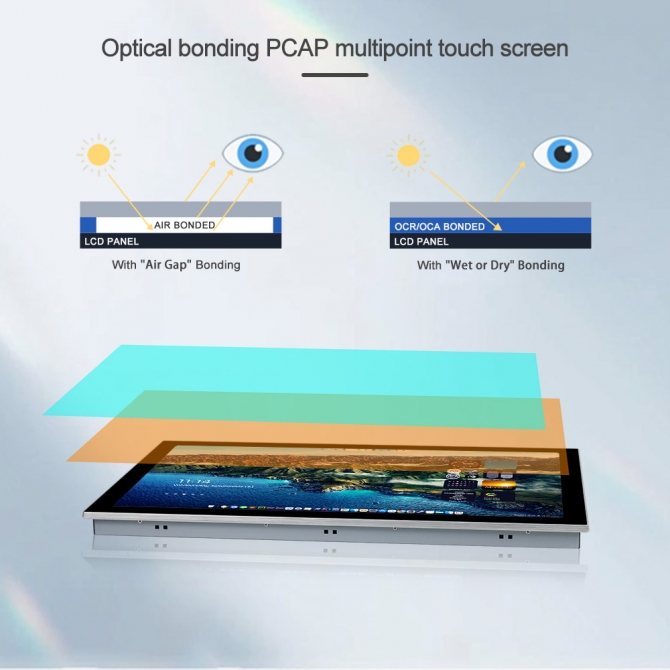

    • True-flat touchscreen with multi-touch projected capacitive control

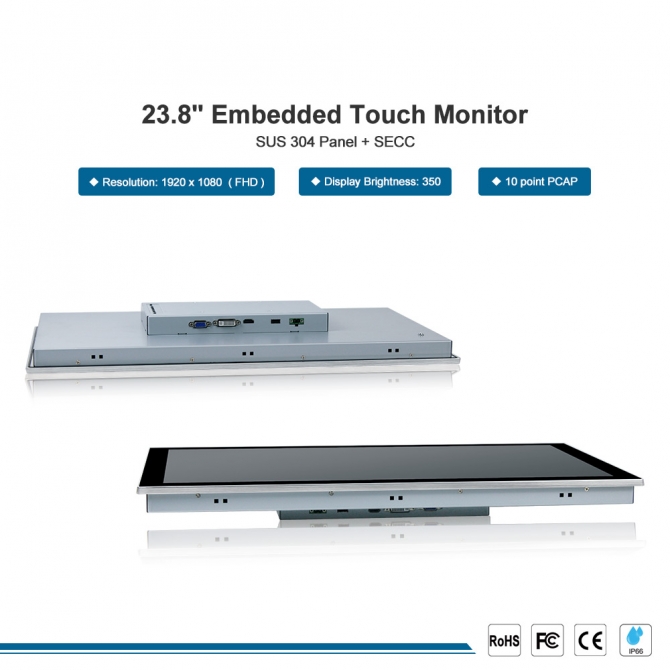

    • IP66 grade SUS304 stainless steel front panel
    • Video Input Interfaces:1 x VGA / 1 x HDMI / 1 x DVI
    • Support USB Interfaces for Touch Function

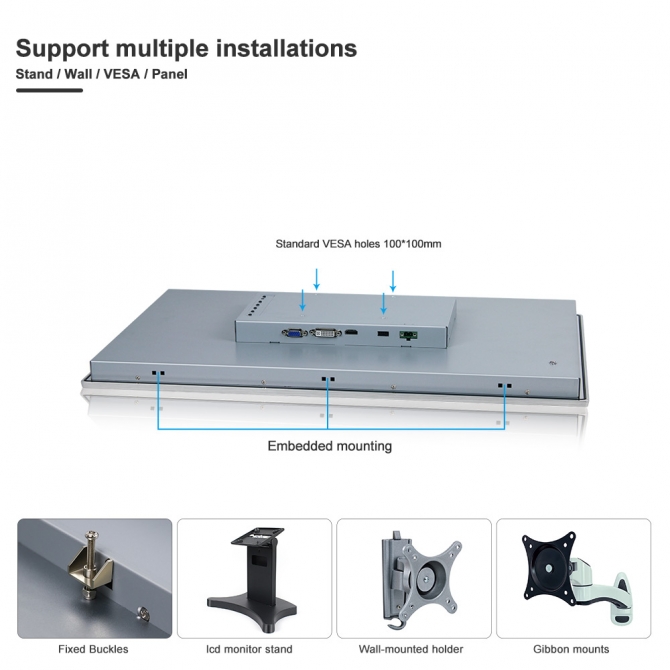

    • Supports embedded / VESA 100mm x 100mm mounting holes
    • Wide Operating Temperature -20°C to 70°C
    • 12V to 24V DC Wide Range Power Input
    CERoHSFCIP66
    Visit:1211
    Description Specifications Dimension drawing Order Info Driver download

    Display

    Panel Size

    23.8" ( 16:9 )

    Resolution

    1920 x 1080 (FHD)

    Display Brightness

    350 cd/m2

    Contrast Ratio

    1000:1

    Backlight Lifetime

    30000 Hr (min.)

    Viewing Angle

    88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

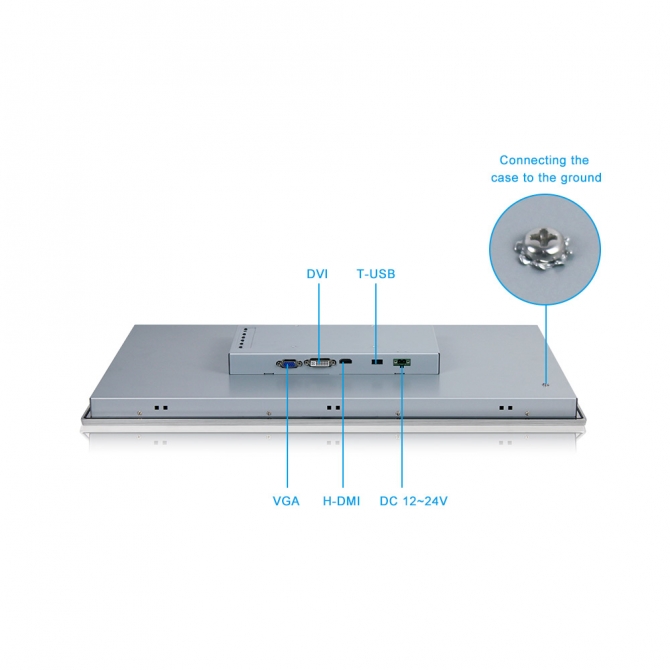

    I / O

    VGA

    1 x VGA

    H-DMI

    1 x H-DMI

    DVI

    1 x DVI

    USB

    1 x Touch  USB

    Other I/O Interface

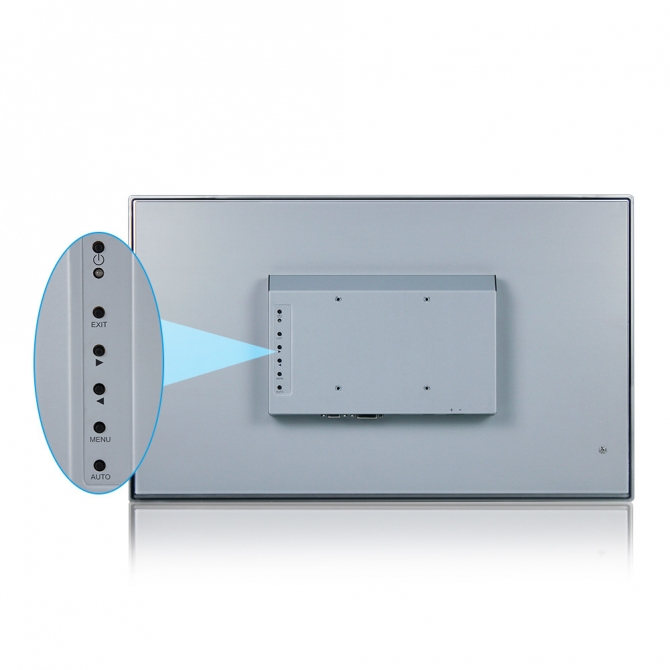

    1 x OSD Control Key

    Power

    Power Adapter

    1 x Optional AC/DC 12V/4A , 48W

    Power Input

    2-pin Terminal Block Connector with Power Input 12~24VDC

    Power Consumption

    ≦30W

    Physical

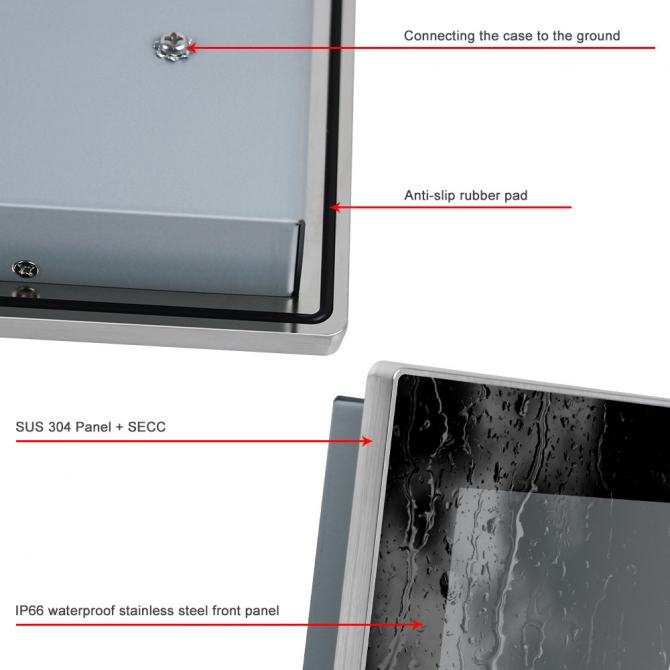

    Material

    Inox / SUS 304 Panel + SECC

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    585 x 355 x 58 mm

    Cut-out Size

    568 x 337 mm

    Packing Size

    730 x 200 x 530 mm

    Weight (Net)

    5.8 kg

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    Front Panel IP66

    EMC

    CE, FCC,Class A, ROHS, IEC / EN 62368-1

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PM-H024WCC

    23.8” FHD LED / Resolution 1920 x 1080 / PCAP Touch / 1 x VGA / 1 x H-DMI / 1 x DVI / 1 x T-USB / DC IN 12~24V



    PACKING LIST

    1 x 23.8Embedded Touch Monitor

    1 x 1.5m H-DMI Cable

    1.5m T-USB Cable

    10 Embedded Buckles

    1 x Power Adaptor
