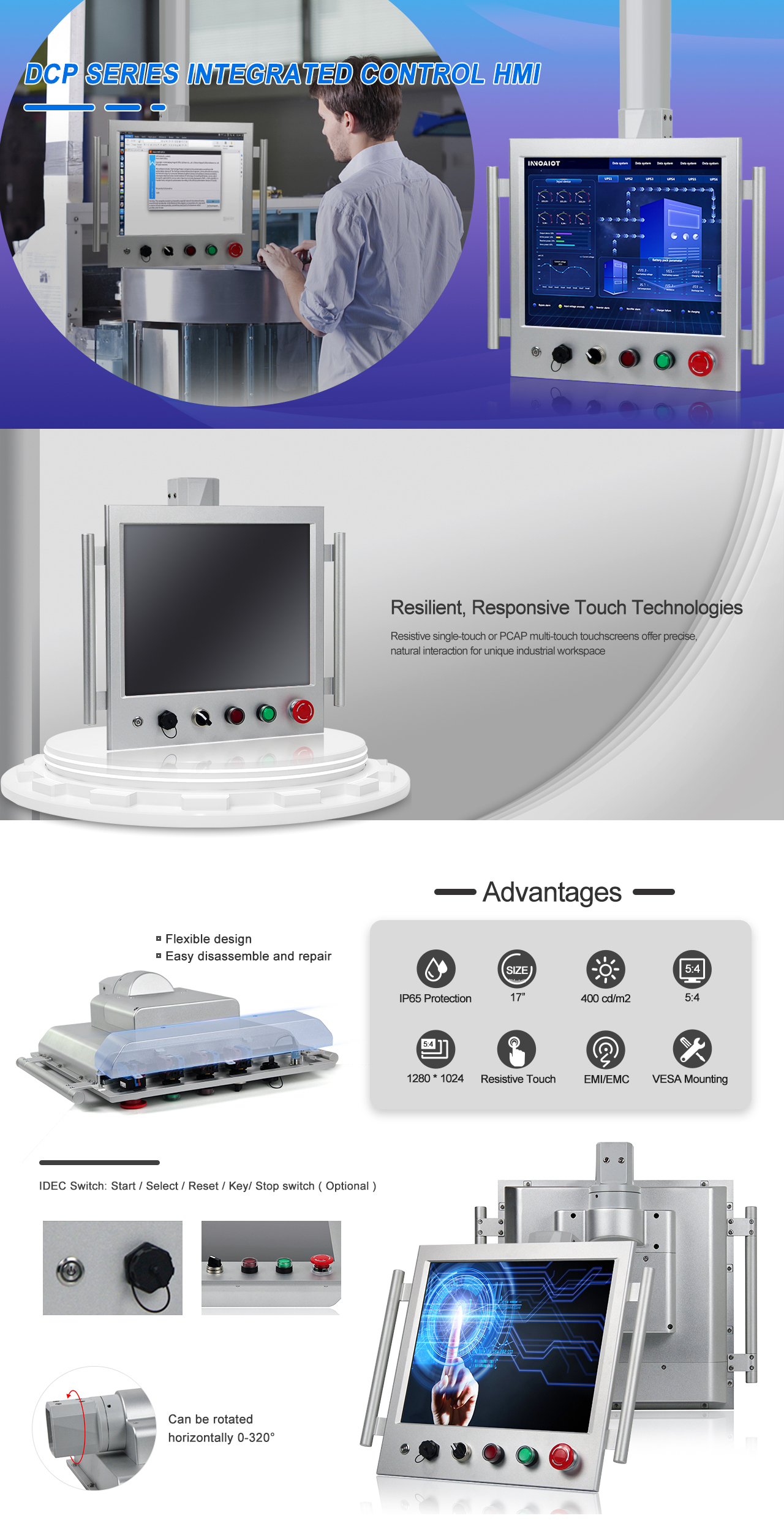

    DCP-P017SAR

    Product features:

    • Industrial-grade 17" SXGA LCD panel with 50k backlight lifetime
    • High precision 5-wires resistive touch, EETI controller
    • 6th Gen Intel® Skylake Core™ i5-6200U dual-core 2.3GHz processor
    • 1 x DDR4 SDRAM, max.32GB, 1 x mSATA SSD
    • 2 x Intel® 211 1GbE, support WoL and PXE
    • Support IDEC series button expansion and 44-60 Series Cantilever Assembly
    • Wide Operating Temperature -20°C to 70°C
    • 12V to 24V DC Wide Range Power Input
    CERoHSFCIP65
    Visit:1377
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Bay Trail Core i5-6200U Dual Core 2.5GHz , TDP 15W

    L2 Cache

    3.0MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 2133MHz 4GB, Up to 16GB

    Harddisk

    1 x mSATA 128G SSD / ( 256G / 500G / ITB SSD) optional

    Graphics

    Intel HD Graphics 520

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 7 / 8 / 10Linux, Ubuntu

     I / O

    VIDEO

    1 x VGA / 1 x H-DMI

    LAN

    2 x LAN 10/100/1000/2500 Mbps

    USB

    1 x USB2.0 / 2 x USB3.0

    Button

    IDEC φ22  Select / Green / Red / Stop Button ( optional )

    Bracket kit

    44- 60 Light Cantilever Accessories

    Other I/O Interface

    Optional (WiFi / Bluetooth / 4G / )

    Display

    LCD Size

    17" ( 5:4 )

    Resolution

    1280 x 1024

    Brightness (cd/m²)

    400

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 hrs

    Viewing Angle

    80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    5 Wire Resistive touch

    Surface Hardness

    ≥3H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    DC 12V~24V

    Power Consumption

    ≦45W

    Physical

    Material

    Aluminum Alloy Shell

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    400 x 390 x 155 mm

    Packing Size

    500 x 180 x 450 mm

    Weight (Net)

    12.0 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP65

    EMC

    CE, FCC,KC ,Class A,ROHS ,IEC / EN 62368-1

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    DCP-P017SAR

    17" SXGA LCD / Resolution: 1280 x 1024 / Intel® Bay Trail Core i5-6200U 2.5GHz / Resistive touch / 1 x VGA / 1 x H-DMI / 2 x LAN / 1 x USB2.0 / 2 x USB3.0  / IDEC φ22  Select / Green / Red / Stop Button ( Optional ) / 12V to 24V DC Wide Range Power Input



    CONFIGURATION

    DESCRIPTION

    Memory

    RAM:DDR4L 2133MHz 4GB, Up to 16GB

    Harddisk

    mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional

    WiFi

    Wi-Fi Bluetooth Combo Module

    4G/5G

    Full Netcom 4G/5G/LTE module



    PACKING LIST

    1 x Standard product

    1 x 60W PSU (Power Supply)

    1 x CD-ROM

    1 x Power cable & plug
