    EFIC-60005B

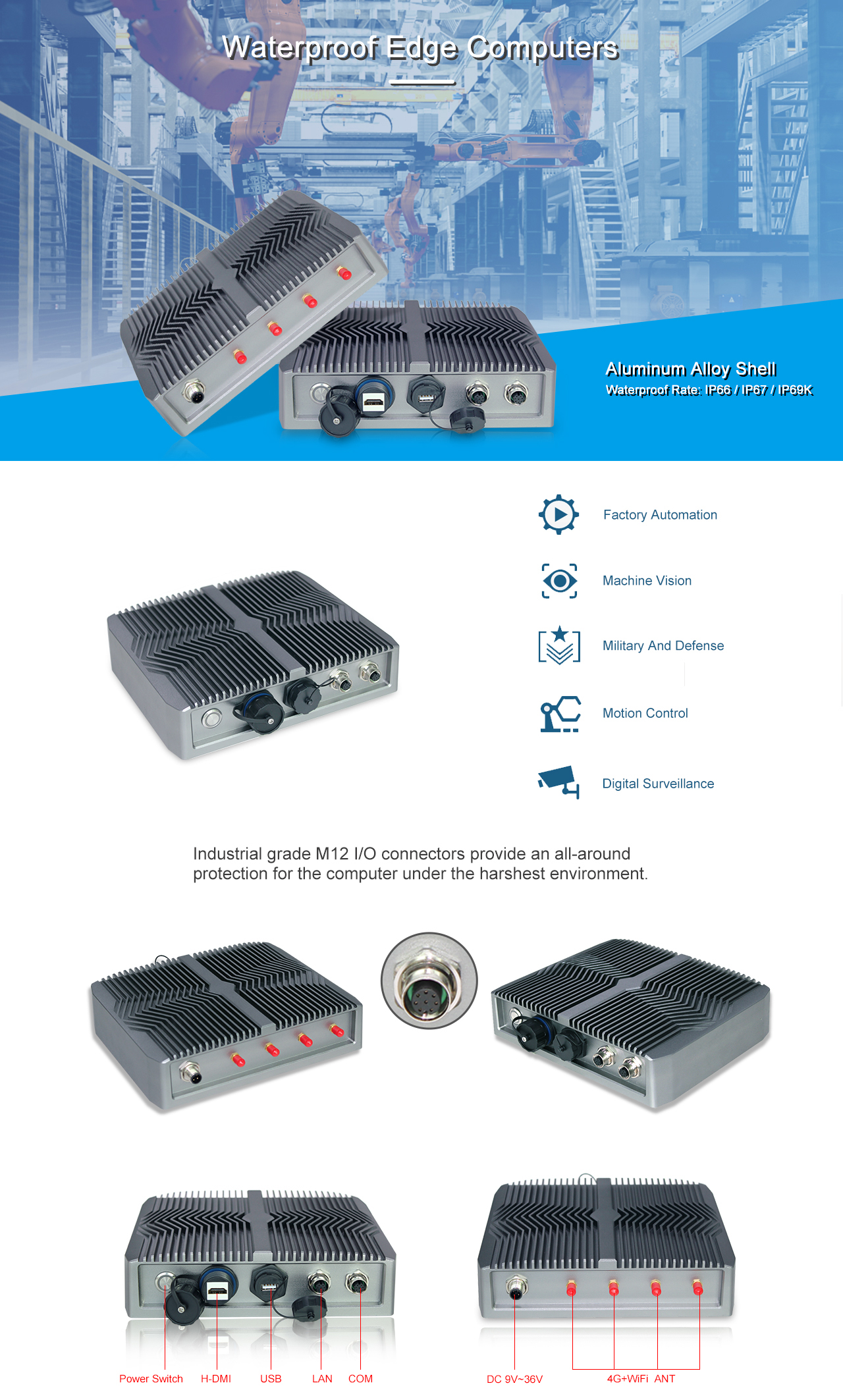

    Product features:

    • Intel 8th Core i5-8265U 1.6GHz Fanless Configuration
    • 2*Gigabit Ethernet Ports, Wake on LAN and PXE Supported
    • 2*COM (RS232/RS485 Optional), 1*WiFi / Bluetooth / 4G Optional
    • Work temperature -20 ° C to 70 ° C
    • DC 9V~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
    CERoHSFCTPMIP69K
    Visit:1128
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® 8th Gen Core i5-8265U Quad-core 1.6GHz , TDP 25W

    L2 Cache

    6MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 2400MHz 4GB, MAX 64GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel® HD Graphics 620

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I / O

    VIDEO

    1 x HD-MI

    LAN

    1 x M12 Waterproof Giga LAN RJ45 Connector

    USB

    2 x M12 Waterproof Connector For USB2.0

    COM

    1 x M12 Waterproof Connector For COM

    Wireless Network

    WiFi + Bluetooth / 4G / 5G ( Optional )

    Other I/O Interface

    1 x Power Switch

    Power

    Power Adapter

    1 x Optional AC/DC 12V/4A , 48W

    Power Input

    2-pin M12 Power Input 9~36VDC

    Power Consumption

    ≦45W

    Physical

    Material

    Aluminum Alloy Shell

    Color

    Grey / Silver / Black ( optional )

    Product Dimension

    220 x 180 x 55 mm

    Mounting

    232 x 90 mm / 100 x 100 mm

    Packing Size

    360 x 180 x 320 mm

    Weight (Net)

    1.5 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP67 / IP69K

    EMC

    CE, FCC,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    EFIC-60005B

    Intel Core i5-8265U 1.6GHz / VGA / H-DMI / LAN /  USB2.0 / COM / GPIO(Optional) / TPM2.0 / DC 9V~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2400MHz SO-DIMM.4GB/64GB

    Harddisk

    M.2/SATA  SSD120G/250G/500G/2TB

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x Embedded Fanless Industrial PC

    1x CD-ROM

    1x Fixed Bracket

    1x Power Adaptor
