    EFIC-60005A

    Product features:

    • 8th Gen Intel® Whiskey Lake Core™ i5-8265U processor
    • 2 x DDR4 3200MHz SODIMM, MAX 64GB,1 x 2.5 SATA SSD
    • 1 x M2.0 (2230, Wifi+BT),1 x M.2 2280 ( NVMe or SATA ) SSD
    • M12 I/O ports:1 x HDMI / 2 x LAN / 2 x USB / 1 x COM

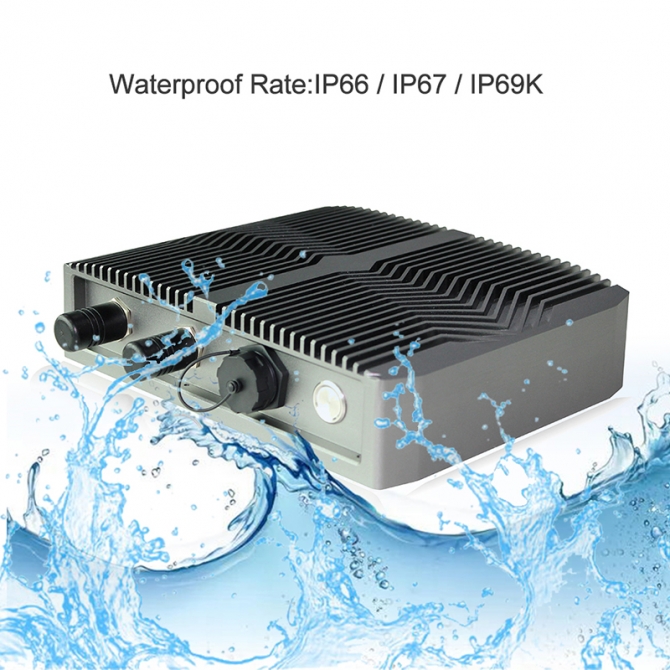

    • Aluminum alloy casing,Full system IP67 level dustproof & waterproof
    • Support TPM2.0 hardware security
    • Wide Operating Temperature -30°C to 70°C
    • 9V to 36V DC Wide Range Power Input,Supporting OVP / OCP / RPP
    CERoHSFCTPMIP67
    Visit:1220
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    8th Gen Intel® Whiskey Lake Core™ i5-8265U 1.6GHz

    L2 Cache

    6MB

    TDP

    25W

    System Chipset

    Integrated with Intel® SoC

    Memory

    2 x DDR4L 2400MHz 4GB, Up to 64GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel HD Graphics 620

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI

    Ethernet

    2 x M12 Waterproof Giga LAN RJ45 Connector

    USB

    2 x M12 Waterproof Connector For USB2.0

    COM

    1 x M12 Waterproof Connector For COM

    Wireless Network

    Optional (WiFi / Bluetooth / 4G / 5G )

    Other I/O Interface

    1 x Power Switch

    Expansion

    mPCe

    1 x mPCe ( PCIe+USB, Wifi+BT+4G)

    SIM Socket

    1x SIM Socket

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    2-Pin M12 Power Input 9~36VDC,OVP / OCP / RPP

    Power Consumption

    ≦45W

    Physical

    Material

    Aluminum Alloy Shell

    Color

    Grey / Silver / Black ( optional )

    Product Dimension

    220 x 180 x 55 mm

    Mounting

    232 x 90 mm / 100 x 100 mm

    Packing Size

    360 x 180 x 320 mm

    Weight (Net)

    1.5 KG

    Environment

    Operating Temperature

    -30~70°C  ( -22~158°F )

    Storage Temperature

    -40~85°C (-40~185°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP67 / IP69K

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    EFIC-60005A

    8th Gen Intel® Whiskey Lake Core™ i5-8265U 1.6GHz / 1 x HDMI / 2 x LAN / 2 x USB2.0 / 1 x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2400MHz 4GB, Up to 64GB

    Harddisk

    M.2 120G SSD ( 250G / 500G / 2TB SSD) 1 x 2.5" SATA

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    1 x Standard product

    1 x 60W PSU (Power Supply)

    1 x Fixed support

    2 x M12 Waterproof USB Cable 2M

    1 x M12 Waterproof COM Cable 2M

    2 x M12 Waterproof LAN Cable 2M

    1 x Waterproof HDMI Cable 2M

    1 x CD-ROM
