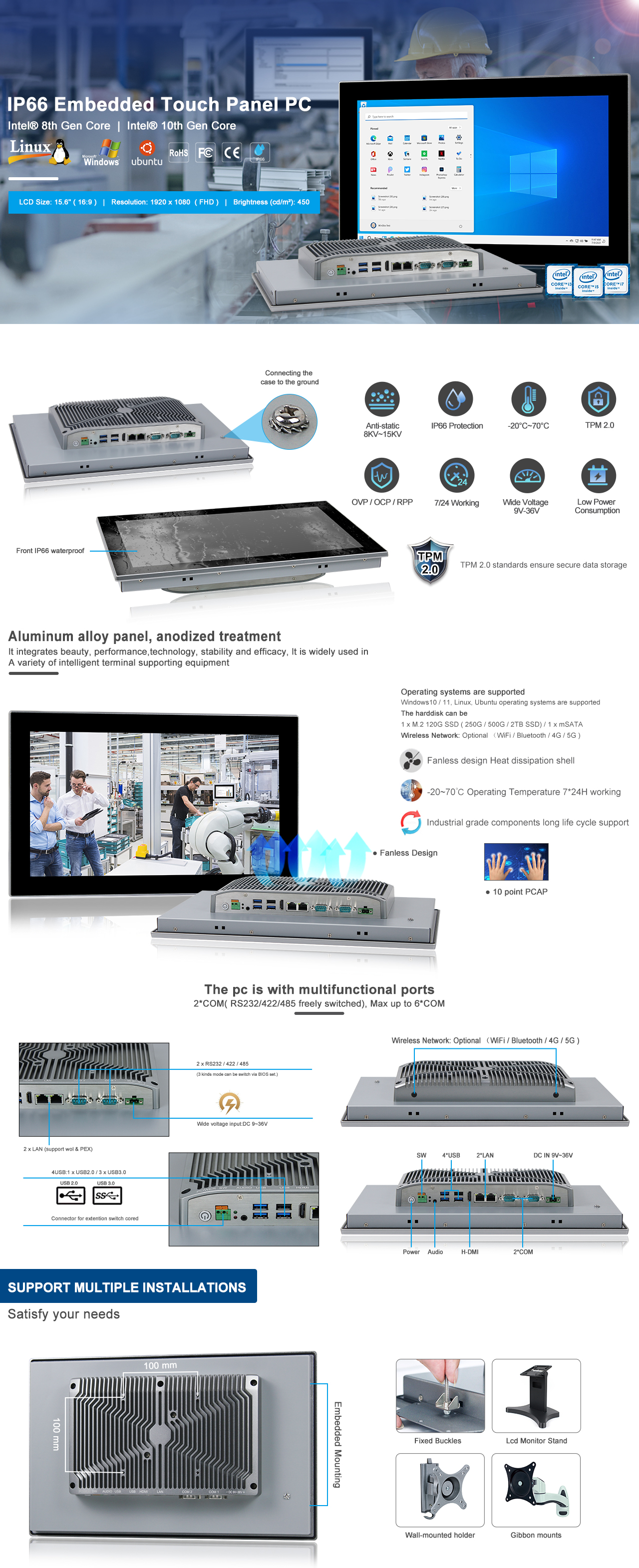

PPC-156WAC
Product features:
- Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- IP66 grade aluminum alloy front panel
- 8th / 10th Gen Intel® Whiskey Lake Core™ i3 / i5 / i7 Processor
- 2 x DDR4 SDRAM, max.64GB, 1 x M.2 2280 / 1 x mSATA SSD
- 2 x Intel® 211 1GbE Ethernet, support WoL and PXE
- 2 x RS232/422/485, RS485 support automatic flow control
- Support TPM2.0 hardware security
- Supports embedded / VESA 100mm x 100mm mounting holes
- 9V to 36V DC Wide Range Power Input,Supporting OVP / OCP / RPP
System |
|||
CPU |
8th Gen Intel® Core™ i3-8145U 2.1GHz |
10th Gen Intel® Core™ i5-10210U 1.6GHz |
8th Gen Intel® Core™ i7-8565U 1.8GHz |
TDP |
25W |
25W |
25W |
L3 Cache |
4MB |
6MB |
8MB |
System Chipset |
Integrated with Intel® SoC |
||
Memory |
2 x DDR4L 2400MHz 4GB, Up to 64GB |
||
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x mSATA |
||
Graphics |
Intel HD Graphics 620 |
||
Network |
Intel® I211-AT GbE LAN |
||
Audio |
Realtek ACL897 Audio controller |
||
TPM |
TPM 2.0 |
||
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
||
Operation System |
Windows 10 / 11, Linux, Ubuntu |
||
I/O |
|||
VIDEO |
1 x H-DMI |
||
Ethernet |
2 x LAN (10/100/1000 Mbps) |
||
USB |
3 x USB 3.0 / 1 x USB 2.0 |
||
COM |
2 x RS-232 / 422 / 485 ( Adjustable through BIOS ) |
||
Audio |
1x Audio_out & Mic_in |
||
Wireless Network |
Optional (WiFi / Bluetooth / 4G / 5G ) |
||
Expansion |
|||
M.2 |
1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) |
||
1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) |
|||
SIM Socket |
1x SIM Socket |
||
Display |
|||
LCD Size |
15.6" ( 16:9 ) |
||
Resolution |
1920 x 1080 ( FHD ) |
||
Brightness (cd/m²) |
450 |
||
Contrast Ratio |
1000:1 |
||
Backlight MTBF |
50000 hrs |
||
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
||
Touch screen |
|||
Touch Type |
10 point PCAP |
||
Surface Hardness |
≥7H |
||
Power |
|||
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
||
Power Mode |
Support AT, ATX Mode |
||
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
||
Power Protection |
OVP (Over Voltage Protection) | OCP (Over Current Protection) | RPP(Reverse Polarity Protection) |
||
Power Consumption |
≦45W |
||
Physical |
|||
Material |
Aluminum alloy panel, anodized treatment |
||
Mounting |
Stand / Wall / VESA / Panel |
||
Dimension (W x H x D) |
400 x 250 x 62 mm |
||
Cut-out Size |
386 x 236 mm |
||
Packing Size |
460 x 180 x 400 mm |
||
Weight (Net) |
4.6 KG |
||
Environment |
|||
Operating Temperature |
-20~70°C ( -4~158°F ) |
||
Storage Temperature |
-30~80°C (-22~176°F) |
||
Relative Humidity |
5%~95%@40°C, non-condensing |
||
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
||
IP Level |
Front Panel IP66 |
||
EMC |
CE, FCC,KC ,Class A,ROHS ,IEC / EN 62368-1 |
ORDERING INFORMATION |
|
AVAILABLE MODELS |
DESCRIPTION |
PPC-3156WAC |
15.6" FHD LCD / Resolution 1920 x 1080 (FHD) / 8th Gen Intel® Core™ i3-8145U 2.1GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 /485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
PPC-5156WAC |
15.6" FHD LCD / Resolution 1920 x 1080 (FHD) / 10th Gen Intel® Core™ i5-10210U 1.6GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 /485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
PPC-7156WAC |
15.6" FHD LCD / Resolution 1920 x 1080 (FHD) / 8th Gen Intel® Core™ i7-8565U 1.8GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 / 485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP ) |
|
|
CONFIGURATION |
DESCRIPTION |
Memory |
RAM:DDR4L 2400MHz SO-DIMM.4GB/64GB |
Harddisk |
M.2 / mSATA SSD:120G/250G/500G/2TB |
WiFi |
Wi-Fi Bluetooth Combo Module, with antenna |
4G/5G |
Full Netcom 4G/5G/LTE module, with antenna |
|
|
PACKING LIST |
|
1 x Standard product |
|
1 x CD-ROM |
|
1 x 60W PSU (Power Supply) |
|
1 x Power cable & plug |
|
8 x Panel mount metal clips |
