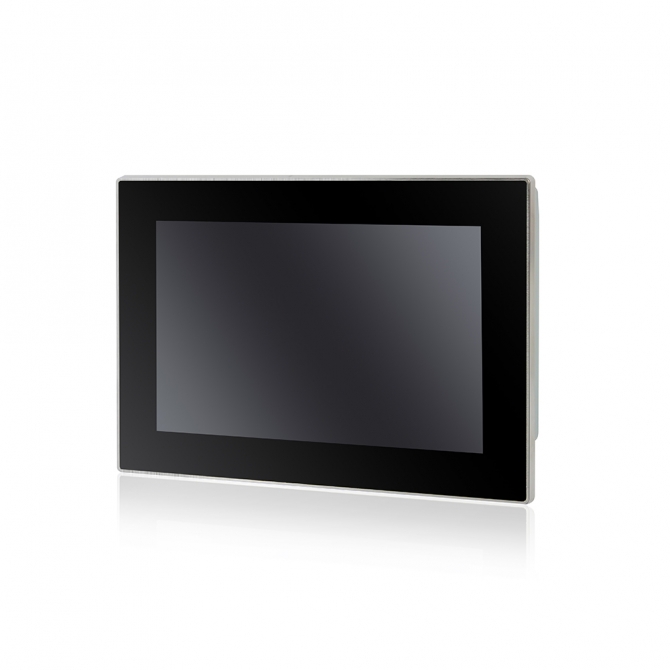

    PPC-3010WCC

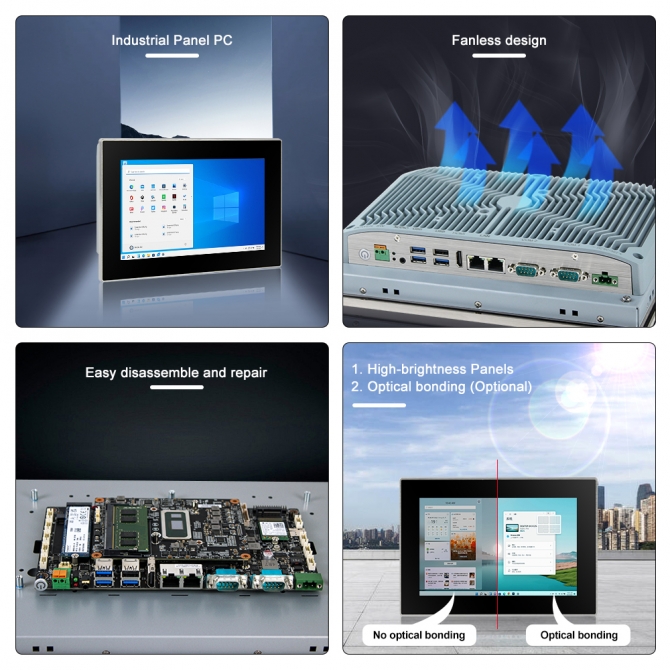

    Product features:

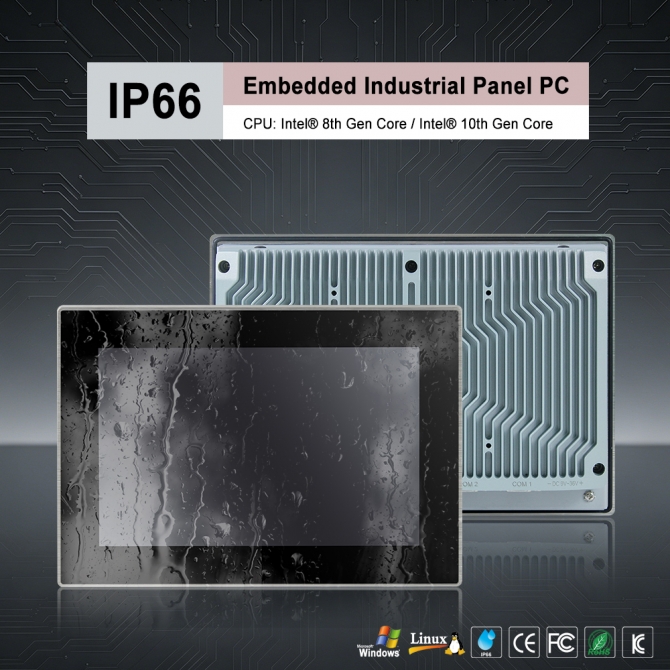

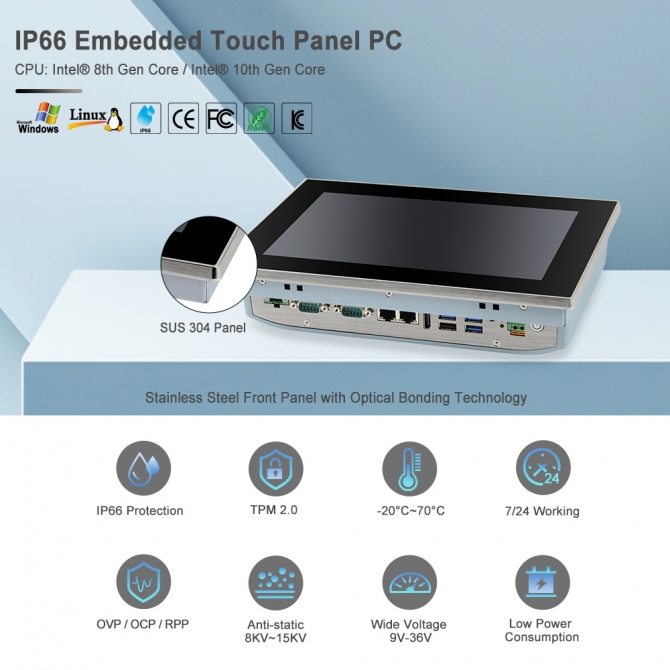

    • Stainless Steel Front Panel, Front IP66 Waterproof

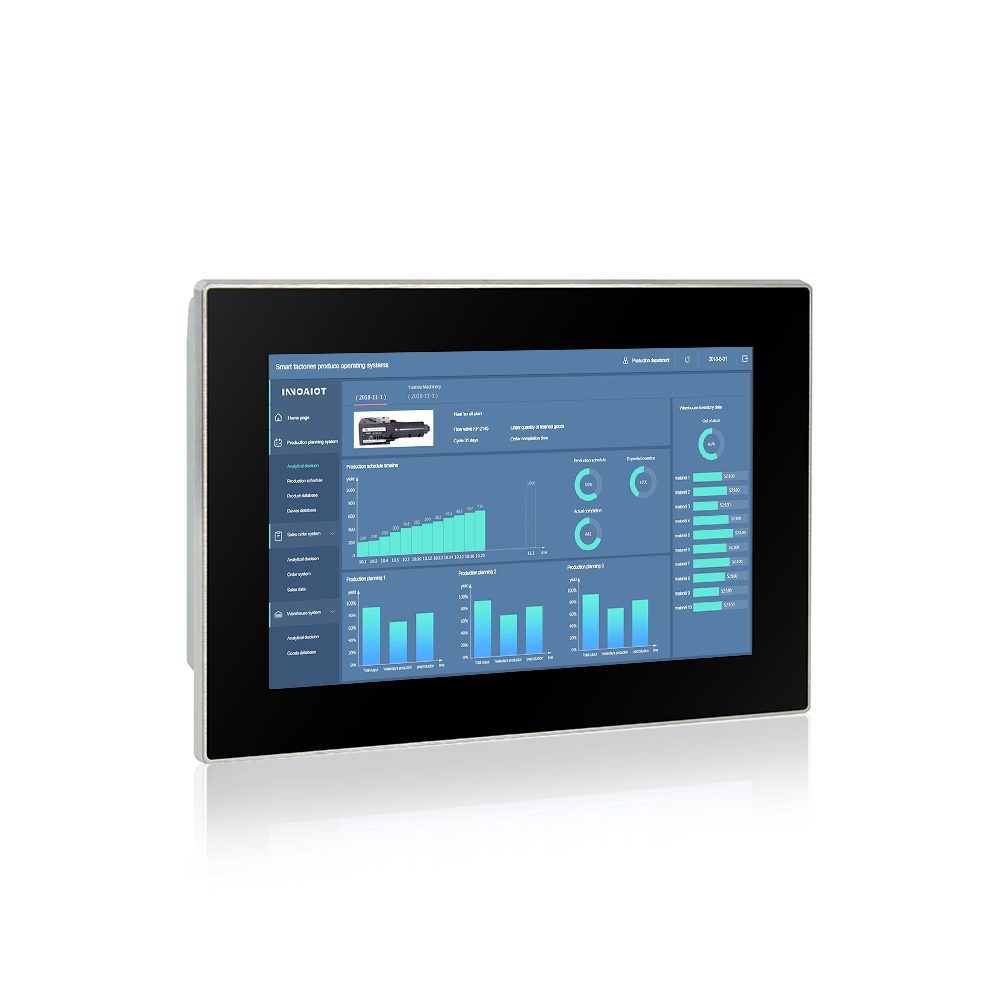

    • 10.1" TFT LCD, Resolution 1280x800, 10 Points Capacitive Touch
    • 8th Gen Intel Core i3-8145U 2.1GHz Industrial Panel PC
    • 2xLAN, 2xCOM, Static Electricity & S Surge Protection
    • Built-in TPM2.0 for Hardware-based Security
    • DC 9~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
    CERoHSFCTPMIP66
    Visit:1497
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel Core i3-8145U 2.1GHz / Intel Core i5-8265U 1.6GHz / Intel Core i7-8565U 1.8GHz

    L2 Cache

    4MB / 6MB / 8MB

    Memory

    DDR4L 2400MHz 4GB, Up to 64GB

    Harddisk

    1 x M.2 120G SSD / ( 250G / 500G / 1TB SSD) Optional

    Graphics

    Intel HD Graphics 620

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    TPM

    TPM 2.0

    Operation System

    Windows 10 / 11, Linux, Ubuntu, Debian

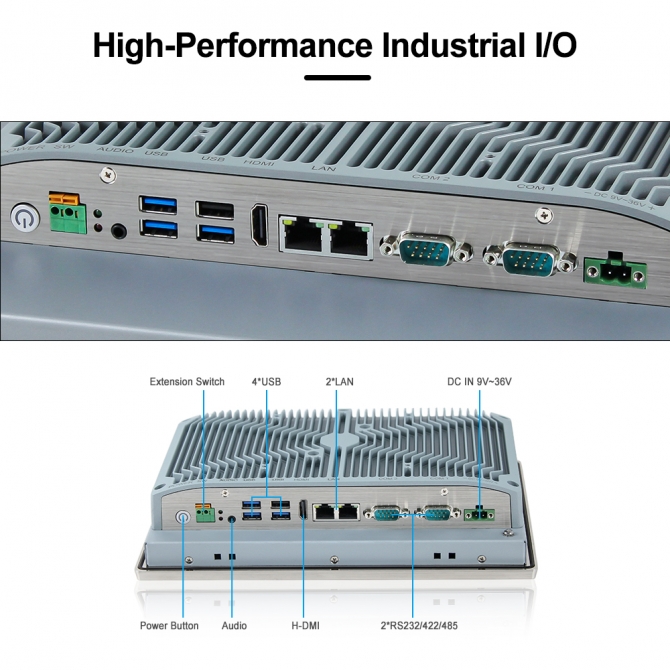

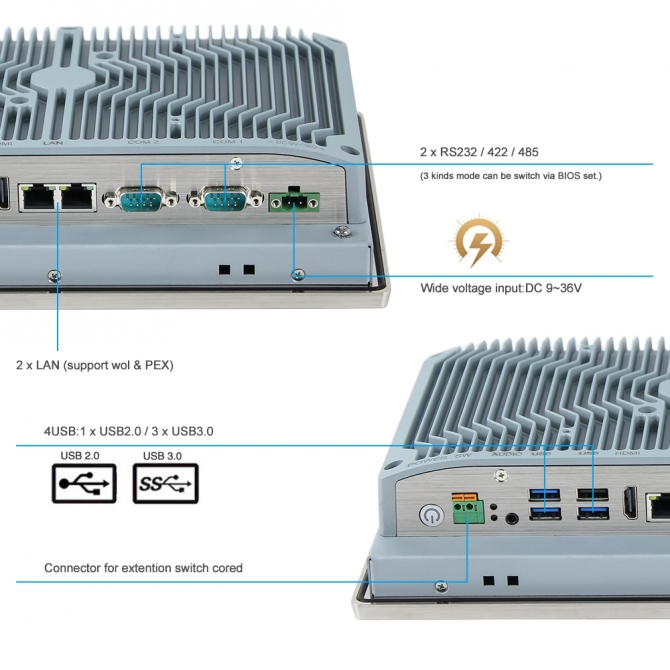

    I / O

    HDMI

    1 x H-DMI

    LAN

    2 x LAN

    USB

    3 x USB 3.0 / 1 x USB 2.0

    COM

    2 x RS-232 / 422 / 485

    Audio

    1 x Audio_out & Mic_in

    Wireless Network

    4G/5G / WiFi / Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    LCD Panel

    Panel Size

    10.1" Led

    Resolution

    1280 x 800

    Aspect Ratio

    16:10

    Display Brightness

    400 cd/m2

    Contrast Ratio

    900:1

    Backlight Lifetime

    30000 Hr (min.)

    Viewing Angle

    85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )

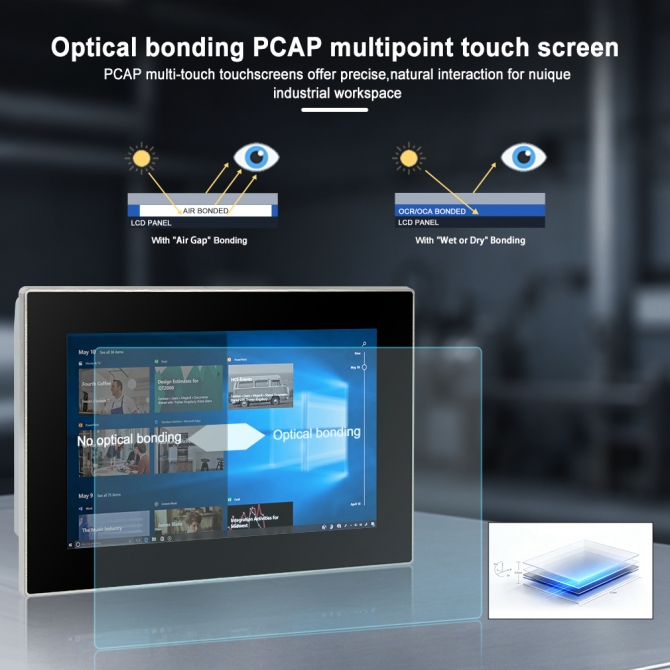

    Touch screen

    Touch Screen Type

    Multi-Touch PCAP

    Transmittance

    >90%

    Response Time

    <5ms

    Surface Hardness

    7H

    Supply Voltage

    5.0V DC

    Touch Life

    ≧ 3000W

    Institutional

    Material

    Stainless Steel Panel+Sheet Metal Painting Treated Back Shell

    Color

    Silver

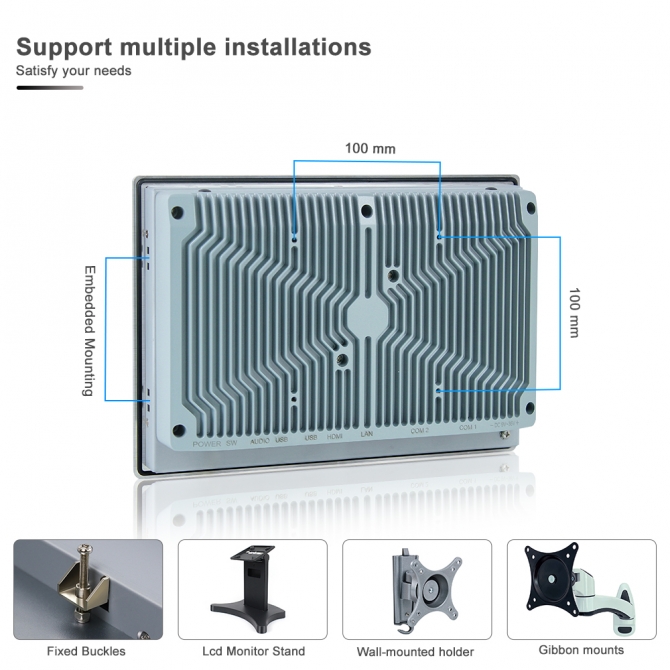

    VESA Mounting

    VESA: 100 x 100 mm

    Waterproof Rate

    IP66

    Product Dimension

    275 x 194 x 58 mm

    Cut-out Size

    263 x 182 mm

    Packing Size

    360 x 180 x 320 mm

    Gross Weight

    4.0 KG

    Power and Environment

    Operating Temperature

    -20~70°C

    Storage Temperature

    -30~80°C(-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC IN 9V~36V

    Power Consumption

    ≦35W

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PPC-3010WCC

    10.1” TFT LCD / Resolution 1280x800 / PCAP Touch / Intel Core i3-8145U 2.1GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB3.0 / 1xUSB2.0 / TPM2.0 / DC 9~36V (OVP / OCP / RPP)

    PPC-5010WCC

    10.1” TFT LCD / Resolution 1280x800 / PCAP Touch / Intel Core i5-8265U 1.6GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB3.0 / 1xUSB2.0 / TPM2.0 / DC 9~36V (OVP / OCP / RPP)

    PPC-7010WCC

    10.1” TFT LCD / Resolution 1280x800 / PCAP Touch / Intel Core i7-8565U 1.8GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485) 3xUSB3.0 / 1xUSB2.0 / TPM2.0 / DC 9~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2400MHz SO-DIMM.4GB/64GB

    Harddisk

    M.2/mSATA SSD64G/120G/250G/500G/1TB

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    1x 10.1” Industrial Panel PC

    1x CD-ROM

    8x Embedded Buckles

    1x Power Adaptor
