    PPC-17SRC

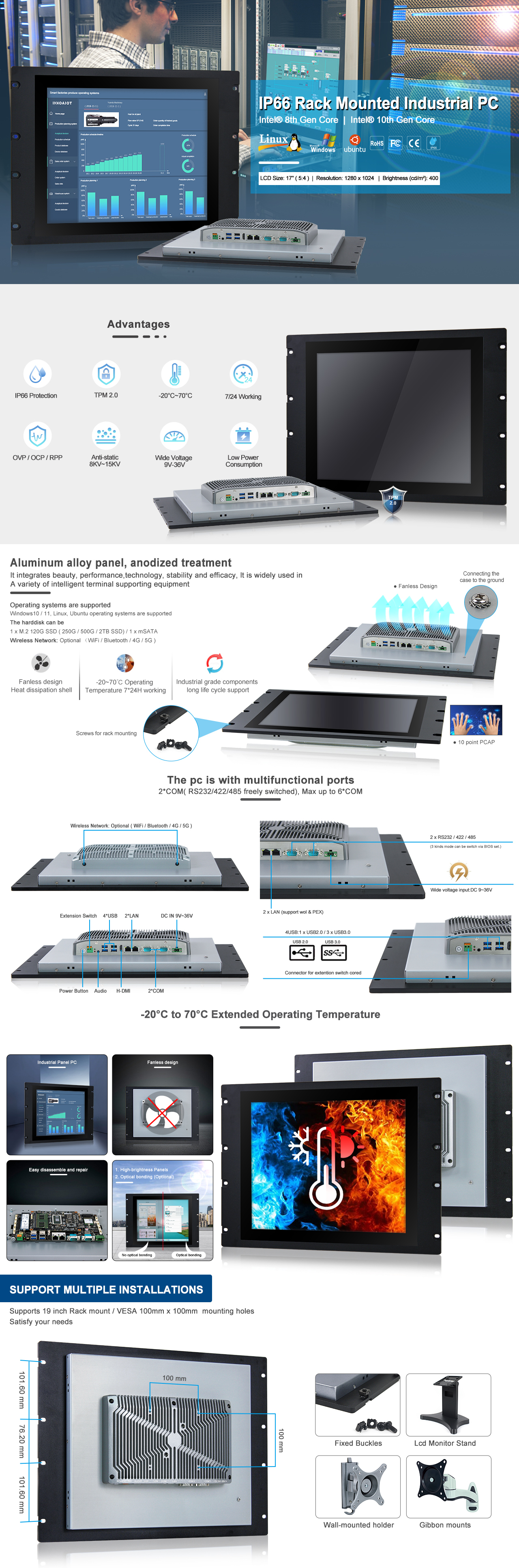

    Product features:

    • Industrial-grade 17" SXGA LCD panel with 50k backlight lifetime
    • True-flat touchscreen with multi-touch projected capacitive control
    • IP66 grade aluminum alloy front panel
    • 8th / 10th Gen Intel® Whiskey Lake Core™ i3 / i5 / i7 Processor
    • 2 x DDR4 SDRAM, max.64GB, 1 x M.2 2280 / 1 x mSATA SSD
    • 2 x Intel® 211 1GbE Ethernet, support WoL and PXE
    • 2 x RS232/422/485, RS485 support automatic flow control
    • Support TPM2.0 hardware security
    • Supports 19 inch Rack mount / VESA 100mm x 100mm mounting holes
    • 9V to 36V DC Wide Range Power Input,Supporting OVP / OCP / RPP
    CERoHSFCTPMIP66
    Visit:1391
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    8th Gen Intel® Core™  i3-8145U 2.1GHz

    10th Gen Intel® Core™ i5-10210U 1.6GHz

    8th Gen Intel® Core™ i7-8565U 1.8GHz

    TDP

    25W

    25W

    25W

    L3 Cache

    4MB

    6MB

    8MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    2 x DDR4L 2400MHz 4GB, Up to 64GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x mSATA

    Graphics

    Intel HD Graphics 620

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL897 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI

    Ethernet

    2 x LAN (10/100/1000 Mbps)

    USB

    3 x USB 3.0 / 1 x USB 2.0

    COM

    2 x RS-232 / 422 / 485 ( Adjustable through BIOS )

    Audio

    1x Audio_out & Mic_in

    Wireless Network

    Optional (WiFi / Bluetooth / 4G / 5G )

    Expansion

    M.2

    1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

    1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

    SIM Socket

    1x SIM Socket

    Display

    LCD Size

    17" ( 5:4 )

    Resolution

    1280 x 1024

    Brightness (cd/m²)

    400

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 hrs

    Viewing Angle

    80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Mode

    Support AT, ATX Mode

    Power Input

    2-pin Terminal Block Connector with Power Input 9~36VDC

    Power Protection

    OVP (Over Voltage Protection)  |  OCP (Over Current Protection)  |  RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦45W

    Physical

    Material

    Aluminum alloy panel, anodized treatment

    Mounting

    19.0-inch Rack Mount / Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    482 x 354 x 62 mm

    Height

    8U

    Packing Size

    500 x 180 x 450 mm

    Weight (Net)

    5.5 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    Front Panel IP66

    EMC

    CE, FCC,KC ,Class A,ROHS ,IEC / EN 62368-1

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PPC-3017SRC

    17" SXGA LCD / Resolution 1280 x 1024 / 8th Gen Intel® Core™ i3-8145U 2.1GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 /485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )

    PPC-5017SRC

    17" SXGA LCD / Resolution 1280 x 1024 / 10th Gen Intel® Core™ i5-10210U 1.6GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 /485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )

    PPC-7017SRC

    17" SXGA LCD / Resolution 1280 x 1024 / 8th Gen Intel® Core™ i7-85651.8GHz / PCAP Touch / 1 x HDMI / 2 x LAN / 2 x COM ( RS232 / 422 / 485 ) / 3 x USB3.0 / 1 x USB2.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2400MHz SO-DIMM.4GB/64GB

    Harddisk

    M.2 / mSATA SSD:120G/250G/500G/2TB

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    1 x Standard product

    1 x CD-ROM

    1 x 60W PSU (Power Supply)

    1 x Power cable & plug

    8 x Panel mount metal clips
