    PPC-J010WCC

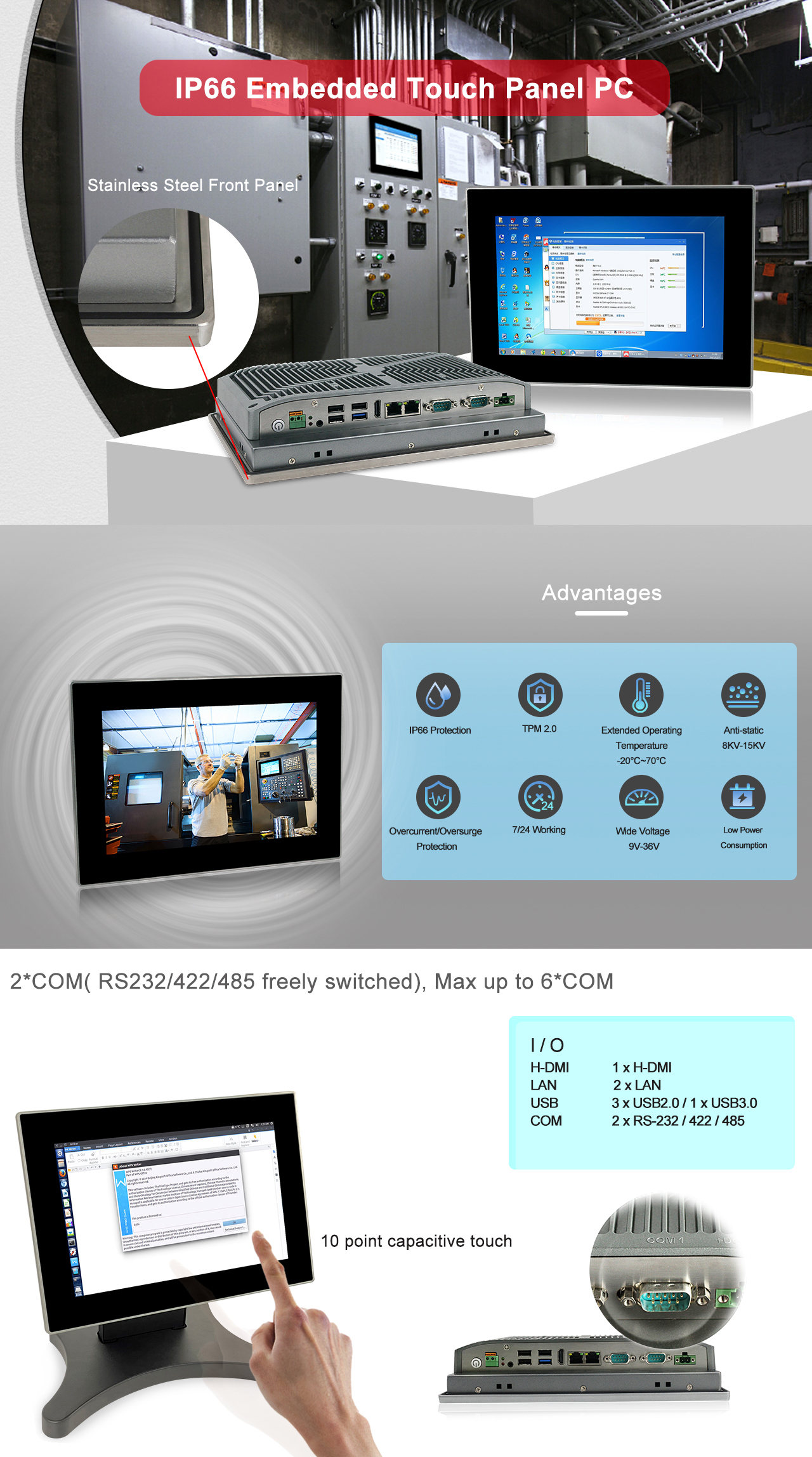

    Product features:

    • Stainless Steel Front Panel, Front IP66 Waterproof
    • 10.1" TFT LCD, Resolution 1280x800, PCAP Touch
    • Intel Celeron J1900 CPU:2.0GHz Industrial Panel PC
    • 2xLAN, 2xCOM, Static Electricity & Surge Protection
    • Built-in TPM2.0 for Hardware-based Security
    • DC 9V~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
    CERoHSFCTPMIP66
    Visit:1501
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W

    L2 Cache

    2MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR3L 1333MHz 4GB, Up to 8GB

    Harddisk

    1 x mSATA 128G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel® HD Graphics

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI

    LAN

    2 x LAN (10/100/1000 Mbps)

    USB

    3 x USB 2.0 / 1 x USB 3.0

    COM

    2 x RS-232 / 422 / 485

    Audio

    1x Audio_out & Mic_in

    Wireless Network

    Optional(WiFi / Bluetooth / 4G )

    Display

    LCD Size

    10.1" ( 16:10 )

    Resolution

    1280 x 800

    Brightness (cd/m²)

    400 cd/m2

    Contrast Ratio

    900:1

    Backlight MTBF

    30000 hrs

    Viewing Angle

    85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A ,60W

    Power Mode

    Support AT, ATX Mode

    Power Input

    2-pin Terminal Block Connector with Power Input 9~36VDC

    Power Protection

    OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦30W

    Physical

    Material

    SUS 304 Panel + SECC

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    275 x 194 x 58 mm

    Cut-out Size

    263 x 182 mm

    Packing Size

    360 x 180 x 320 mm

    Weight (Net)

    2.5 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    Front Panel IP66

    EMC

    CE, FCC,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PPC-J010WCC

    10.1” TFT LCD / Resolution 1280x800 / Capacitive Touch / Intel Celeron J1900 2.0GHz / 2x Intel®I211 GbE LAN / 2xCOM(RS232 / 422 / 485)3xUSB2.0 / 1xUSB3.0 / TPM2.0 / DC 9~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR3L 1333MHz SO-DIMM.4GB/8GB

    Harddisk

    2.5" SATA/mSATA SSD128G SSD(250G/500G/1TB SSD)

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G

    Full Netcom 3G/4G/LTE module, with antenna



    PACKING LIST

    1x 10.1” Industrial Panel PC

    1x  CD-ROM

    8x  Embedded Buckles

    1x  Power Adaptor
