    WPC-J012WCC-M12

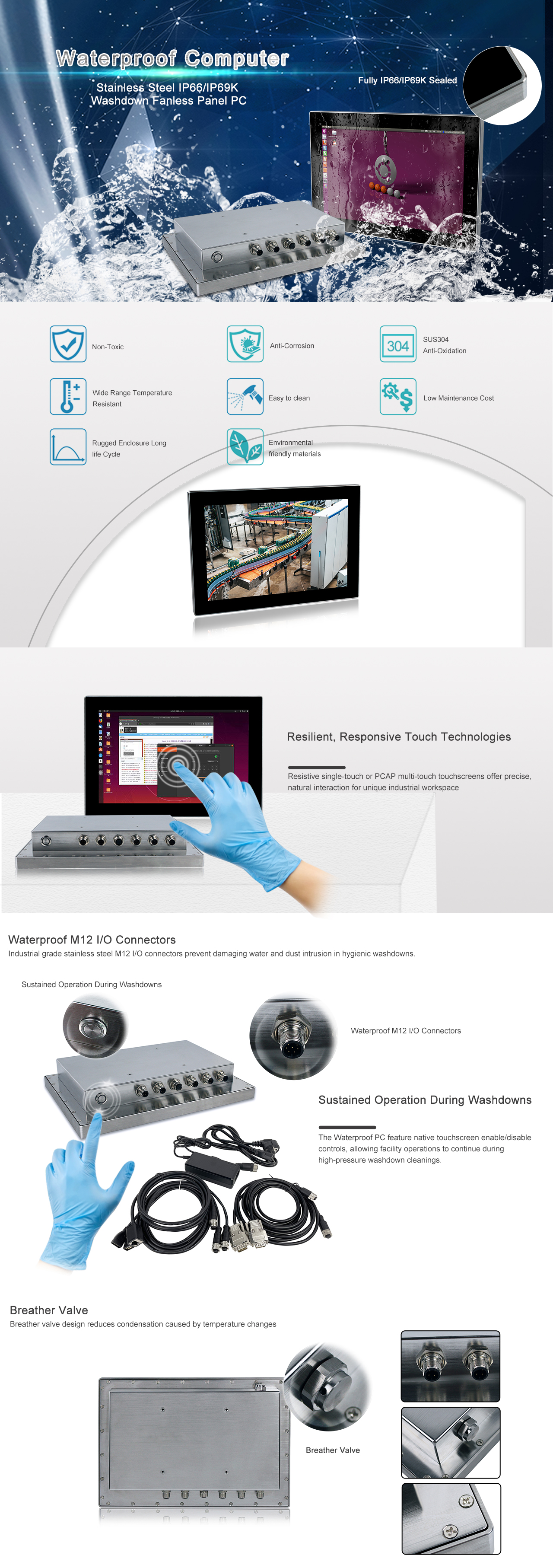

    Product features:

    • Whole Shell SUS304 Stainless Steel, Whole PC IP66/IP69K Waterproof
    • 12.1" TFT LED, Resolution 1280×800, 10 Points PCAP Touch
    • Intel Celeron J1900 2.0GHz, Fanless Waterproof PC
    • M12 I/O Industrial Connectors For Optional: VGA/HDMI/LAN/USB/COM
    • DC 12V~24V Input
    CERoHSFCIP69K
    Visit:1324
    Description Specifications Dimension drawing Order Info Driver download



    System

    CPU

    Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz, TDP 10W

    L2 Cache

    2.0MB

    System Chipset

    Integrated with Intel ® SoC

    Memory

    DDR3L 1333MHz 4GB, Up to 8GB

    Harddisk

    1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional

    Graphics

    Intel HD Graphics

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

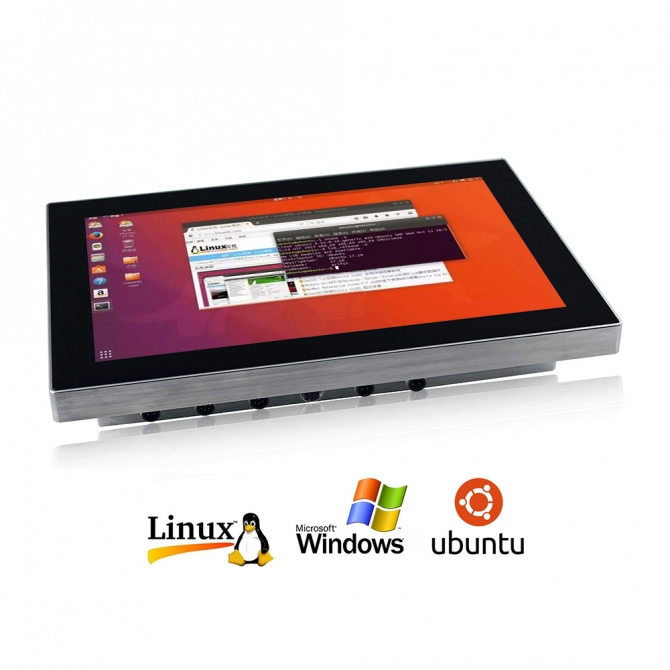

    Operation System

    Windows7 / 8 / 10, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI ( Optional )

    LAN

    2 x LAN ( Optional )

    USB

    4 x USB2.0 ( Optional )

    COM

    2 x RS232 ( Optional )

    Wireless Network

    WiFi + Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    Display

    LCD Size

    12.1" ( 16:10 )

    Resolution

    1280 x 800

    Brightness (cd/m²)

    400 cd/m2

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 hrs

    Viewing Angle

    88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 Point PCAP

    Surface Hardness

    ≥7H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    DC 12V~24V

    Power Consumption

    ≦30W

    Physical

    Material

    lnox / SUS304 / SUS316

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    312 x 214 x 55 mm

    Packing Size

    450 x 170 x 350 mm

    Weight (Net)

    4.0 kg

    Environment

    Operating Temperature

    -20~60°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP69K

    EMC

    CE, FCC,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPC-J012WCC-M12

    12.1” TFT LED / Resolution 1280x800 / lntel Celeron J1900 2.0GH / PCAP  Touch / VGA / HDMI / LAN / COM / USB / DC IN 12V~24V



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR3L 1333MHz SO-DIMM.4GB/8GB

    Harddisk

    Msata SSD128G/250G/500G/1TB

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x 12.1” Stainless Steel PC

    1x I/O Cable 1.5M

    1x CD-ROM

    1x Power Adaptor
