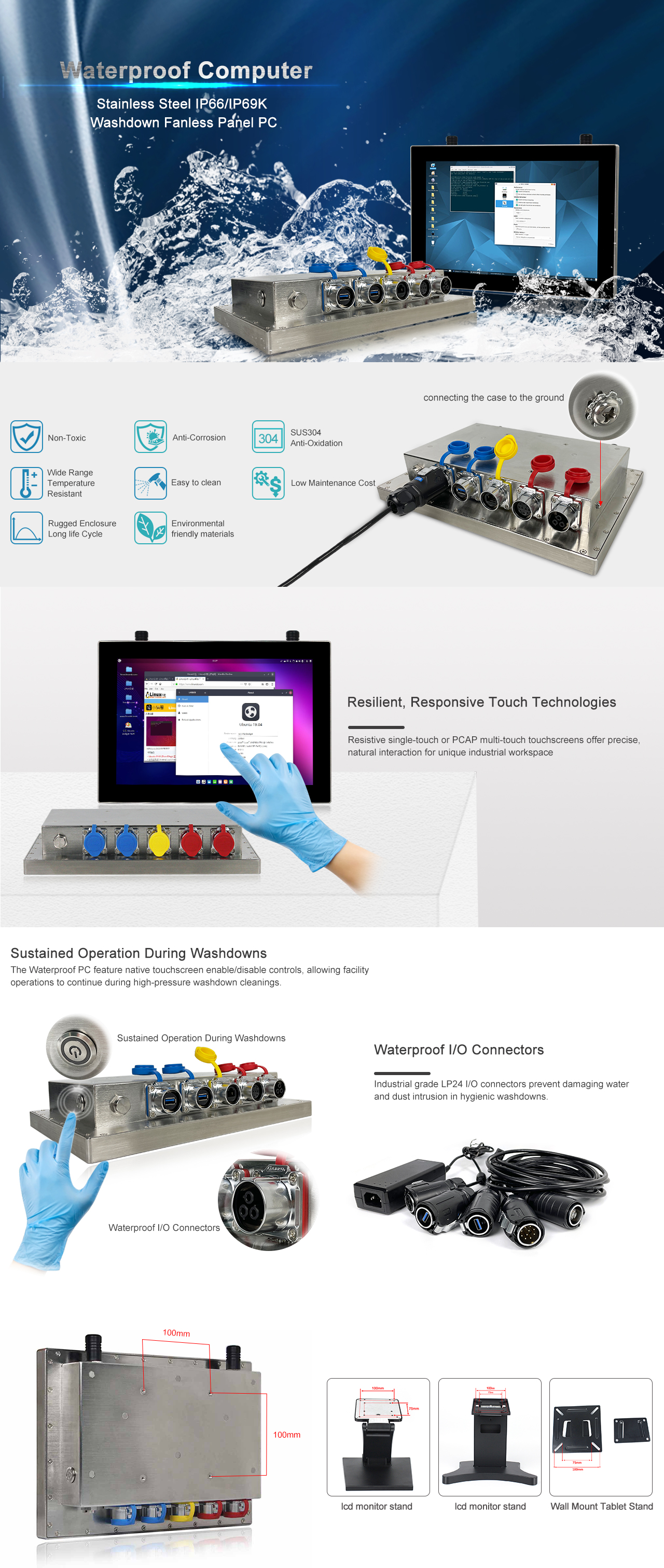

    WPC-C012WCC-LP24

    Product features:

    • Whole Shell SUS304 Stainless Steel, Whole PC IP66/IP69K Waterproof
    • 12.1" TFT LED, Resolution 1280×800, 10 Points PCAP Touch
    • Intel Celeron J6412 2.0GHz, Fanless Waterproof PC
    • I/O Industrial Connectors For Optional: VGA/HDMI/LAN/USB/COM
    • Built-in TPM2.0 for Hardware-based Security
    • DC 9V~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
    CERoHSFCTPMIP69K
    Visit:1375
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W

    L2 Cache

    1.5MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 3200MHz 4GB, MAX 32GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD)

    Graphics

    Intel® UHD Graphics for 10th Gen Intel® Processors

    Network

    Intel® 225-V GbE LAN

    Audio

    Realtek ACL897 Audio controller

    TPM

    TPM 2.0

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI ( Optional )

    LAN

    2 x LP24 Waterproof Giga LAN RJ45 Connector

    USB

    2 x LP24 Waterproof Connector For USB2.0

    COM

    1 x LP24 Waterproof Connector For COM

    Wireless Network

    WiFi + Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    Display

    LCD Size

    12.1" ( 16:10 )

    Resolution

    1280 x 800

    Brightness (cd/m²)

    400 cd/m2

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 hrs

    Viewing Angle

    88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    7H

    Power

    Power Input

    1 x LP24 Waterproof Connector For 9V~36V DC

    Power Protection

    OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦35W

    Physical

    Material

    Inox / SUS304 / SUS316

    Mounting

    Stand / Wall / VESA / Yoke

    Dimension (W x H x D)

    312 x 214 x 60 mm

    Packing Size

    450 x 170 x 350 mm

    Weight (Net)

    4.0 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP69K

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPC-C012WCC-LP24

    2.1TFT LCD / Resolution 1280 x 800 / Intel Celeron J6412 2.0GHz / PCAP touch / VGA / HDMI / LAN / COM / USB / TPM2.0 / DC IN 9V~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAM:DDR43200MHz 4GB, MAX 32GB

    Harddisk

    M.2 SSD 120G (250G/500G/2TB SSD)

    WiFi

    Wifi Bluetooth Combo Module, with antenna



    PACKING LIST

    12.1Stainless Steel PC

    1x I/O Cable 1.5M

    1CD-ROM

    1x Power Adaptor

    2022-11-08
    Chipset Driver

    Model J6412

    File Size: 0B
    2022-11-08
    Graphics Driver

    Model J6412

    File Size: 0B
    2022-11-08
    LAN Driver

    Model J6412

    File Size: 0B
    2022-11-08
    Audio Driver

    Model J6412

    File Size: 0B
    2022-11-08
    ME & TXE Driver

    Model J6412

    File Size: 0B
    2022-11-08
    Peripheral Driver

    Model J6412

    File Size: 0B
