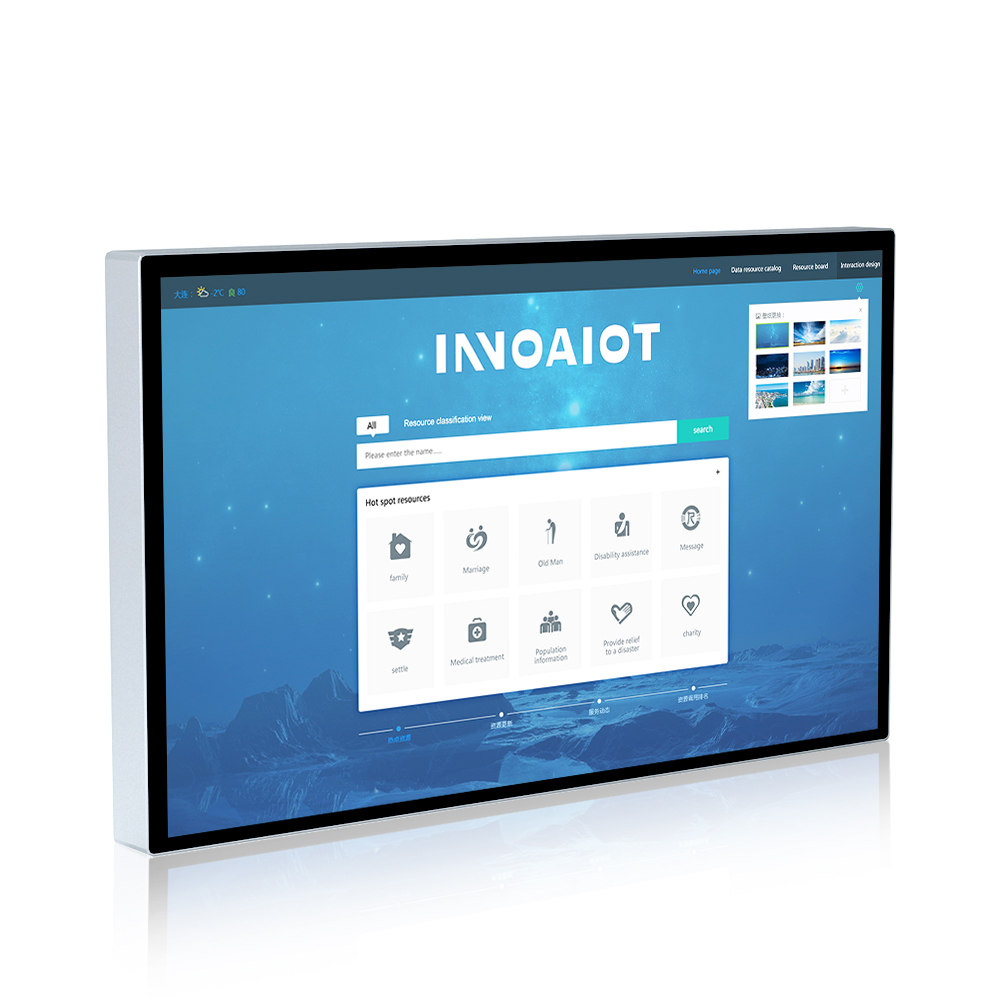

    WPM-H024WAC

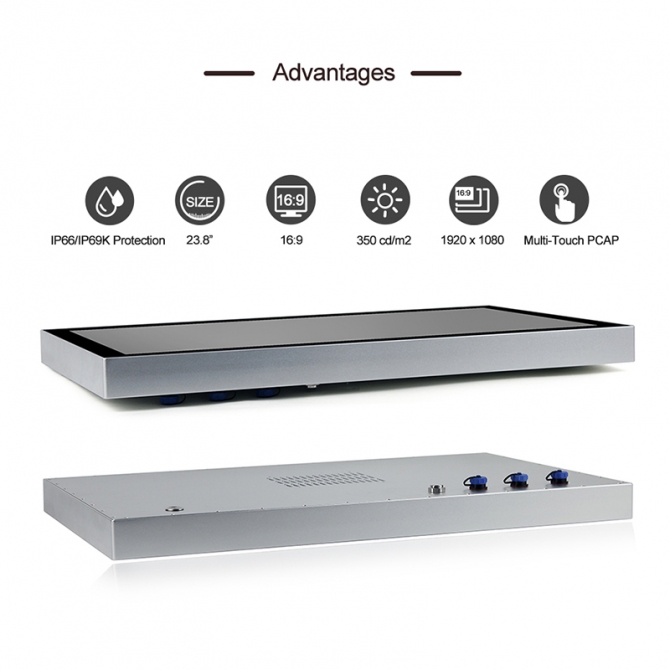

    Product features:

    • Industrial-grade 23.8" FHD LCD panel with 30k backlight lifetime

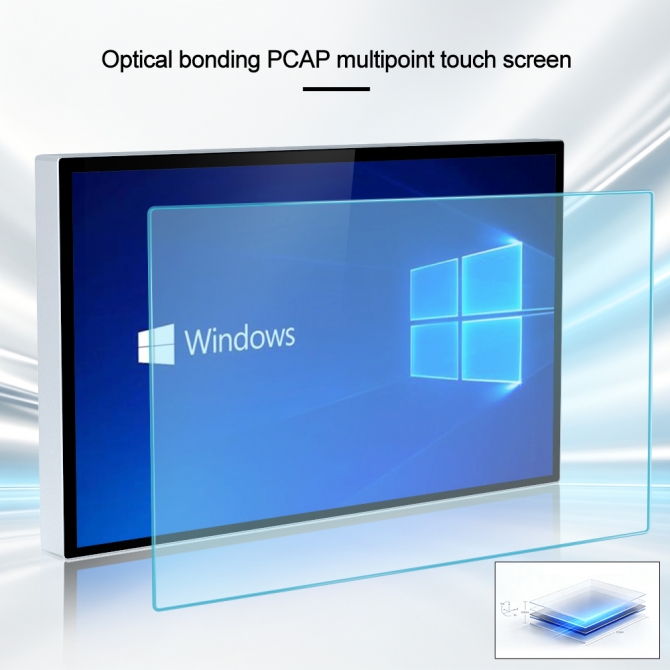

    • True-flat touchscreen with multi-touch projected capacitive control

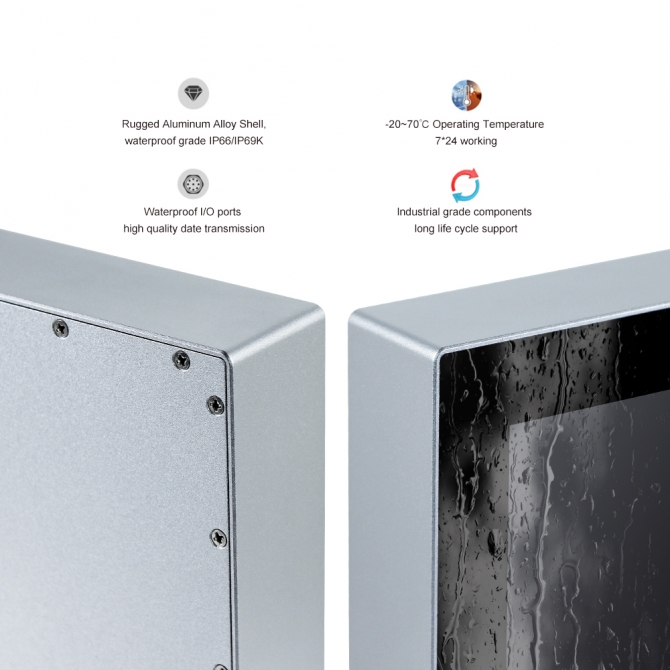

    • Full device IP66/IP69K with Strong aluminum alloy casing
    • Video Input Interfaces:1 x HDMI / 1 x VGA Optional
    • Support USB Interfaces for Touch Function

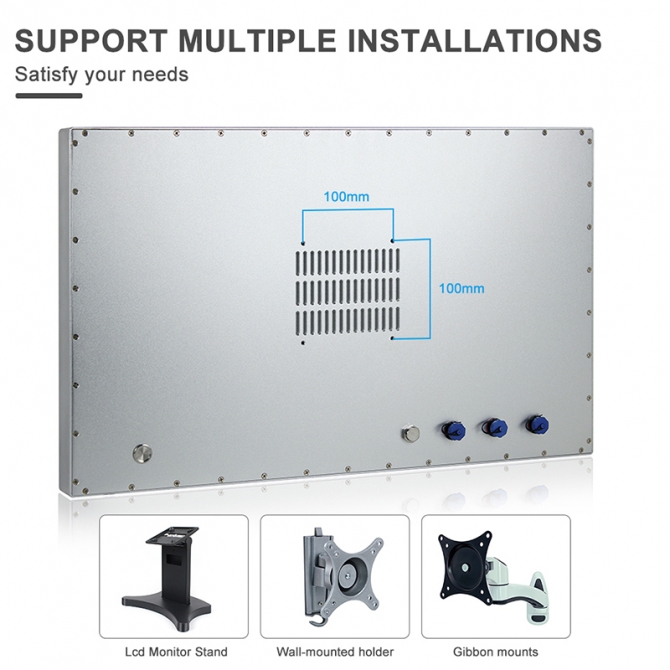

    • Supports embedded / VESA 100mm x 100mm mounting holes
    • Wide Operating Temperature -20°C to 70°C
    • 12V to 24V DC Wide Range Power Input
    CERoHSFCIP69K
    Visit:1409
    Description Specifications Dimension drawing Order Info Driver download

    Display

    Panel Size

    23.8" ( 16:9 )

    Resolution

    1920 x 1080  ( FHD )

    Display Brightness

    350 cd/m2

    Contrast Ratio

    1000:1

    Backlight Lifetime

    30000 Hr (min.)

    Viewing Angle

    89 / 89 / 89 / 89 ( CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

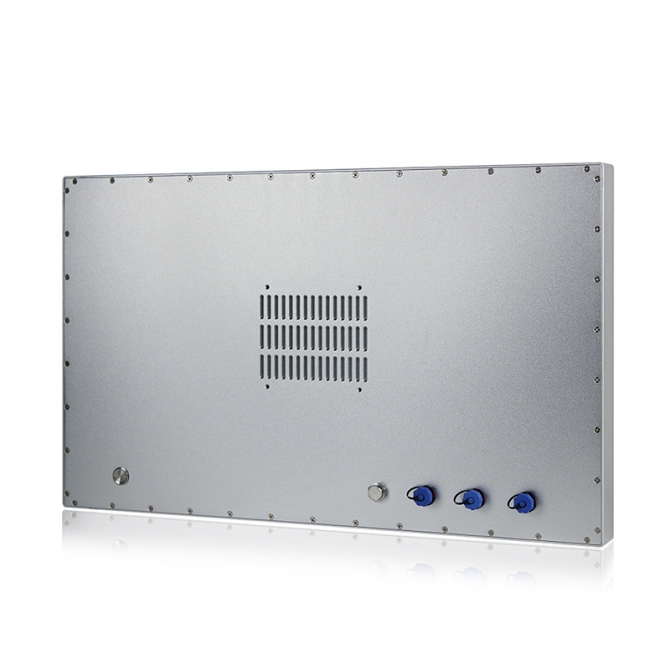

    I / O

    Video

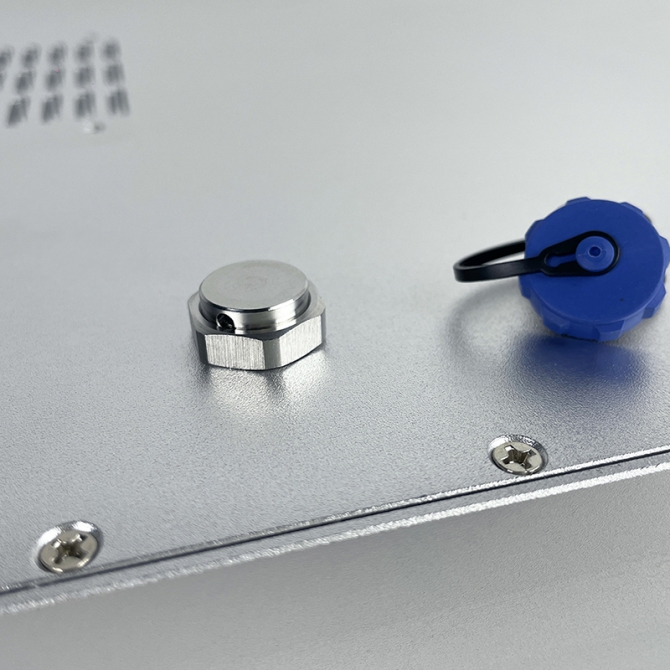

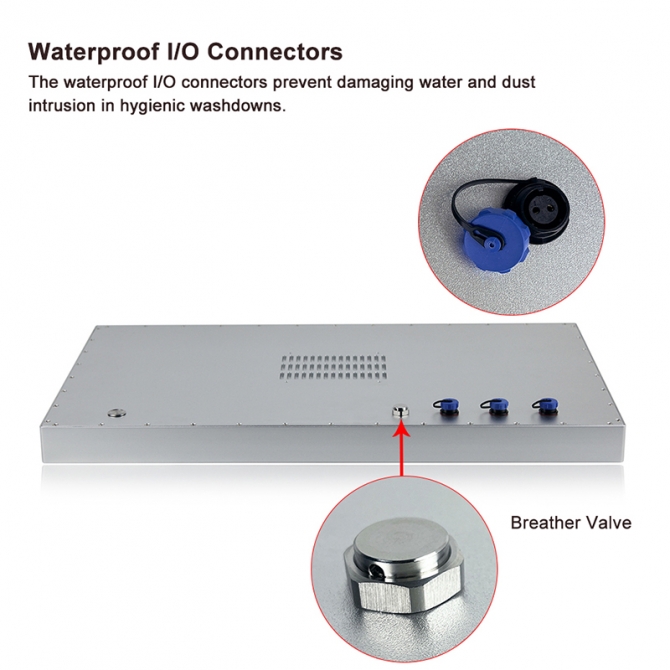

    1 x Waterproof Connector For H-DMI / VGA ( Optional )

    USB

    1 x SP13 Waterproof Connector For Touch USB2.0

    Other I/O Interface

    1 x Power Switch

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    1 x SP13 Waterproof Connector For 12V~24V DC

    Power Consumption

    ≦30W

    Physical

    Material

    Aluminum Alloy Shell

    Mounting

    Stand / Wall / VESA

    Dimension (W x H x D)

    583 x 353 x 43 mm

    Cut-out Size

     /

    Packing Size

    730 x 190 x 530 mm

    Weight (Net)

    8.5 kg

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP69K

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPM-H024WAC

    23.8FHD LCD / Resolution 1920 1080 / PCAP Touch / 1 x H-DMI / 1 x T-USB / DC IN 12V~24V



    PACKING LIST

    1 x 23.8Waterproof Touch Monitor

    1 x 60W PSU (Power Supply)

    1 x SP13 Waterproof H-DMI Cable 2M

    1 x SP13 Waterproof T-USB Cable 2M
