    WPM-H015SAC

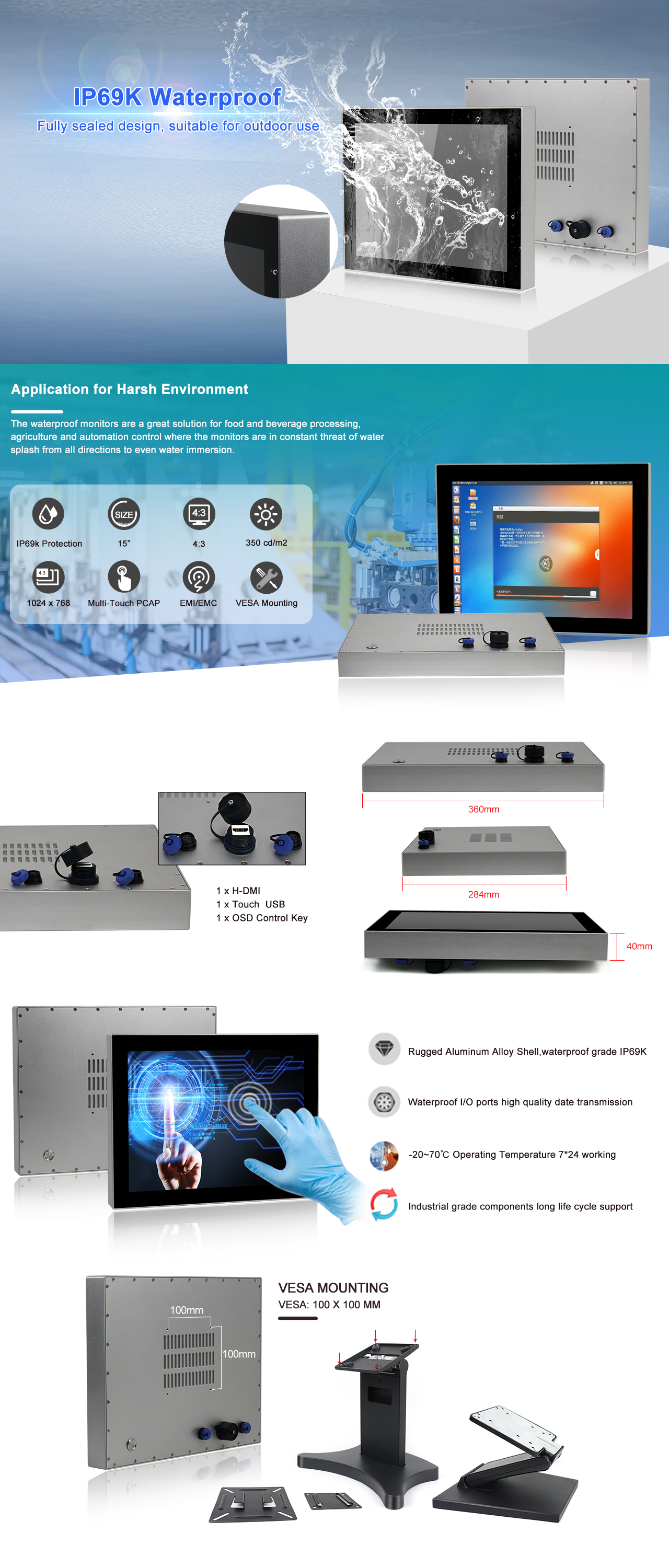

    Product features:

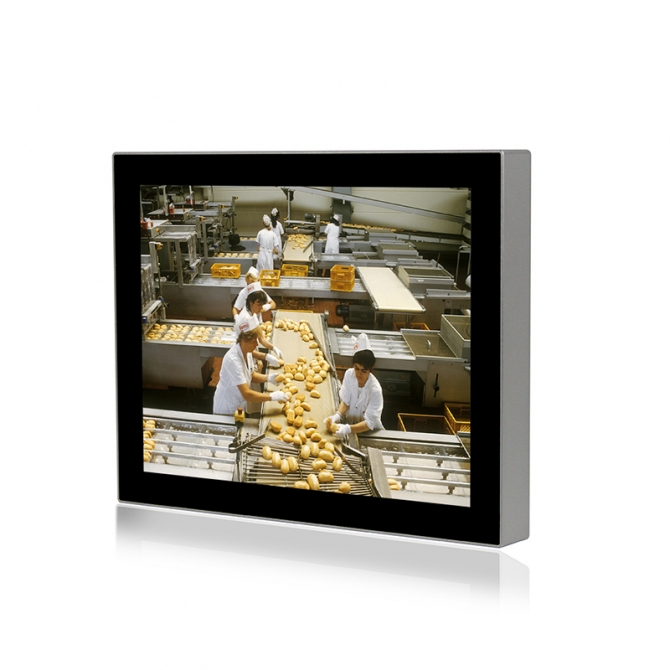

    • Industrial-grade 15" XGA LCD panel with 50k backlight lifetime
    • Optical bonding PCAP multipoint touch screen

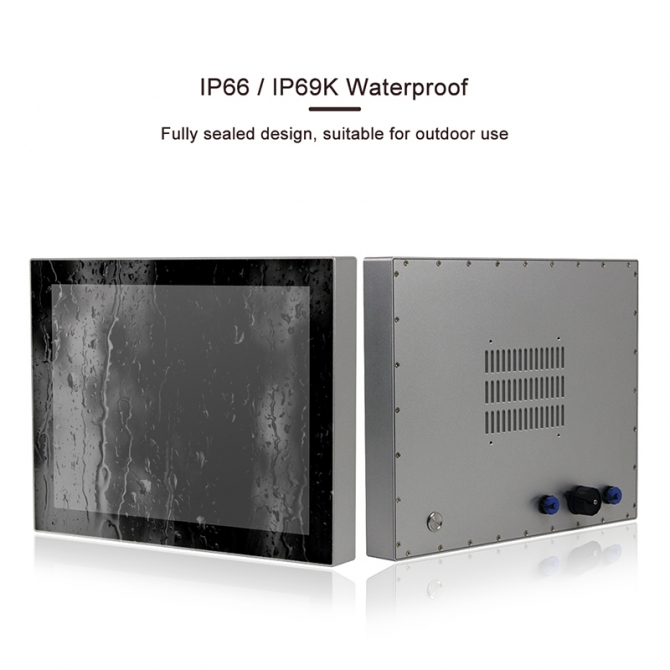

    • Full device IP66 / IP69K with Strong aluminum alloy casing
    • Video Input Interfaces:1 x HDMI / 1 x VGA Optional
    • Support USB Interfaces for Touch Function
    • Supports embedded / VESA 100mm x 100mm mounting holes

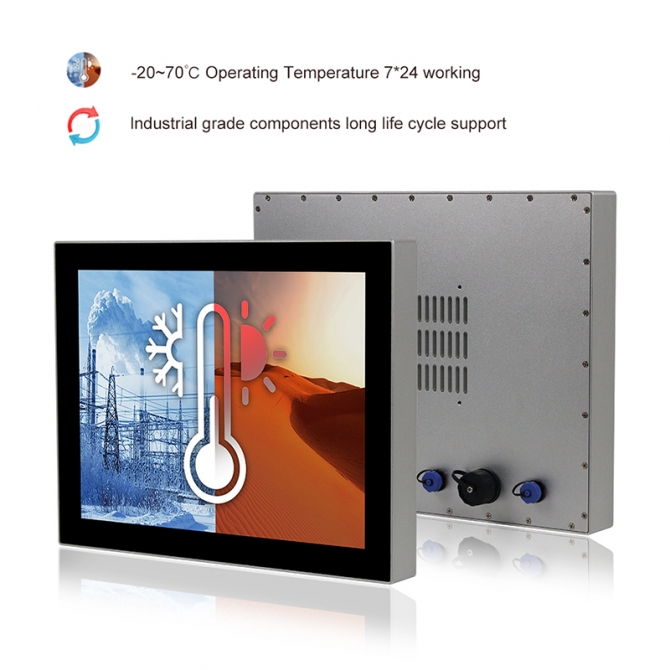

    • Wide Operating Temperature -20°C to 70°C
    • 12V to 24V DC Wide Range Power Input
    CERoHSFCIP69K
    Visit:1559
    Description Specifications Dimension drawing Order Info Driver download

    Display

    Panel Size

    15" ( 4:3 )

    Resolution

    1024 x 768

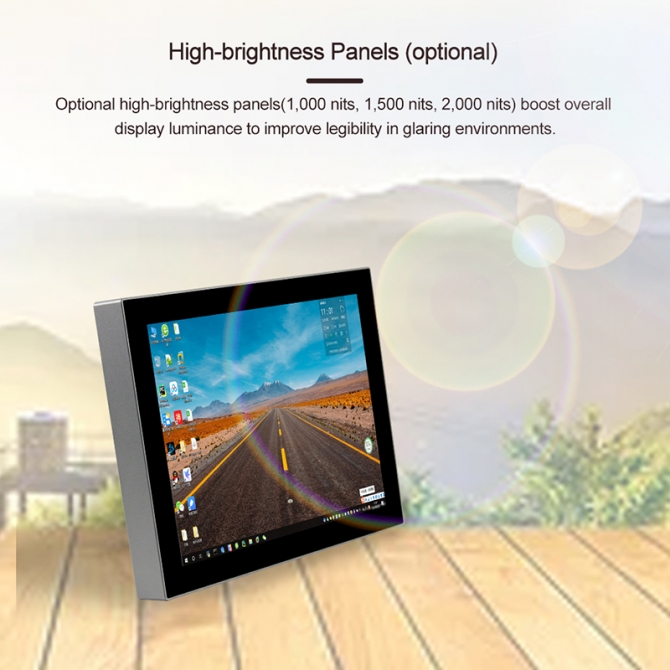

    Display Brightness

    350 cd/m2

    Contrast Ratio

    1000:1

    Backlight Lifetime

    50000 Hr (min.)

    Viewing Angle

    89 / 89 / 89 / 89 ( CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    Optical bonding PCAP Touch

    Surface Hardness

    ≥7H

    I / O

    Video

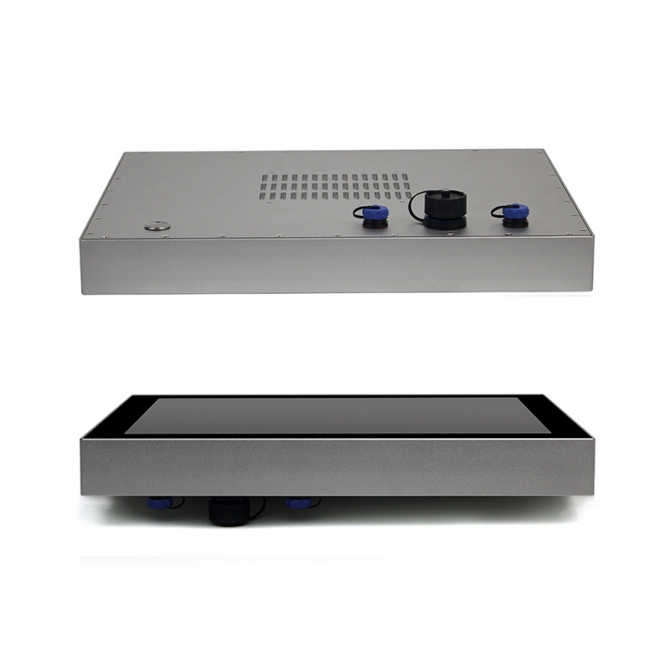

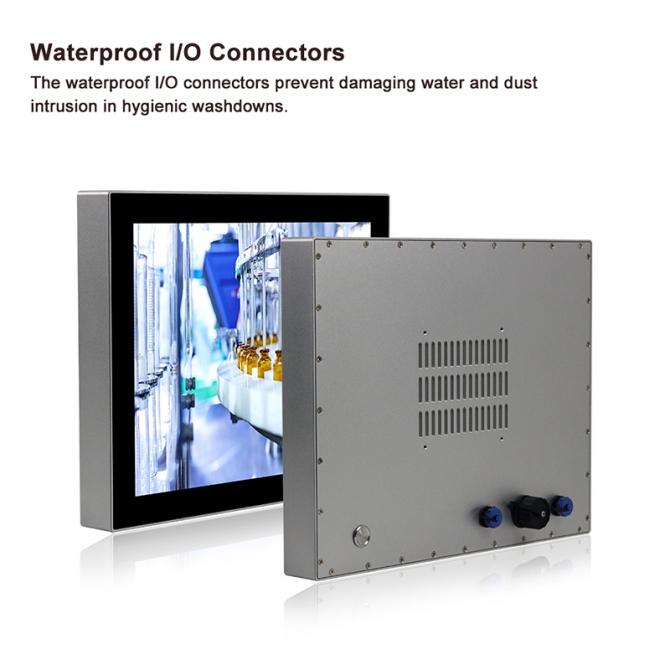

    1 x Waterproof Connector For H-DMI / VGA ( Optional )

    USB

    1 x SP13 Waterproof Connector For Touch USB2.0

    Other I/O Interface

    1 x Power Switch

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    1 x SP13 Waterproof Connector For 12V~24V DC

    Power Consumption

    ≦30W

    Physical

    Material

    Aluminum Alloy Shell

    Mounting

    Stand / Wall / VESA

    Dimension (W x H x D)

    360 x 284 x 42 mm

    Cut-out Size

     /

    Packing Size

    460 x 180 x 400 mm

    Weight (Net)

    4.5 kg

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP69K

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPM-H015SAC

    15”XGA LCD / Resolution 1024x768 / Optical bonding PCAP Touch / 1 x H-DMI / 1 x T-USB / DC IN 12V~24V



    PACKING LIST

    1 x 15Waterproof Touch Monitor

    1 60W PSU (Power Supply)

    1 SP13 Waterproof H-DMI Cable 2M

    SP13 Waterproof T-USB Cable 2M
