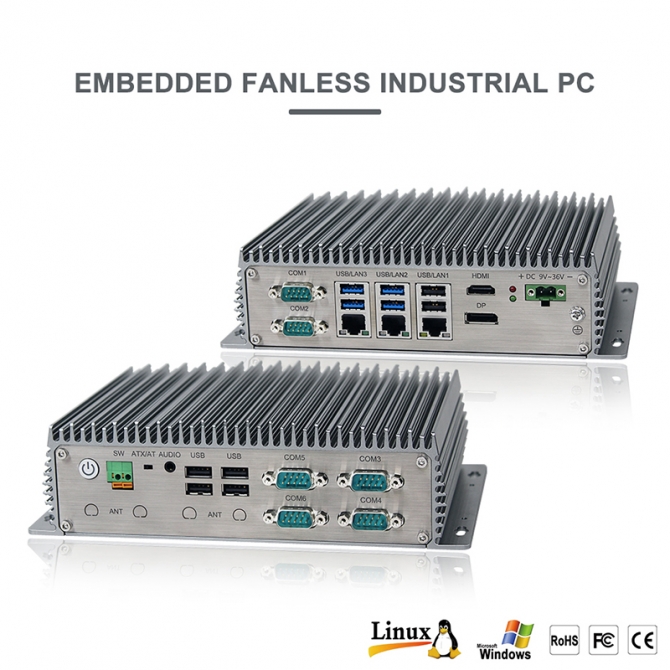

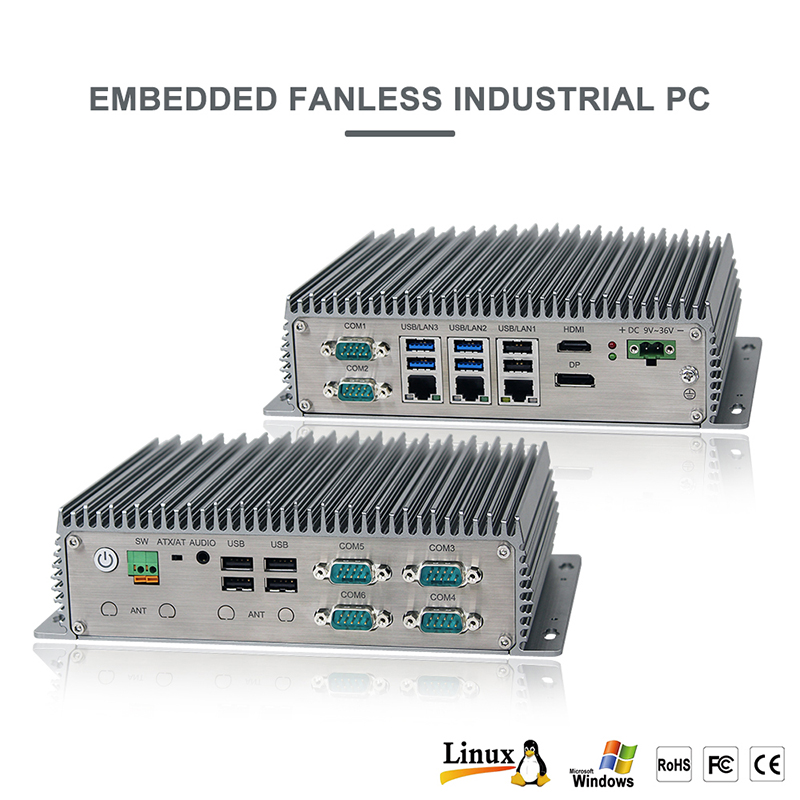

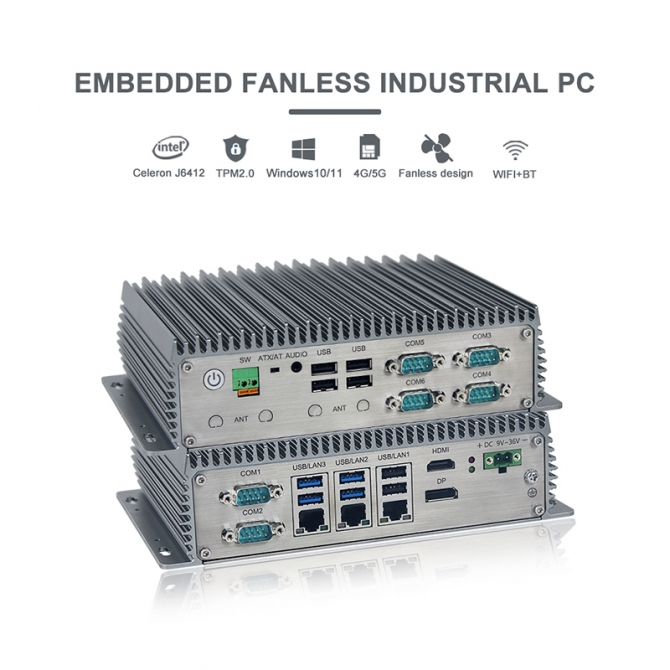

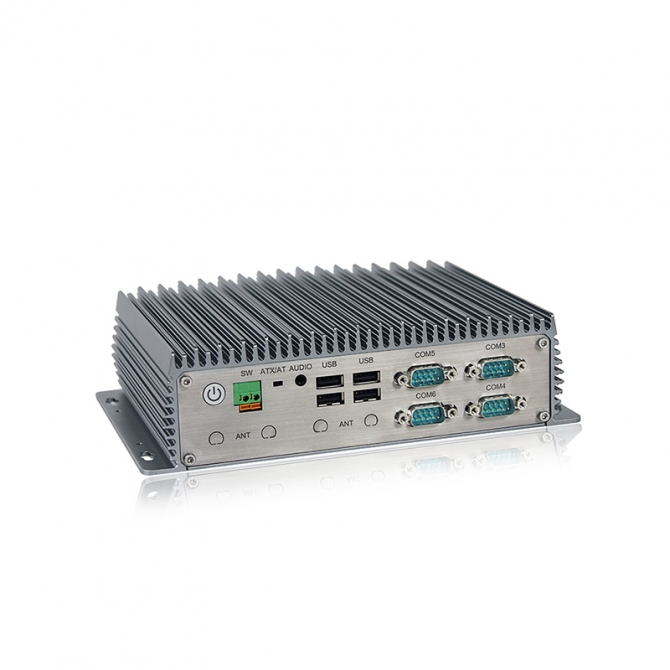

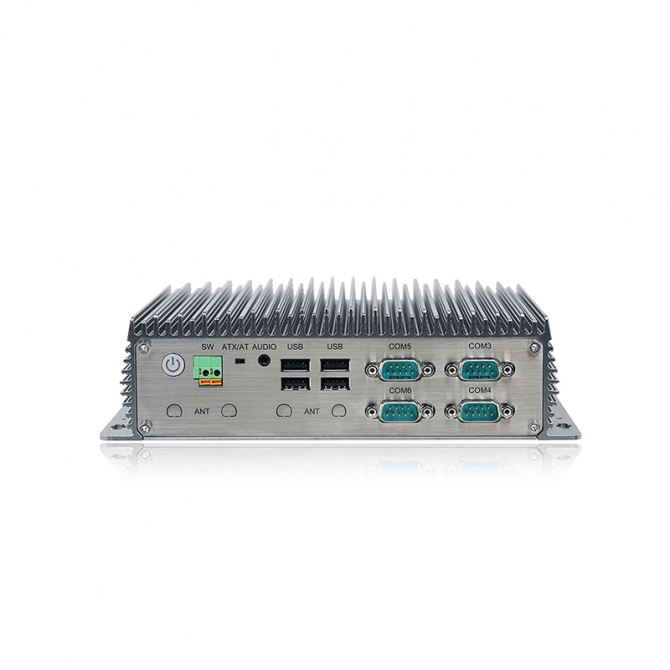

    EFIC-2000CA

    Product features:

    • Intel® Celeron® J6412 quad-core 2.0 GHz processor
    • 1 x DDR4 3200MHz SODIMM, MAX 32GB
    • 1 x 2.5 SATA HDD, 1 x M.2 2280 SATA SSD
    • 1 x M2.0 (2230, Wifi+BT),1 x M2.0 (2242/3052,4G/5G)
    • Supports dual independent display:1 x HDMI, 1 x DP
    • 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
    • 6 x COM (4x RS232/RS422/RS485),ESD and Surge Protection
    • Support TPM2.0 hardware security
    • Wide Operating Temperature -30°C to 70°C
    • 9V to 36VDC Wide Range Power Input,Supporting OVP / OCP / RPP
    CERoHSFCTPM
    Visit:1425
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Elkhart Lake Celeron J6412 2.0GHz

    Intel® Elkhart Lake Atom X6425E 2.0GHz

    L2 Cache

    1.5MB

    1.5MB

    TDP

    10W

    10W

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 3200MHz 4GB, MAX 32GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel® UHD Graphics for 10th Gen Intel® Processors

    Network

    Intel® 226-V GbE LAN

    Audio

    Realtek ACL897 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x DP / 1 x H-DMI

    Ethernet

    3 x LAN 10/100/1000/2500 Mbps

    USB

    6 x USB2.0 / 4 x USB3.0

    COM

    2 x RS-232 / 4 x RS-232 / 422 / 485 ( Adjustable through BIOS )

    Audio

    1x Audio_out & Mic_in

    Wireless Network

    Optional(WiFi / Bluetooth / 4G / 5G )

    Expansion

    M.2

    1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT)

    1*M.2 ( Key-B, 2242/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

    1*M.2 ( Key-M, 2280 SATA, SSD )

    Expansion

    1*mPCe

    SIM Socket

    1x SIM Socket

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Mode

    Support AT, ATX Mode

    Power Input

    2-pin Terminal Block Connector with Power Input 9~36VDC

    Power Protection

    OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦30W

    Physical

    Material

    Aluminum Alloy Shell

    Color

    Grey / Silver / Black ( optional )

    Mounting

    208 x 100 mm / 208 x 60 mm

    Product Dimension

    220 x 145 x 62 mm

    Packing Size

    360 x 180 x 320 mm

    Weight (Net)

    1.5 KG

    Environment

    Operating Temperature

    -30~70°C  ( -22~158°F )

    Storage Temperature

    -40~85°C (-40~185°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    EFIC-2000CA

    Intel® Elkhart Lake Celeron J6412 2.0GHz / 1 x DP / 1 x H-DMI / 3 x LAN / 6 x USB2.0 / 4 x USB3.0 / 6 x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP)

    EFIC-2000XA

    Intel® Elkhart Lake Atom X6425E 2.0GHz / 1 x DP / 1 x H-DMI / 3 x LAN / 6 x USB2.0 / 4 x USB3.0 / 6 x COM / TPM2.0 / DC 9V~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 3200MHz 4GB, MAX 32GB

    Harddisk

    M.2 SSD(120G/250G/500G/2TB) 1 x 2.5" SATA

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    1 x Standard product

    1 x 60W PSU (Power Supply)

    1 x CD-ROM
