    PPC-X156WAC

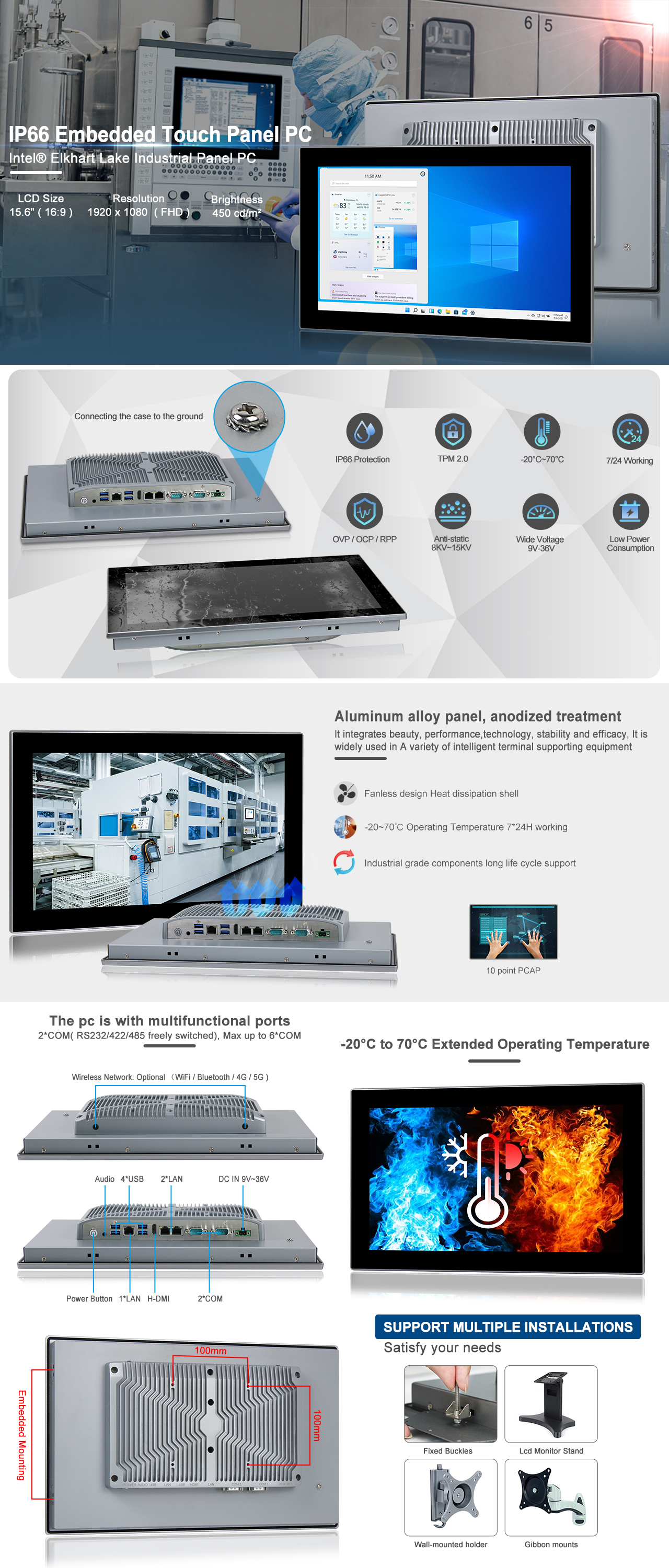

    Product features:

    • Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
    • True-flat touchscreen with multi-touch projected capacitive control
    • IP66 grade aluminum alloy front panel
    • Intel® Atom® X6425E quad-core 2.0 GHz processor
    • 1 x DDR4 SDRAM, max.32GB, 1 x M.2 2280 / 1 x 2.5" SATA SSD
    • 3 x Intel® 226-V 2.5GbE Ethernet, support WoL and PXE
    • 2 x RS232/422/485, RS485 support automatic flow control
    • Support TPM2.0 hardware security
    • Supports embedded / VESA 100mm x 100mm mounting holes
    • 9V to 36V DC Wide Range Power Input,Supporting OVP / OCP / RPP
    CERoHSFCTPMIP66
    Visit:985
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Elkhart Lake Atom X6425E Quad-core 2.0GHz , TDP 10W

    L2 Cache

    1.5MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 3200MHz 4GB, MAX 32GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel® UHD Graphics for 10th Gen Intel® Processors

    Network

    Intel® 226-V GbE LAN

    Audio

    Realtek ACL897 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI

    LAN

    3 x LAN (10/100/1000/2500 Mbps)

    USB

    4 x USB 3.0

    COM

    2 x RS-232 / 422 / 485 ( Adjustable through BIOS )

    Audio

    1x Audio_out & Mic_in

    Wireless Network

    Optional(WiFi / Bluetooth / 4G / 5G )

    Expansion

    M.2

    1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

    1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

    1*M.2 ( Key-M, 2280, SATA / SSD )

    SIM Socket

    1x SIM Socket

    Display

    LCD Size

    15.6" ( 16:9 )

    Resolution

    1920 x 1080( FHD )

    Brightness (cd/m²)

    450 cd/m2

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 Hr (min.)

    Viewing Angle

    89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A ,60W

    Power Mode

    Support AT, ATX Mode

    Power Input

    2-pin Terminal Block Connector with Power Input 9~36VDC

    Power Protection

    OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦35W

    Physical

    Material

    Aluminum alloy panel, anodized treatment

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    400 x 250 x 60 mm

    Cut-out Size

    386 x 236 mm

    Packing Size

    460 x 180 x 400 mm

    Weight (Net)

    4.1 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    Front Panel IP66

    EMC

    CE, FCC,KC ,Class A,ROHS ,IEC / EN 62368-1

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PPC-X156WAC

    15.6" FHD LCD / Resolution 1920 x 1080 (FHD) / Intel Atom X6425E 2.0GHz / PCAP Touch / 1 x HDMI / 3 x LAN / 2 x COM (RS232 / 422 / 485) / 4 x USB3.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )



    CONFIGURATION

    DESCRIPTION

    Memory

    RAM:DDR4L 3200MHz SO-DIMM.4GB/32GB capacity

    Harddisk

    M.2/2.5" SATA SSD120G/250G/500G/2TB optional

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    15.6" Industrial Panel PC

    1 CD-ROM

    1 60W PSU (Power Supply)

    1 Power cable & plug

    8 x Panel mount metal clips
