    PPC-C215WAR

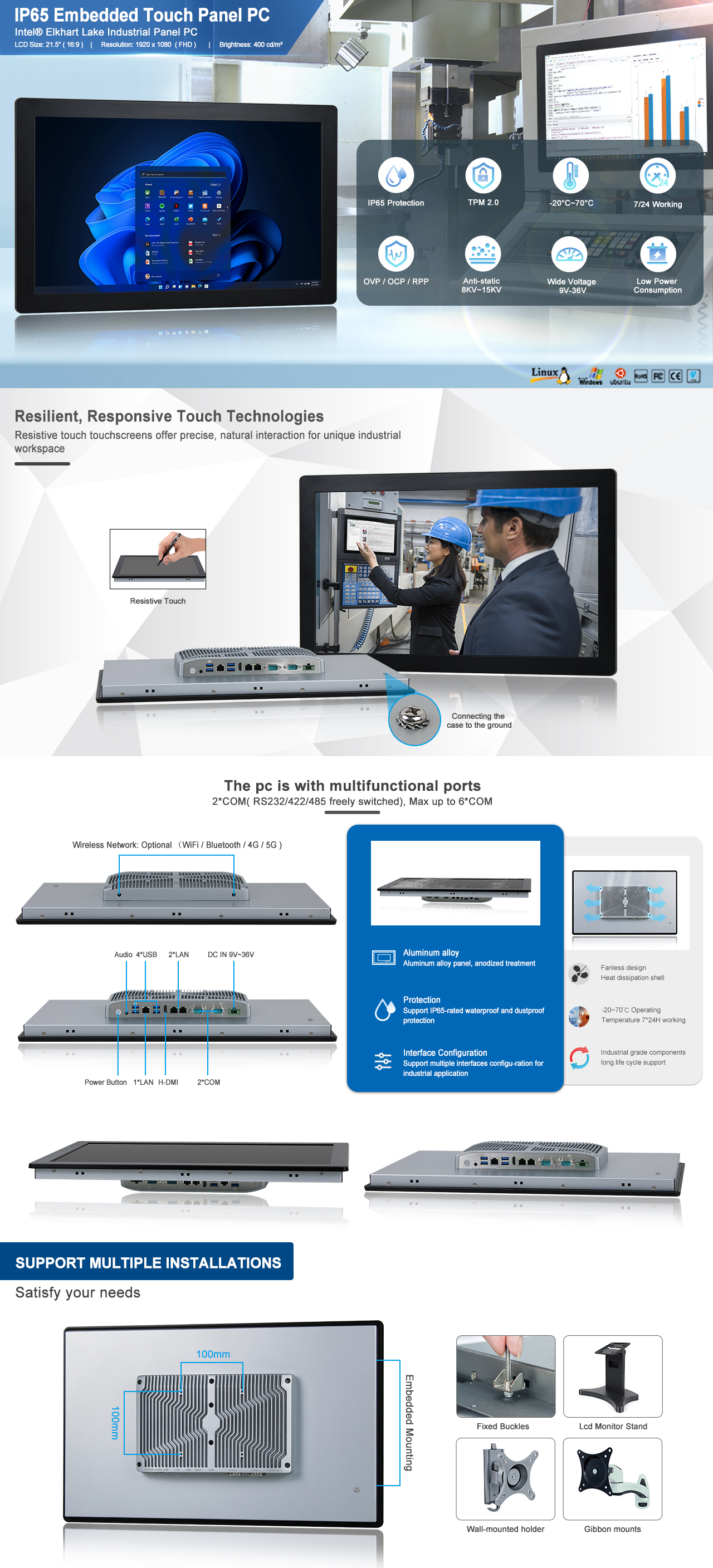

    Product features:

    • Aluminium Alloy Front Panel, Front IP65 Waterproof
    • 21.5" TFT LCD, Resolution 1920x1080, 5 Wire Resistive Touch
    • Intel® Elkhart Lake Celeron J6412 2.0GHz Fanless Industrial Panel PC
    • 3xLAN, 2xCOM, Static Electricity & S Surge Protection
    • Built-in TPM2.0 for Hardware-based Security
    • DC 9V~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
    CERoHSFCTPMIP65
    Visit:864
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W

    L2 Cache

    1.5MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR4L 3200MHz 4GB, MAX 32GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel® UHD Graphics for 10th Gen Intel® Processors

    Network

    Intel® 225-V GbE LAN

    Audio

    Realtek ACL897 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI

    LAN

    3 x LAN (10/100/1000/2500 Mbps)

    USB

    4 x USB 3.0

    COM

    2 x RS-232 / 422 / 485

    Audio

    1x Audio_out & Mic_in

    Wireless Network

    Optional(WiFi / Bluetooth / 4G / 5G )

    Display

    LCD Size

    21.5" ( 16:9 )

    Resolution

    1920 x 1080 (FHD)

    Brightness (cd/m²)

    400 cd/m2

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 Hr (min.)

    Viewing Angle

    89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    5 Wire Resistive touch

    Surface Hardness

    ≥3H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A ,60W

    Power Mode

    Support AT, ATX Mode

    Power Input

    2-pin Terminal Block Connector with Power Input 9~36VDC

    Power Protection

    OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦30W

    Physical

    Material

    Aluminum alloy panel, anodized treatment

    Mounting

    Stand / Wall / VESA / Panel

    Dimension (W x H x D)

    538 x 330 x 60 mm

    Cut-out Size

    520 x 312 mm

    Packing Size

    630 x 190 x 480 mm

    Weight (Net)

    6 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    Front Panel IP65

    EMC

    CE, FCC,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    PPC-C215WAR

    21.5TFT LCD / Resolution 1920x1080 / Intel Celeron J6412 2.0GHz / Resistive Touch / 3x Intel®225-V GbE LAN / 2xCOMRS232/422/485)4xUSB3.0 / TPM2.0 / DC IN 9V~36V(OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    DDR4L 3200MHz SO-DIMM.4GB/32GB capacity

    Harddisk

    M.2/2.5" SATA SSD120G/250G/500G/2TB optional

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    21.5Industrial Panel PC

    1x CD-ROM

    10x Embedded Buckles

    1x Power Adaptor
