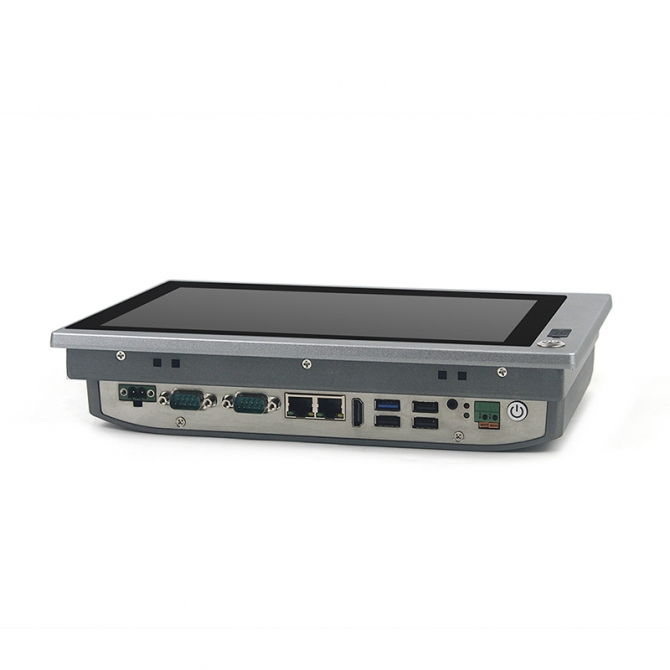

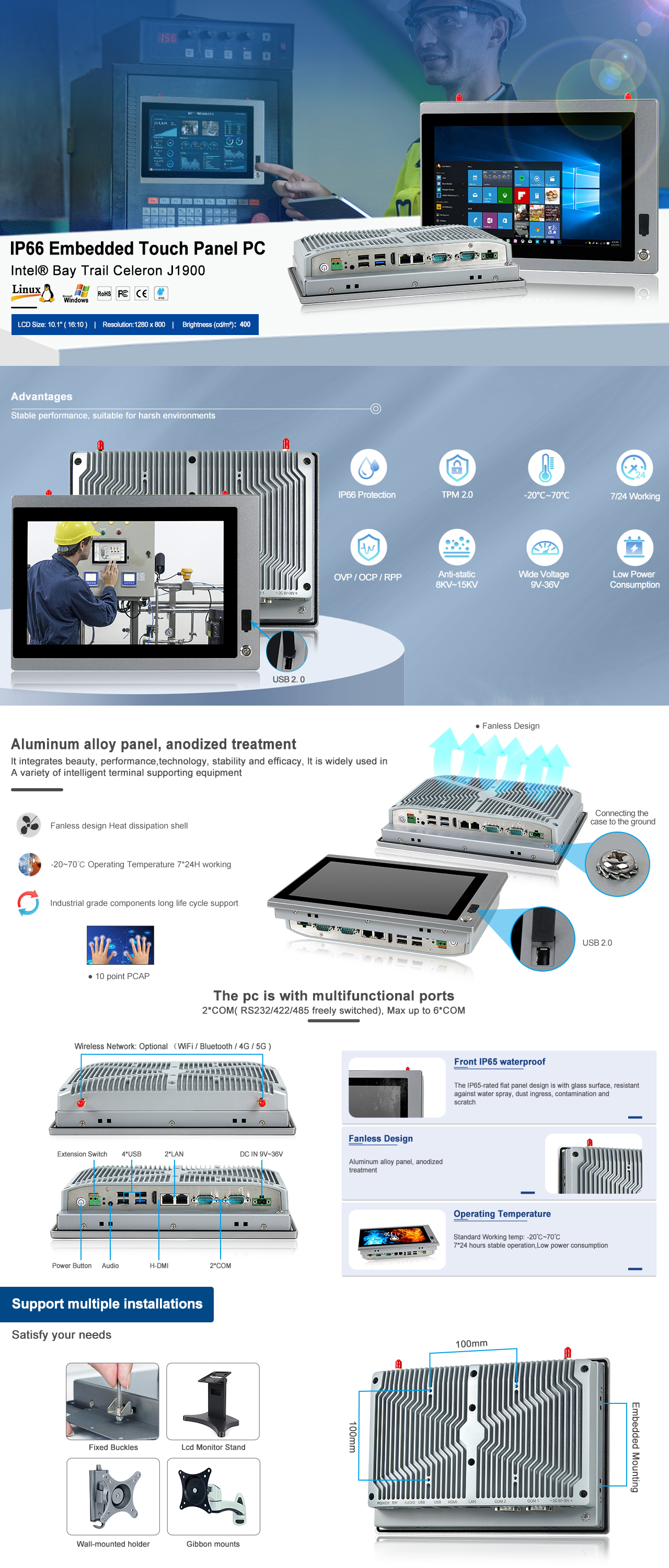

PPC-J010WBC
Product features：

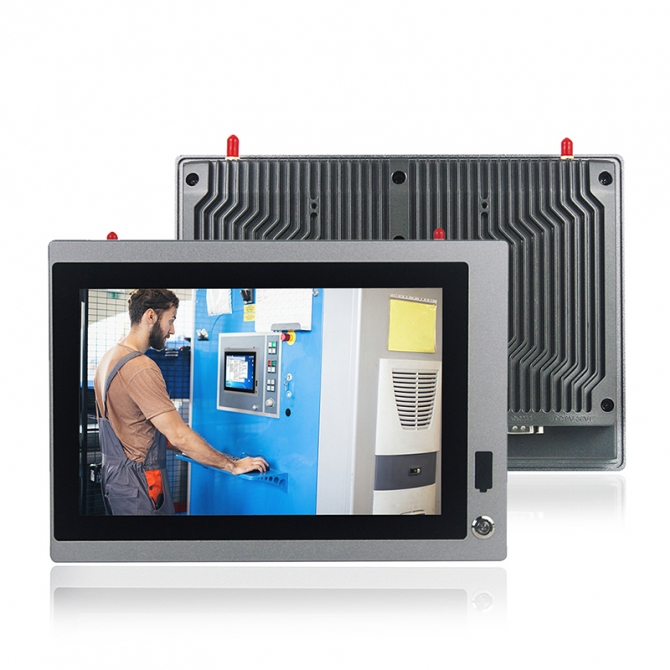

- Aluminium Alloy Front Panel, Front IP66 Waterproof

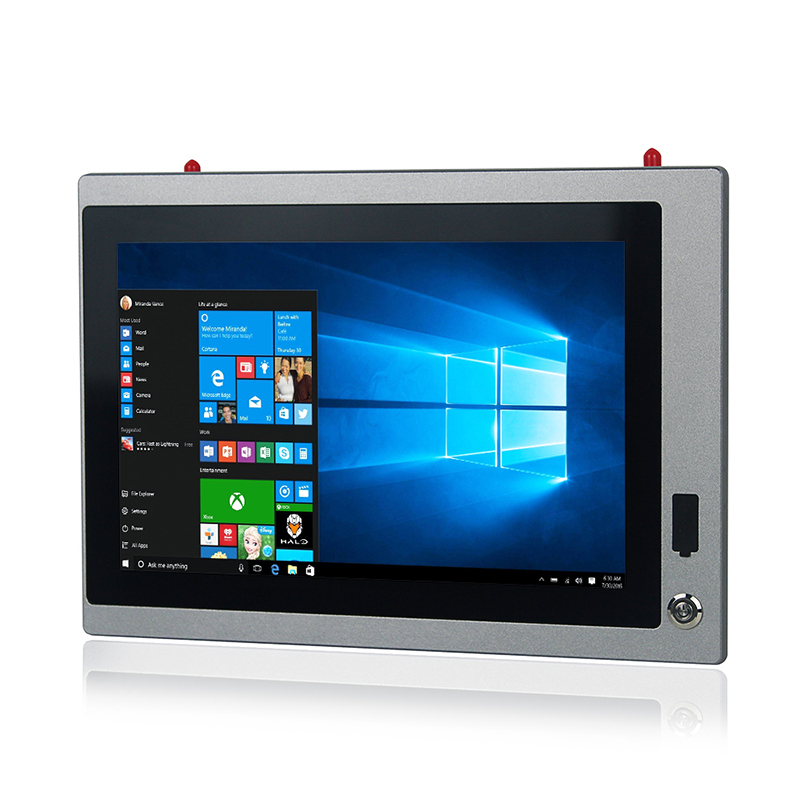

- 10.1" TFT LCD, Resolution 1280x800, PCAP Touch
- Intel Celeron J1900 CPU:2.0GHz Industrial Panel PC
- 2xLAN, 2xCOM, Static Electricity & Surge Protection
- Built-in TPM2.0 for Hardware-based Security
- DC 9~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
|
System |
|
|
CPU |
Intel Celeron J1900 2.0GHz |
|
L2 Cache |
2MB |
|
Chipsets |
Intel Bay Trail SOC |
|
Memory |
DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
TPM 2.0 |
|
Operation System |
Windows7 / 8 / 10, Linux, Ubuntu, Debian |
|

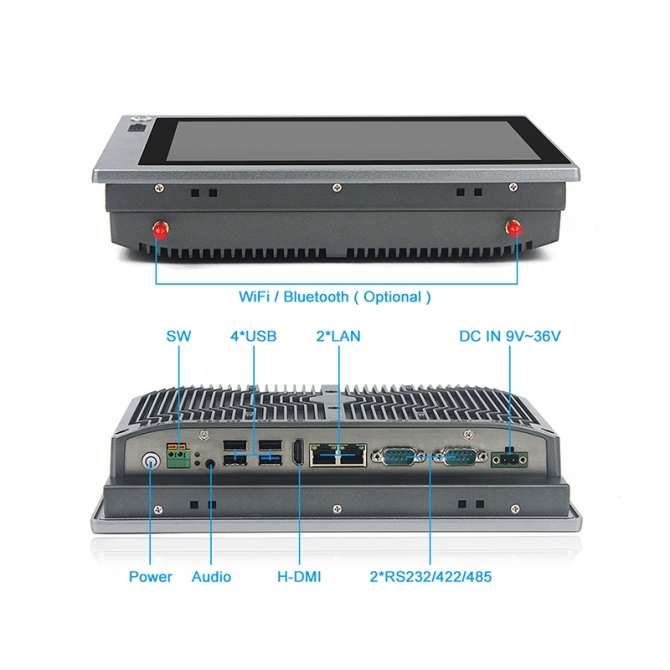

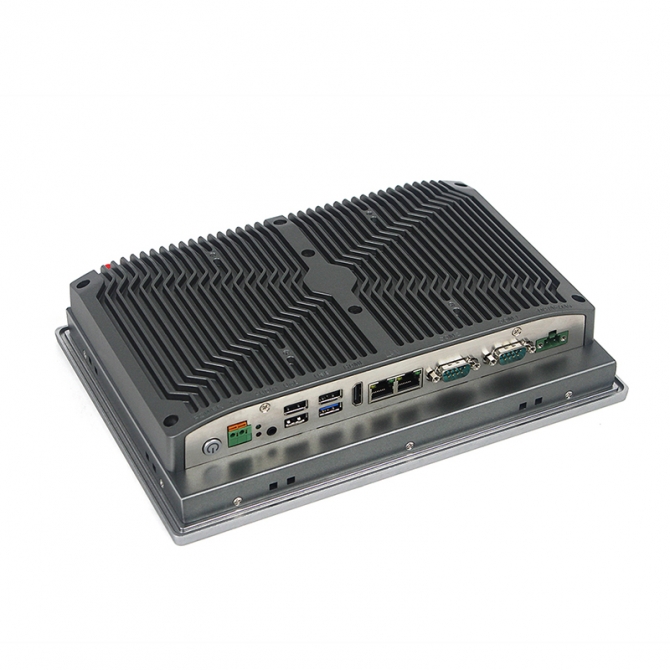

I / O |
|
|
HDMI |
1 x H-DMI |
|
LAN |
2 x LAN |
|

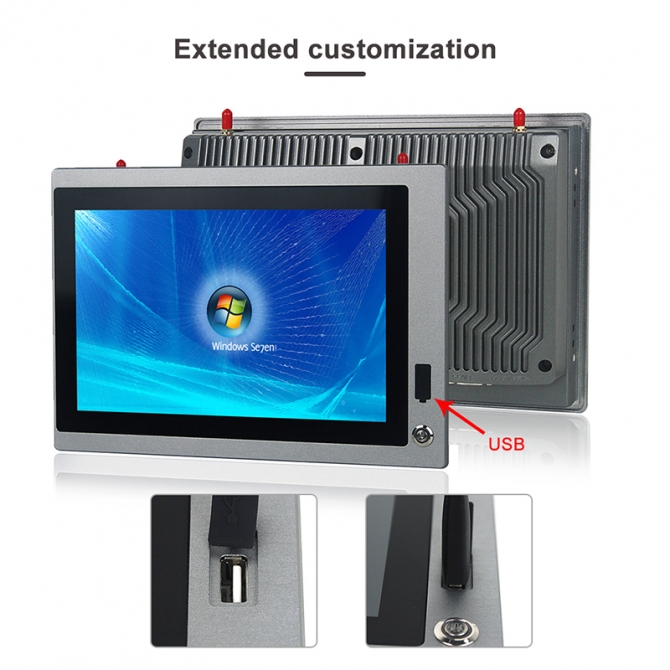

USB |
4 x USB2.0 / 1 x USB3.0 |
|
COM |
2 x RS-232 / 422 / 485 |
|
Wireless Network |
4G / WiFi / Bluetooth ( Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
LCD Panel |
|
|
Panel Size |
10.1" Led |
|
Resolution |
1280 x 800 |
|
Aspect Ratio |
16:10 |
|
Display Brightness |
400 cd/m2 |
|
Contrast Ratio |
900:1 |
|
Backlight Lifetime |
30000 Hr (min.) |
|
Viewing Angle |
85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Screen Type |
Multi-Touch PCAP |
|
Transmittance |
>90% |
|
Response Time |
<5ms |
|
Surface Hardness |
≥7H |
|
Supply Voltage |
5.0V DC |
|
Touch Life |
≧ 3000W |
|
Institutional |
|
|
Material |

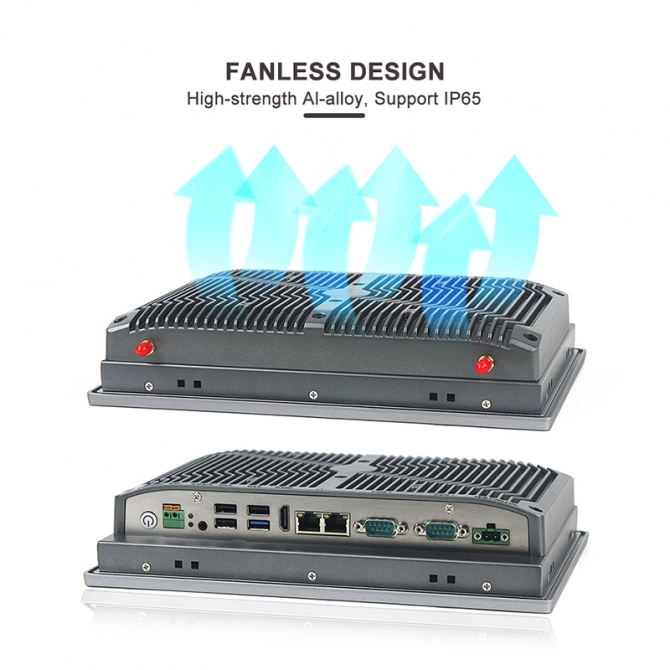

High-strength Al-alloy, support IP66 |
|
Color |
Gray |
|

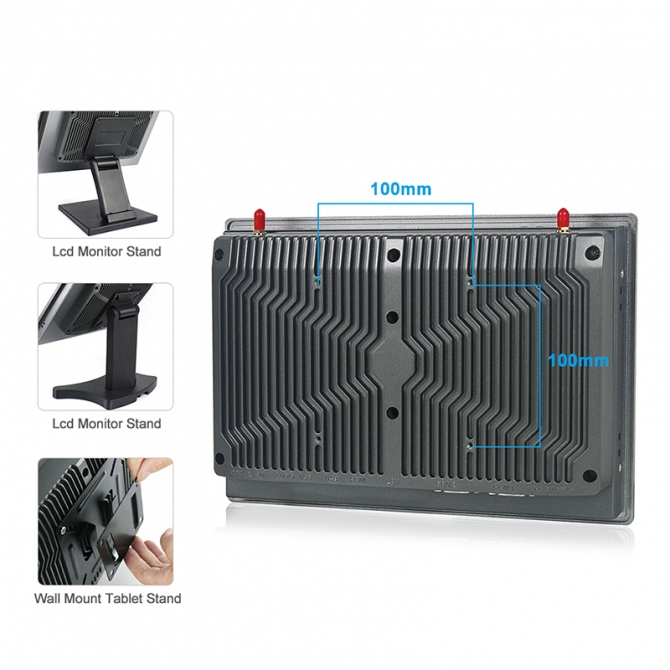

VESA Mounting |
VESA: 100 x 100 mm |
|
Waterproof Rate |
IP66 |
|
Product Dimension |
275 x 194 x 58 mm |
|
Cut-out Size |
263 x 182 mm |
|
Packing Size |
360 x 180 x 320 mm |
|
Gross Weight |
4.0 KG |
|
Power and Environment |
|
|
Operating Temperature |
-20~70°C |
|
Storage Temperature |
-30~80°C(-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
Working Voltage |
DC IN 9V~36V |
|
Power Consumption |
≦30W |
|
ORDERING INFORMATION |
|
|
AVAILABLE MODELS |
DESCRIPTION |
|
PPC-J010WBC |
10.1” TFT LCD / Resolution 1280x800 / PCAP Touch / Intel Celeron J1900 2.0GHz / 2x Intel®I211 GbE LAN / 2xCOM（RS232 / 422 / 485）4xUSB2.0 / 1xUSB3.0 / TPM2.0 / DC 9~36V (OVP / OCP / RPP) |
|
|
|
|
CONFIGURATION |
DESCRIPTION |
|
Memory |
RAM：DDR3L 1333MHz SO-DIMM.4GB/8GB |
|
Harddisk |
SATA/mSATA SSD：64G/128G/250G/500G |
|
WiFi |
Wifi Bluetooth Combo Module, with antenna |
|
4G |
Full Netcom 3G/4G/LTE module, with antenna |
|
|
|
|
PACKING LIST |
|
|
1x 10.1” Industrial Panel PC |
|
|
1x CD-ROM |
|
|
8x Embedded Buckles |
|
|
1x Power Adaptor |
|
