    WPM-H133WCC

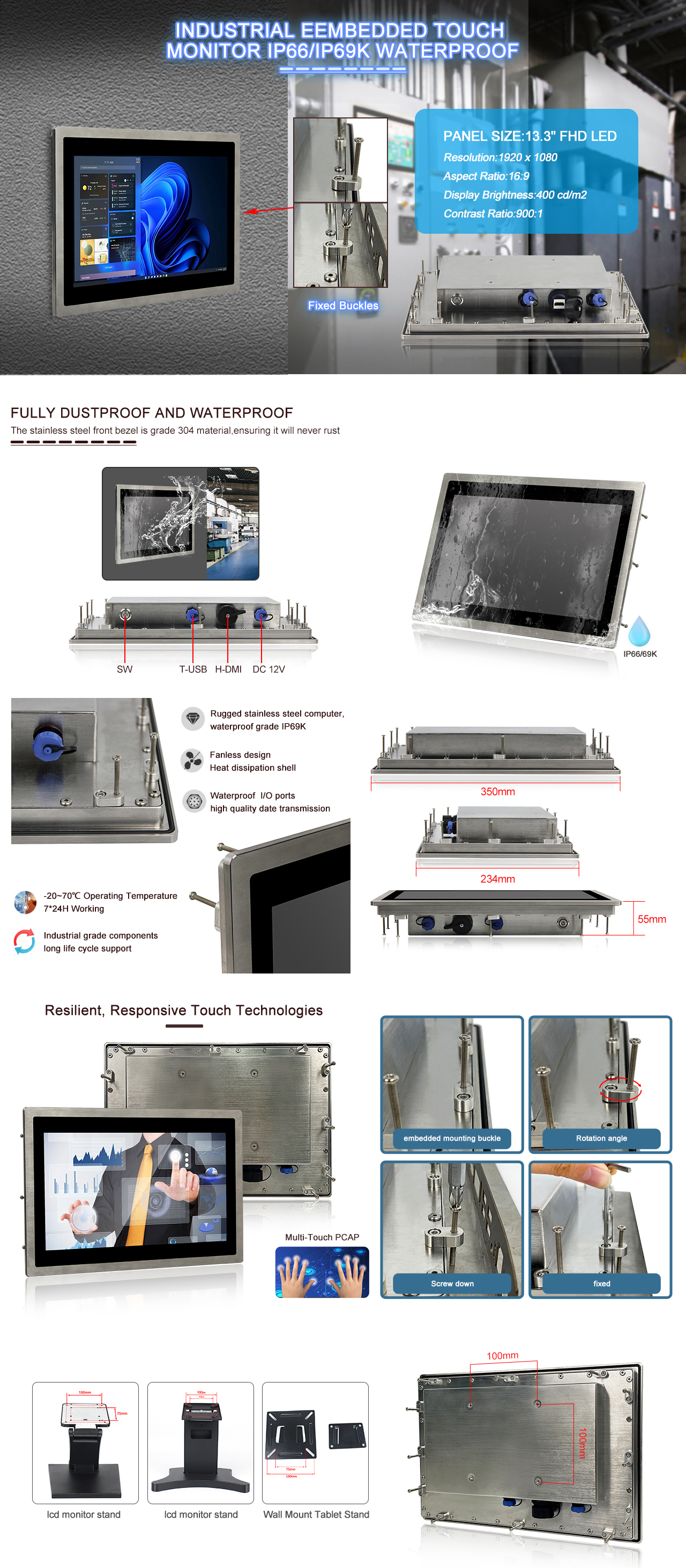

    Product features:

    • Industrial-grade 13.3" FHD LCD panel with 50k backlight lifetime
    • True-flat touchscreen with multi-touch projected capacitive control
    • Full device IP66 / IP69K with Stainless Steel SUS304/316 construction
    • Video Input Interfaces:1 x HDMI / 1 x VGA Optional
    • Support USB Interfaces for Touch Function
    • Supports embedded / VESA 100mm x 100mm mounting holes
    • Wide Operating Temperature -20°C to 70°C
    • 12V to 24V DC Wide Range Power Input
    CERoHSFCIP69K
    Visit:1484
    Description Specifications Dimension drawing Order Info Driver download

    Display

    Panel Size

    13.3" ( 16:9 )

    Resolution

    1920 x 1080  ( FHD )

    Display Brightness

    400 cd/m2

    Contrast Ratio

    900:1

    Backlight Lifetime

    50000 Hr (min.)

    Viewing Angle

    85 / 85 / 85 / 85 ( CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    ≥7H

    I / O

    Video

    1 x Waterproof Connector For H-DMI / VGA ( Optional )

    USB

    1 x M12 Waterproof Connector For Touch USB2.0

    Other I/O Interface

    1 x Power Switch

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    1 x M12 Waterproof Connector For 12V~24V DC

    Power Consumption

    ≦30W

    Physical

    Material

    Inox / SUS304 / SUS316

    Mounting

    Stand / Wall / VESA / Yoke

    Dimension (W x H x D)

    350 x 234 x 55 mm

    Cut-out Size

     336 x 220

    Packing Size

    460 x 180 x 400 mm

    Weight (Net)

    7 kg

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP69K

    EMC

    CE, FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPM-H133WCC

    13.3FHD LCD / Resolution 1920x1080 / PCAP Touch / 1 x H-DMI / 1 x T-USB / DC IN 12V~24V



    PACKING LIST

    1 x 13.3Waterproof Touch Monitor

    1 60W PSU (Power Supply)

    1 M12 Waterproof H-DMI Cable 2M

    M12 Waterproof T-USB Cable 2M
