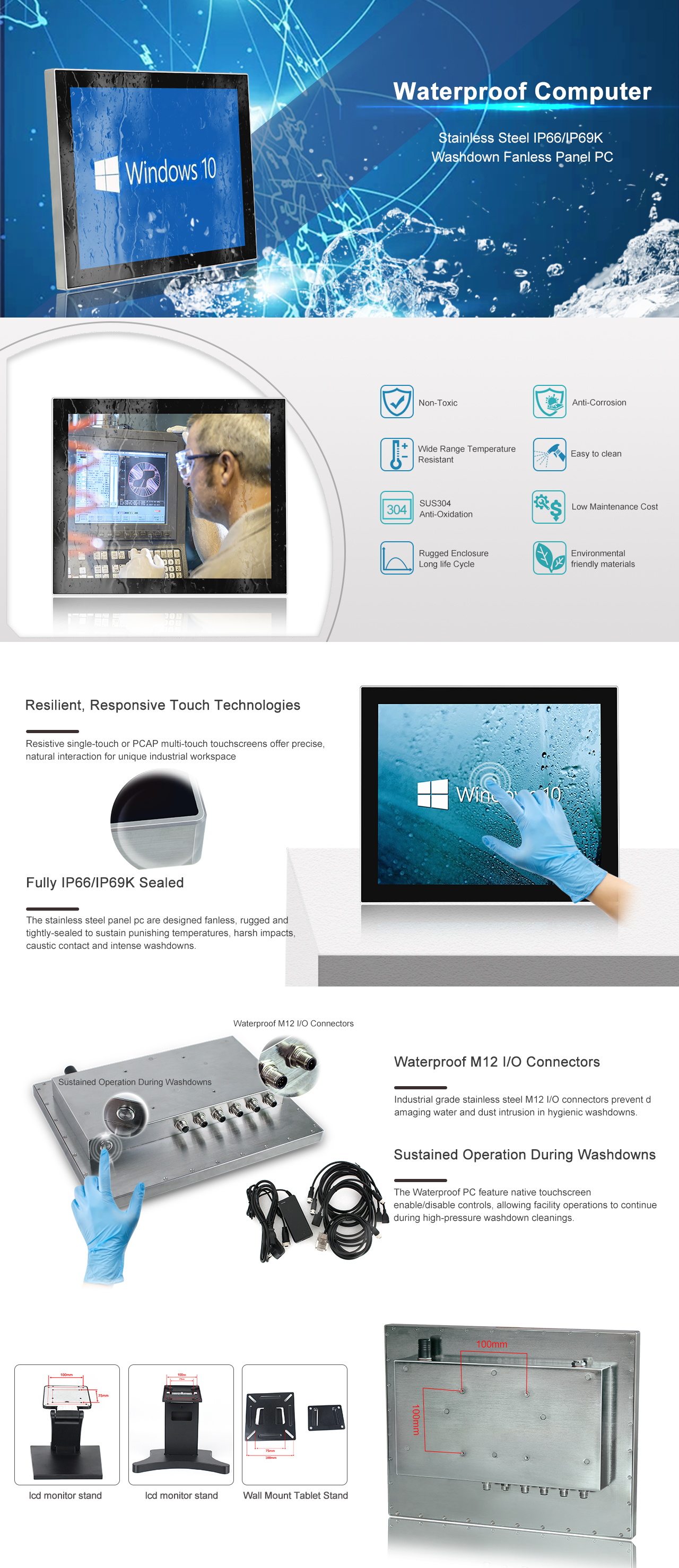

    WPC-O017SCC

    Product features:

    • Whole Shell SUS304 Stainless Steel, Whole PC IP66/IP69K Waterproof
    • 17" TFT LED, Resolution 1280×1024, 10 Points PCAP Touch
    • Intel Core i3-6100U 2.4GHz, Fanless Waterproof PC
    • M12 I/O Industrial Connectors For Optional: VGA/LAN/USB/COM
    • DC12V~24V Input
    CERoHSFCIP69K
    Visit:356
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel Celeron 3855U 1.6GHz / Intel Core i3-6100U 2.4GHz / Intel Core i5-6200U 2.5GHz

    L2 Cache

    2MB / 3MB

    Chipsets

    Intel Bay Trail SOC / Intel 6th Skylake-U SOC

    Memory

    DDR4L 2133MHz 4GB, Up to 16GB

    Harddisk

    1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional

    Graphics

    Intel HD Graphics 510 / Intel HD Graphics 520

    Network

    Intel® i211 1000 Mbps port

    Audio

    Realtek ACL662 Audio controller

    Operation System

    Windows7 / 8 / 10, Linux, Unix, QNX

    I / O

    VGA

    1 x VGA / 1 x HD-MI  ( Optional )

    LAN

    2 x LAN ( Optional )

    USB

    2 x USB2.0 / 2 x USB3.0 ( Optional )

    COM

    2 x RS232 ( Optional )

    Wireless Network

    WiFi + Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    LCD Panel

    Panel Size

    17" Led

    Resolution

    1280 x 1024

    Aspect Ratio

    5:4

    Display Brightness

    400 cd/m2

    Contrast Ratio

    1000:1

    Colors

    16.7M , 90% NTSC

    Response Time

    30 (Typ.)(Tr/Td)ms

    Viewing Angle

    88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Screen Type

    10 point capacitive touch

    Transmittance

    >90%

    Response Time

    <5ms

    Surface Hardness

    ≥6H

    Supply Voltage

    5.0V DC

    Touch Life

    ≧ 3000W

    Institutional

    Material

    Stainless Steel SUS304

    Color

    Polished brushed surface

    VESA Mounting

    VESA: 100 x 100 mm

    Waterproof Rate

    IP66 / IP69K

    Product Dimension

    393.6 x 326 x 55 mm

    Cut-out Size

      /

    Packing Size

    500 x 180 x 450 mm

    Gross Weight

    10.0 KG

    Power and Environment

    Operating Temperature

    -10~60°C

    Storage Temperature

    -20~80°C(-22~176°F)

    Relative Humidity

    5%~95%@40°C(无冷凝)

    Vibration Range

    50500Hz,1.5G,0.15mm峰峰值

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC 12V~24V / Optional(+9V~36V)

    Power Consumption

    ≦30W

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPC-M017SCC

    17” TFT LED Resolution 1280x1024 / Intel Celeron 3855U 1.6GHz  PCAP Touch / LAN / COM / USB / DC IN 12V~24V

    WPC-O017SCC

    17” TFT LED / Resolution 1280x1024 Intel Core i3-6100U 2.4GHz / PCAP  Touch LAN / COM / USB / DC IN 12V~24V

    WPC-P017SCC

    17” TFT LED Resolution 1280x1024 Intel Core i5-6200U  2.5GHz PCAP  Touch / LAN / COM / USB / DC IN 12V~24V



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2133MHz SO-DIMM.4GB/16GB

    Harddisk

    mSATA SSD32G/64G/128G/250G/500G

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x 17” Stainless Steel PC

    1x I/O Cable 2.0M

    1x CD-ROM

    1x Power Adaptor
