    WPC-P012WCC-LP24

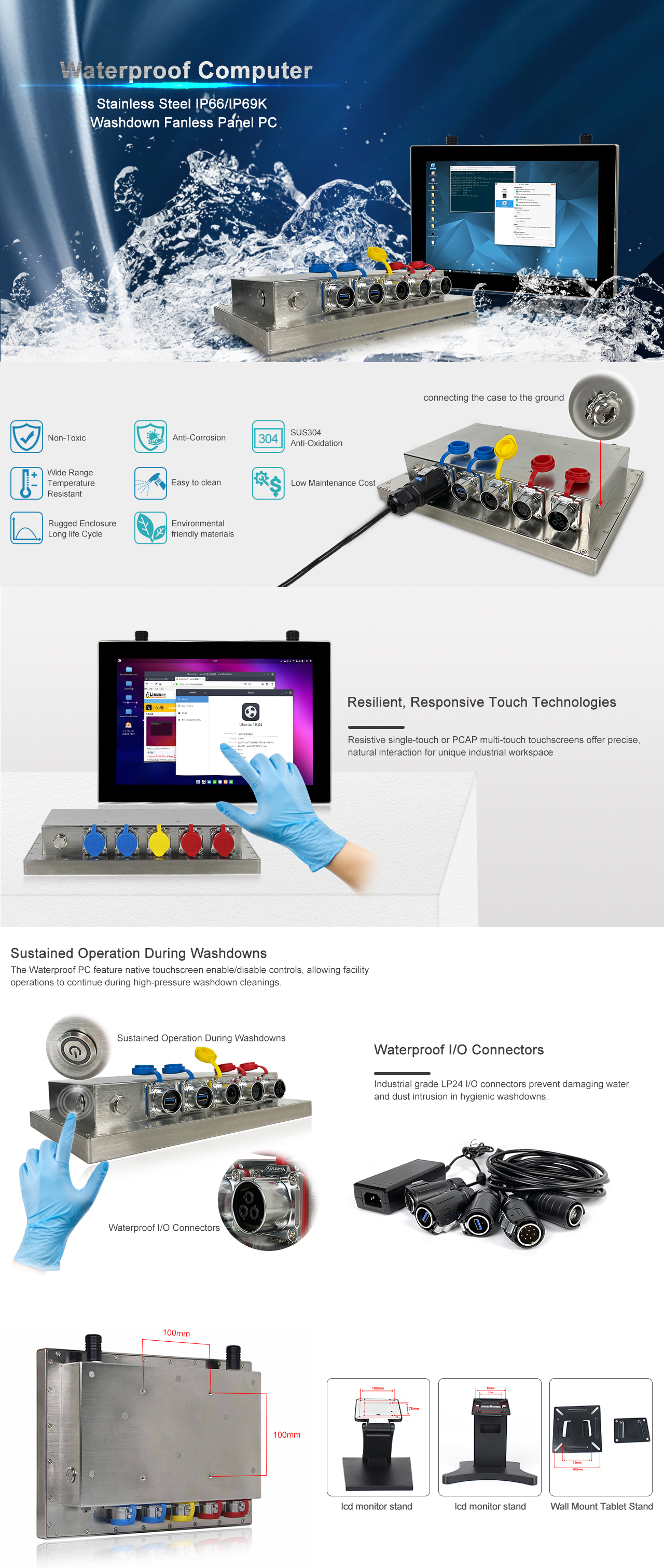

    Product features:

    • Industrial-grade 12.1" WXGA LCD panel with 50k backlight lifetime
    • True-flat touchscreen with multi-touch projected capacitive control
    • 6th Gen Intel® Skylake Core™ i5-6200U dual-core 2.3GHz processor
    • 1 x DDR4 SDRAM, max.32GB, 1 x mSATA SSD
    • LP24 I/O ports:2 x LAN / 2 x USB / 1 x COM
    • Full device IP66 / IP69K with Stainless Steel SUS304/316 construction
    • Wide Operating Temperature -20°C to 70°C
    • 12V to 24V DC Wide Range Power Input
    CERoHSFCIP69K
    Visit:1695
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    6th Gen Intel® Skylake Core i5-6200U Dual Core 2.3GHz , TDP 15W

    L2 Cache

    3MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    1 x DDR4L 2133MHz 4GB, Up to 32GB

    Harddisk

    1 x mSATA 128G SSD / (250G / 500G / 1TB SSD)  / 1 x 2.5" SATA

    Graphics

    Intel HD Graphics 520

    Network

    Intel® I211-AT GbE LAN

    Audio

    Realtek ACL662 Audio controller

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 7 / 8 / 10 ,Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI ( Optional )

    LAN

    2 x LP24 Waterproof Giga LAN RJ45 Connector

    USB

    2 x LP24 Waterproof Connector For USB2.0

    COM

    1 x LP24 Waterproof Connector For COM

    Wireless Network

    Optional ( WiFi / Bluetooth / 4G )

    Other I/O Interface

    1 x Power Switch

    Expansion

    mPCe

    1 x mPCe ( Wifi+BT+4G )

    SIM Socket

    1x SIM Socket

    Display

    LCD Size

    12.1" ( 16:10 )

    Resolution

    1280 x 800

    Brightness (cd/m²)

    400 cd/m2

    Contrast Ratio

    1000:1

    Backlight MTBF

    50000 hrs

    Viewing Angle

    88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    10 point PCAP

    Surface Hardness

    7H

    Power

    Power Adapter

    1 x Optional AC/DC 12V/5A , 60W

    Power Input

    1 x LP24 Power Input 12~24VDC

    Power Consumption

    ≦40W

    Physical

    Material

    Inox / SUS304 / SUS316

    Mounting

    Stand / Wall / VESA / Yoke

    Dimension (W x H x D)

    312 x 214 x 55 mm

    Packing Size

    450 x 170 x 450 mm

    Weight (Net)

    4.0 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP69K

    EMC

    CE , FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPC-P012WCC-LP24

    12.1WXGA LCD / Resolution 1280 x 800 / 6th Gen Intel® Skylake Core i5-6200U 2.3GHz / PCAP Touch / 2 x LAN / 1 x COM / 2 x USB / DC IN 12V~24V



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR4L 2133MHz 4GB, Up to 32GB

    Harddisk

    mSATA / 2.5" SATA SSD 128G (250G/500G/1TB SSD)

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G

    Full Netcom 4G/LTE module, with antenna



    PACKING LIST

    12.1Waterproof Industrial PC

    1 x 60W PSU (Power Supply)

    LP24 Waterproof LAN Cable 2

    LP24 Waterproof USB Cable 2

    LP24 Waterproof COM Cable 2

    1 x CD-ROM
