New product | DIN-Rail DIN-R2000 series industrial computer with low power consumption and high performance

Author:QYT
Time:2023-03-10 10:58:41
Visit:1449
New product | DIN-Rail DIN-R2000 series industrial computer with low power consumption and high performance

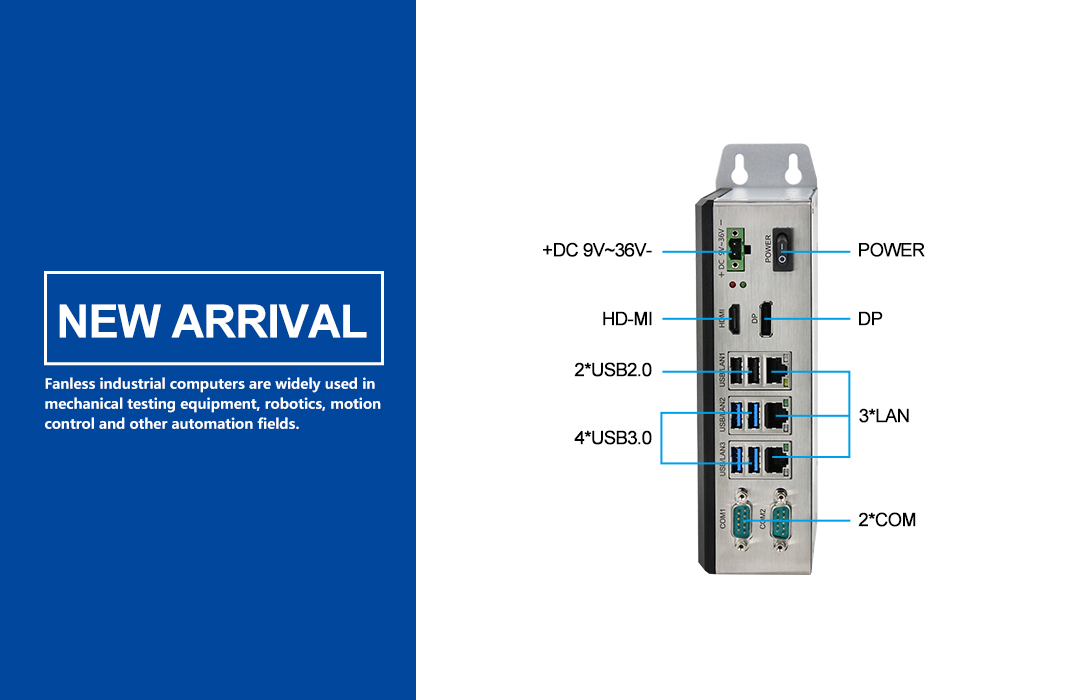

DIN-R2000 series is a fanless industrial computer based on Intel Atom X6425E high-performance processor. Products equipped with rich I/O interface ; 3 2.5GbE Gigabit Ethernet ports; 4 USB3.0/2 USB2.0 interfaces; HDMI, DP, support same display or different display; 2 RS232/RS422/RS485 ;1 DIO 8 Bits ( 4 In / 4 Out ) optional; 1 mPCIe expansion slot; 2 M.2 expansion slots support 3G/4G/5G; 1 SATA, 1 M.2 hard disk supporting SATA protocol. The product design is exquisite and sturdy, and the large-area aluminum fin design quickly dissipates heat for the processor. The fanless and fully enclosed structure effectively prevents dust from entering, ensuring long-term reliable operation in harsh industrial environments.

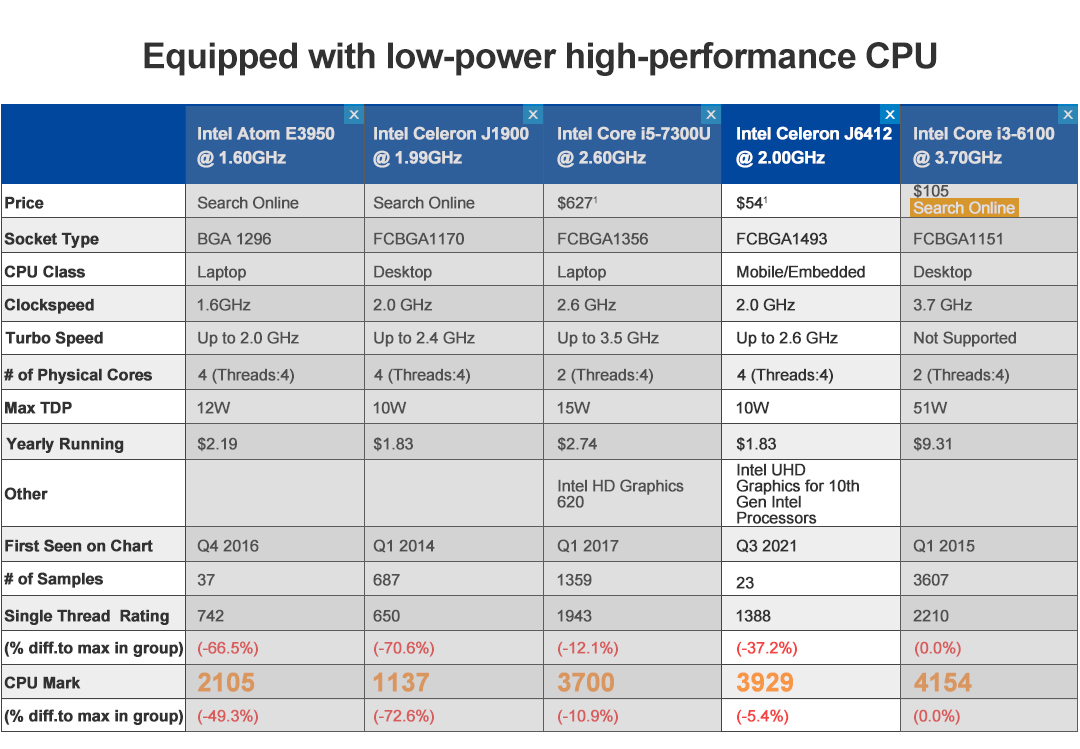

1.Low Power & High Performance

Equipped with the new Intel Celeron @ and Intel Atom X6000E series processors, supporting up to 4 cores, 3.0 GHz turbo frequency.Compared to the previous generation solution, the CPU performance has been increased by 50% and the graphics processing power has been doubled. The DIN-R2000 series provides stable support for various industry applications through its powerful computing functions and industrial characteristics.

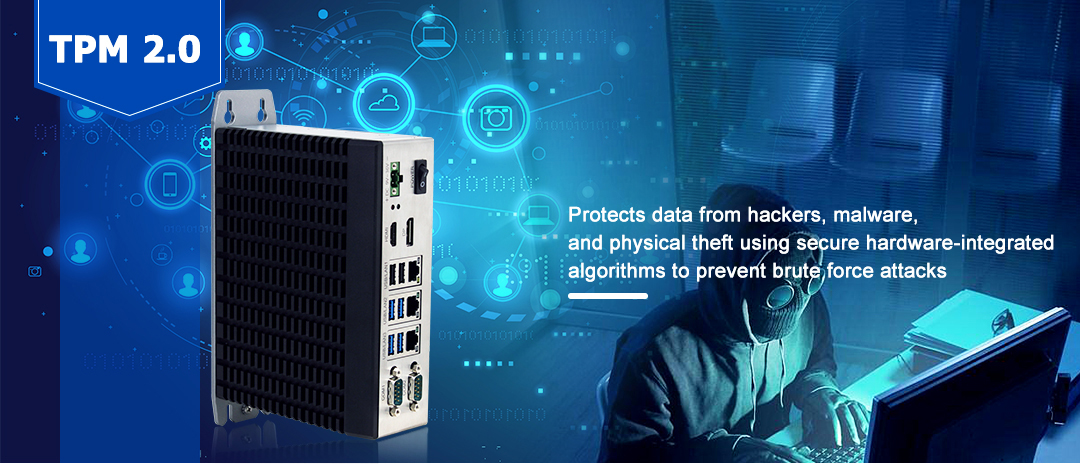

2.TPM Function

The TPM standard ensures secure data storage and platform authentication and integrity auditing. The three-tier structure of TPM 2.0 allows the use of multiple keys to improve the security of the TPM 2.0 standard, which provides better protection against malware and rogue applications that affect legitimate processes.

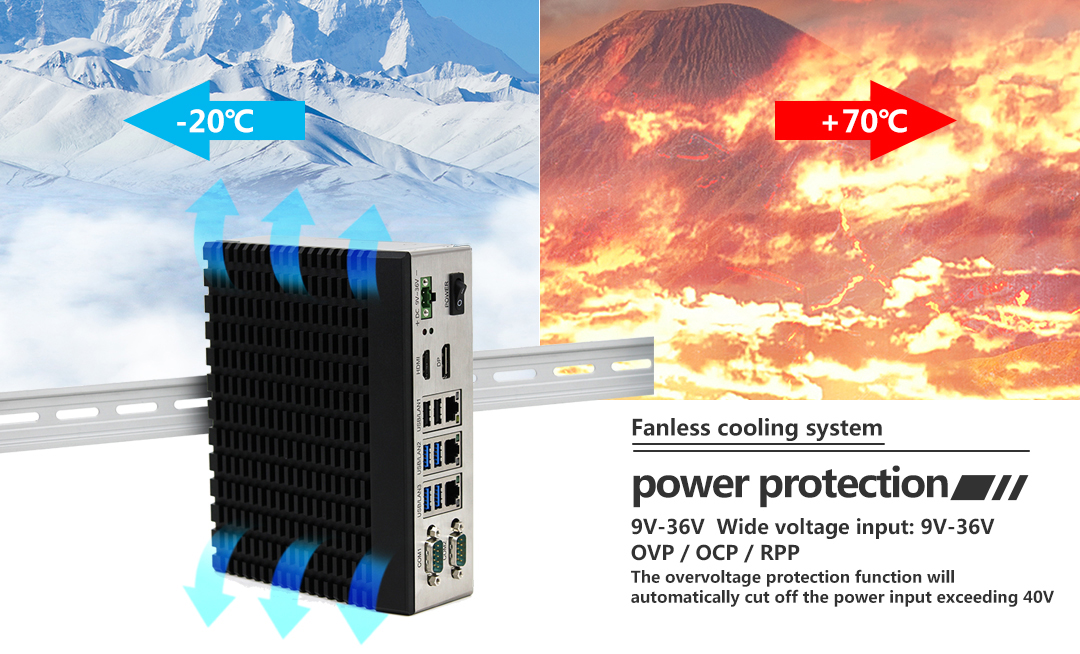

3.Wide Temperature

Embedded industrial PCs are able to operate in extreme cold and hot environments ranging from minus -20°C to plus 70°C thanks to the high thermal conductivity heatsink and the all-in-one chassis as heatsinks.



4.Wide Pressure

When connecting a DIN-Rail box PC to an external system,the ability to control the voltage input is critical to extending the life of the hardware. The embedded industrial computer has OVP (overvoltage protection), OCP (overcurrent protection) and RVP (reverse connection protection). The OVP function will automatically cut off the power input exceeding 40V to avoid burning internal components. The system is compatible with the input range of 9V to 36V and is suitable for deployment in different applications

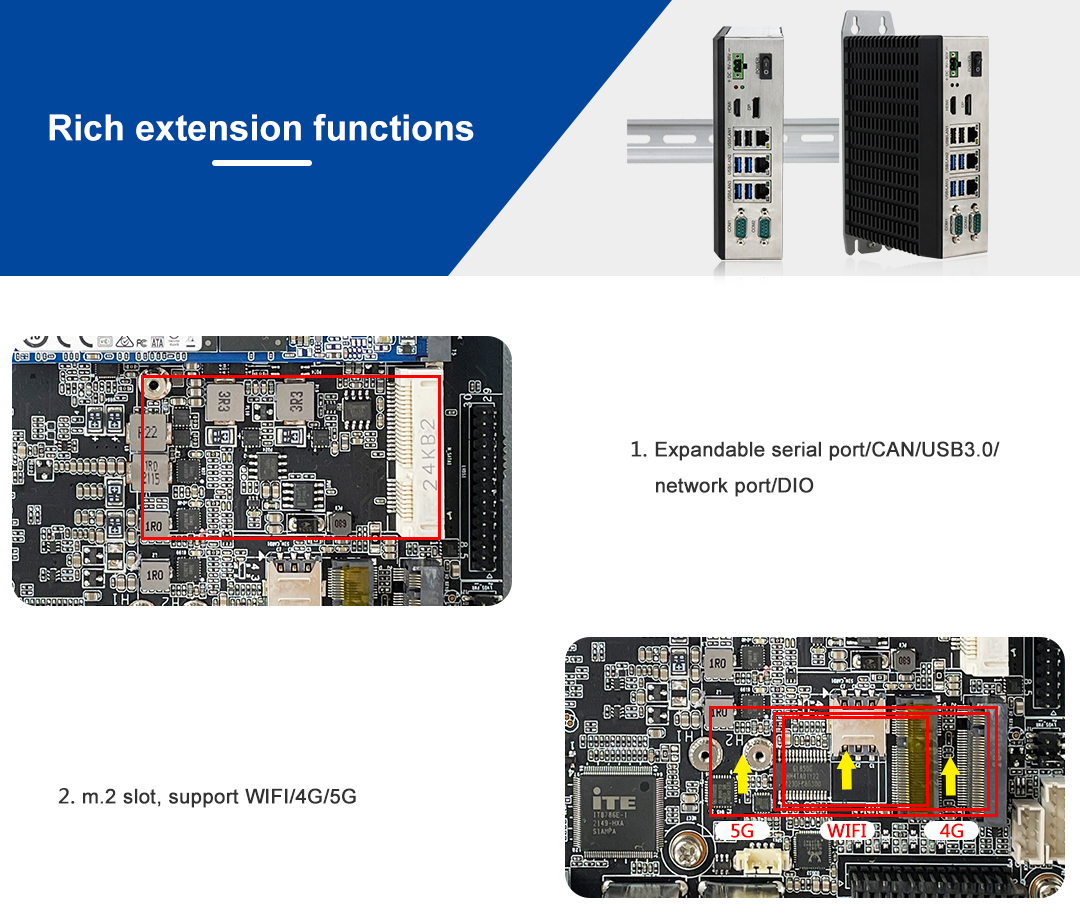

5.Extended Functions

1. mPCIe can extend serial port/CAN/USB3.0/network port/DIO.

2. m.2 slot, support WIFI/4G/5G.

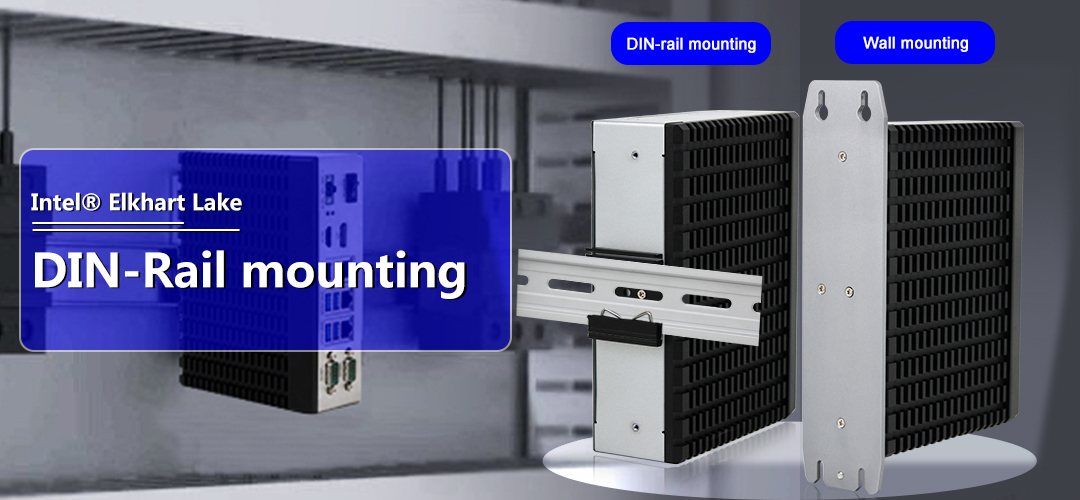

6. Mounting

1. Wall mounting

2. DIN-rall mounting
