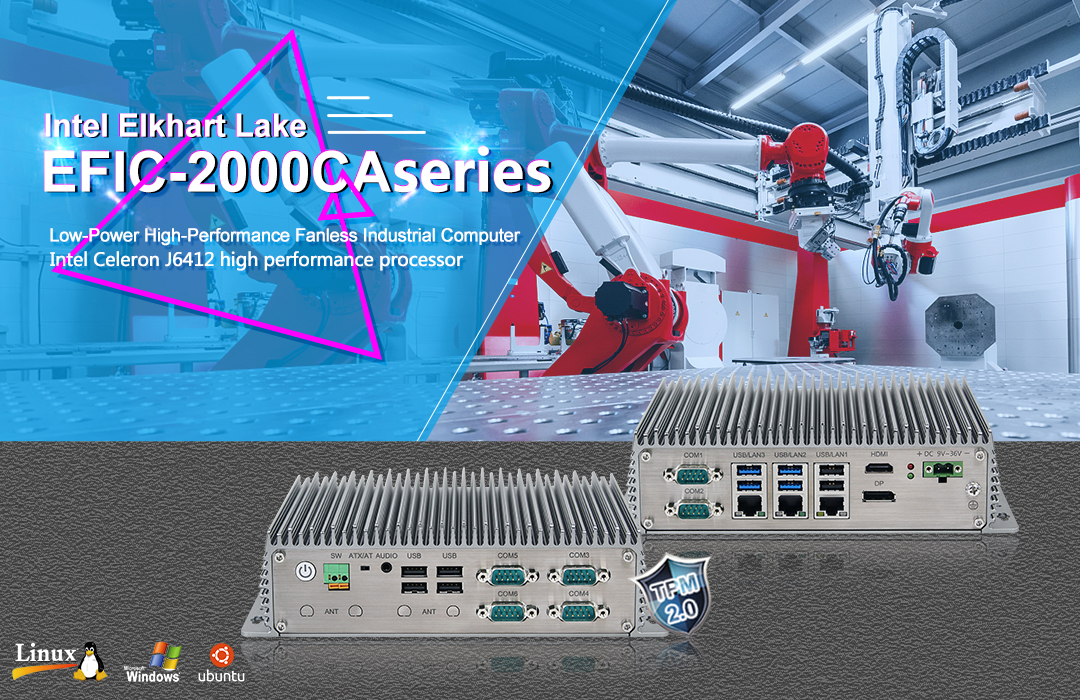

New Product | Low-Power High-Performance Fanless EFIC-2000 Series Industrial Computer

Time:2022-08-17 09:30:04
New Product | Low-Power High-Performance Fanless EFIC-2000 Series Industrial Computer

With the rapid development of intelligent manufacturing and Industry 4.0, the industrial and automation industries not only put forward higher requirements for the performance of industrial computers, but also pose greater challenges to prices. In order to better support the high-quality development of the industry, Qingyuntong has continuously innovated its own products and technologies, launched the EFIC-2000 series of Elkhart Lake platform products with high performance, low power consumption and high cost performance, and continuously improved the manufacturing process and efficiency.

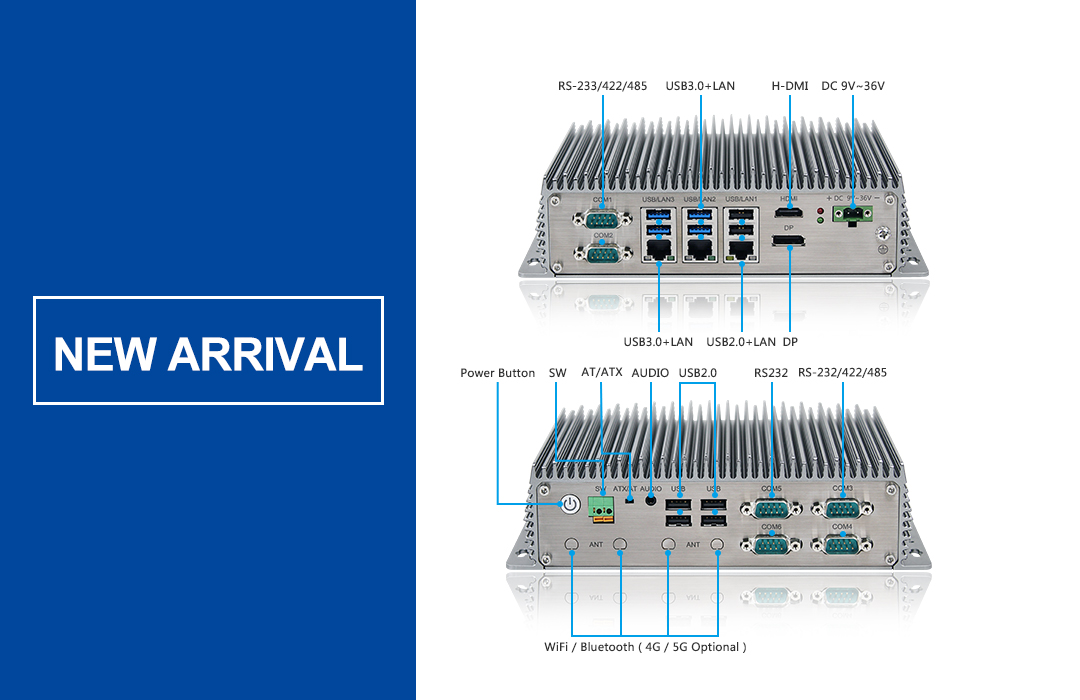

EFIC-2000 series is a fanless industrial computer based on Intel Celeron J6412 high-performance processor. The product is equipped with a wealth of I/O interfaces, including 3 2.5GbE Gigabit Ethernet ports; 4 USB3.0/6 USB2.0 interfaces; HDMI, DP, support the same display or different display; 4 RS232/RS422/RS485 , 2 RS232 serial ports; 1 miniPCIe expansion slot, expandable LAN/CAN/DIO module; 1 M.2 expansion slot supports 3G/4G/5G, 1 SATA, 1 M.2 hard disk interface, hard disk supports SATA protocol. This product has a compact and robust design. Large-area aluminum fin design quickly dissipates processor heat. Fanless fully enclosed structure, effectively preventing dust from entering, ensuring long-term reliable operation in harsh industrial environments.

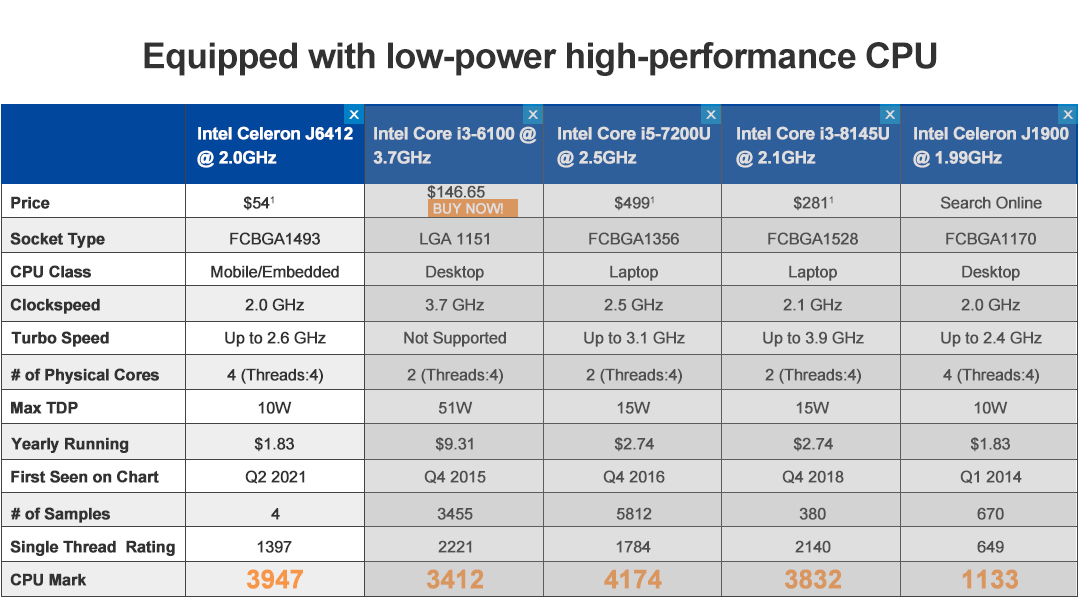

1. Low Power & High Performance

Equipped with the new Intel Celeron @ and Intel Atom X6000E series processors, supporting up to 4 cores, 3.0 GHz turbo frequency.Compared to the previous generation solution, the CPU performance has been increased by 50% and the graphics processing power has been doubled. The EFIC-2000 series provides stable support for various industry applications through its powerful computing functions and industrial characteristics.

2. TPM Function

The TPM standard ensures secure data storage and platform authentication and integrity auditing. The three-tier structure of TPM 2.0 allows the use of multiple keys to improve the security of the TPM 2.0 standard, which provides better protection against malware and rogue applications that affect legitimate processes.

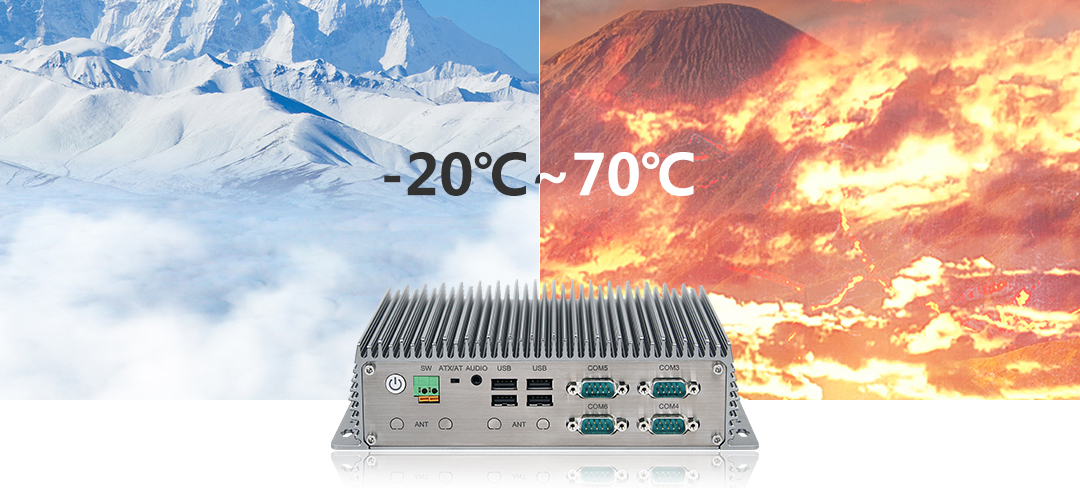

3. Wide Temperature

Embedded industrial PCs are able to operate in extreme cold and hot environments ranging from minus -20°C to plus 70°C thanks to the high thermal conductivity heatsink and the all-in-one chassis as heatsinks.

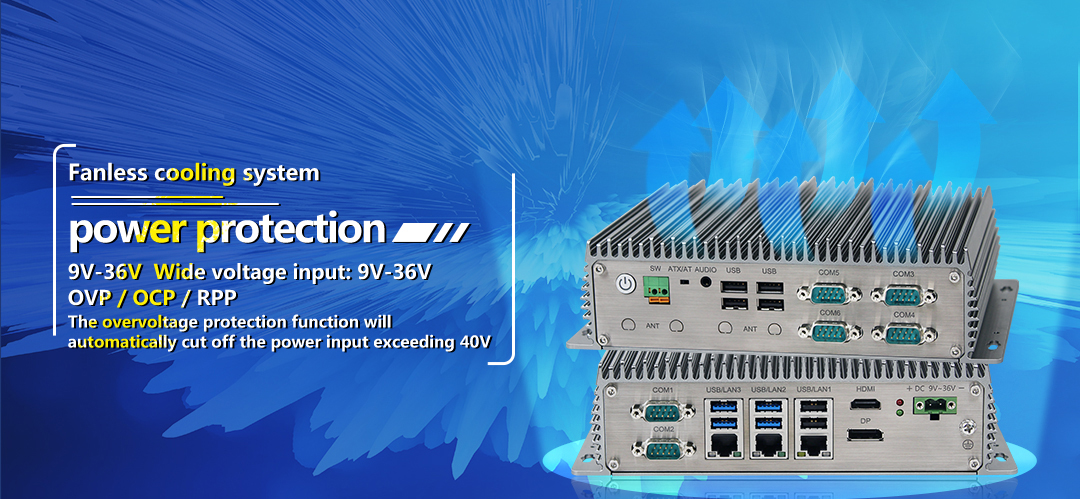

4. Wide Pressure

When embedding an IPC into an external system, the ability to control the voltage input is critical to extending the life of the hardware. The embedded industrial computer has OVP (overvoltage protection), OCP (overcurrent protection) and RPP (reverse Polarity protection). The OVP function will automatically cut off the power input exceeding 40V to avoid burning internal components. The system is compatible with the input range of 9V to 36V and is suitable for deployment in different applications.

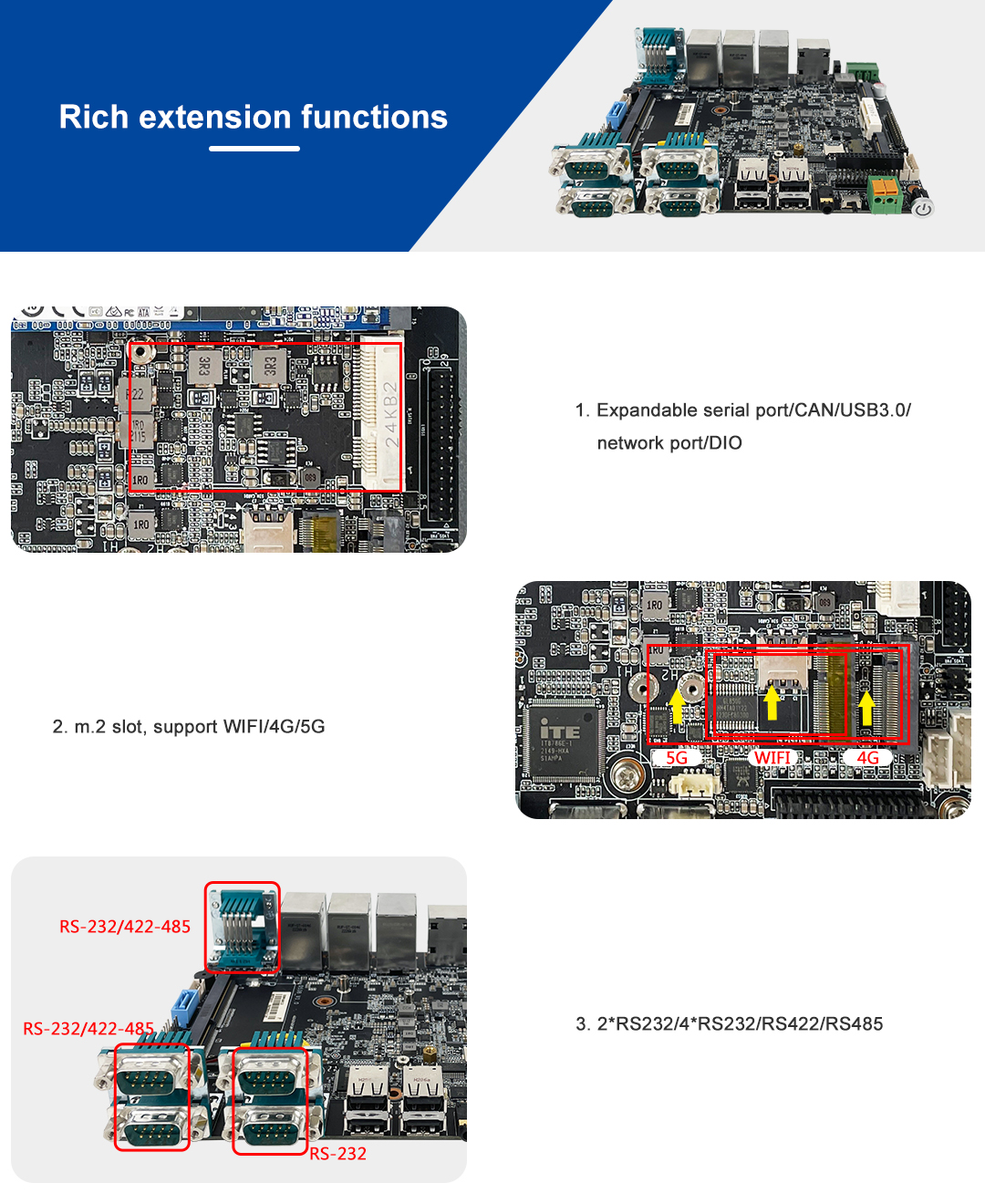

5. Extended Functions

1.   mPCIe can extend serial port/CAN/USB3.0/network port/DIO.

2.   m.2 slot, support WIFI/4G/5G.

3. 2 RS232 4 RS232/RS422/RS485

6. Main features

1.   All-aluminum alloy structure is sturdy and compact, fanless design

2.   Intel Celeron J6412 2.0GHz quad-core processor

3.   Support DP and HDMI dual independent display

4.   3*2.5GbE ports and 6*COM (4 x RS232/RS422/RS485)

5.   Support encrypted onboard TPM2.0 module

6.   Support wide voltage DC 9V~36V input
