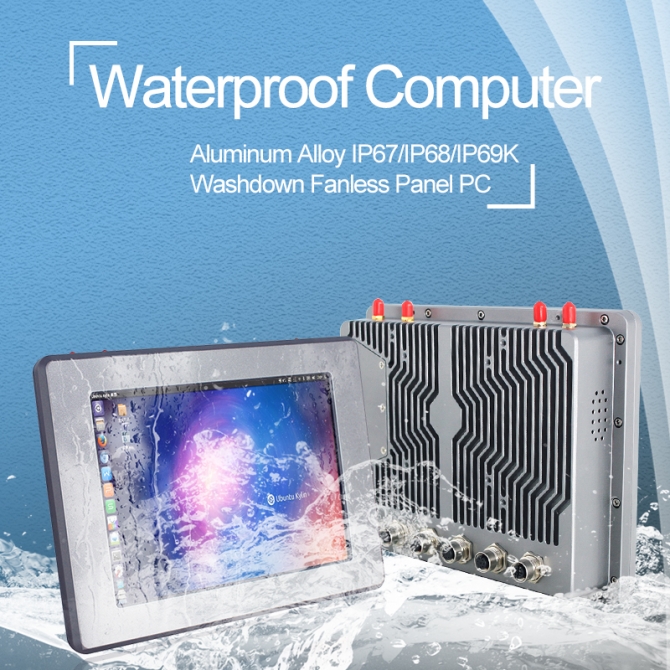

    WPC-C008SAR

    Product features:

    • Industrial-grade 8.4" SVGA LCD panel with 50k backlight lifetime
    • High precision 5-wires resistive touch, EETI controller
    • Intel® Celeron® J6412 quad-core 2.0 GHz processor
    • 1 x DDR4 SDRAM, max.32GB, 1 x M.2 2280 NVMe or SATA SSD
    • SP13 I/O ports:2 x LAN / 2 x USB / 1 x COM
    • Full device IP67 with Strong aluminum alloy casing
    • Support TPM2.0 hardware security
    • Wide Operating Temperature -20°C to 70°C
    • 9V to 36V DC Wide Range Power Input,Supporting OVP / OCP / RPP
    CERoHSFCTPMIP69K
    Visit:1602
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W

    L2 Cache

    1.5MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    1 x DDR4L 3200MHz 4GB, MAX 32GB

    Harddisk

    1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA

    Graphics

    Intel® UHD Graphics for 10th Gen Intel® Processors

    Network

    Intel® 226-V GbE LAN

    Audio

    Realtek ACL897 Audio controller

    TPM

    TPM 2.0

    Watchdog Timer

    Software Programmable Supports 1~255 sec. System Reset

    Operation System

    Windows 10 / 11, Linux, Ubuntu

    I/O

    VIDEO

    1 x H-DMI ( Optional )

    LAN

    2 x SP13 Waterproof Giga LAN RJ45 Connector

    USB

    2 x SP13 Waterproof Connector For USB2.0

    COM

    1 x SP13 Waterproof Connector For COM

    Wireless Network

    Optional (WiFi / Bluetooth / 4G / 5G )

    Other I/O Interface

    1 x Power Switch

    Expansion

    M.2

    1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

    1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

    1*M.2 ( Key-M, 2280,NVMe/ SATA, SSD )

    SIM Socket

    1x SIM Socket

    Display

    LCD Size

    8.4" ( 4:3)

    Resolution

    800 x 600

    Brightness (cd/m²)

    450 cd/m2

    Contrast Ratio

    600:1

    Backlight MTBF

    50000 Hr (min.)

    Viewing Angle

    80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Type

    5 wire Resistive touch

    Surface Hardness

    3H

    Power

    Power Input

    1 x SP13 Waterproof Connector For 9V~36V DC

    Power Mode

    Support AT, ATX Mode

    Power Protection

    OVP (Over Voltage Protection) | OCP (Over Current Protection)  |  RPP(Reverse Polarity  Protection)

    Power Consumption

    ≦45W

    Physical

    Material

    Aluminum Alloy Shell

    Mounting

    Stand / Wall / VESA

    Dimension (W x H x D)

    235 x 185 x 55 mm

    Packing Size

    450 x 170 x 350 mm

    Weight (Net)

    2.8 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Protection

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP67 / IP69K

    EMC

    CE , FCC,Class A,ROHS

    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    WPC-C008SAR

    8.4" SVGA LCD / Resolution 800 x 600 / Intel Celeron J6412 2.0GHz / Resistive Touch / 2 x LAN / 1 x COM / 2 x USB / TPM2.0 / DC IN 9V~36V (OVP / OCP / RPP)



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR43200MHz 4GB, MAX 32GB

    Harddisk

    M.2 / 2.5" SATA SSD 120G (250G/500G/2TB SSD)

    WiFi

    Wifi Bluetooth Combo Module, with antenna

    4G/5G

    Full Netcom 4G/5G/LTE module, with antenna



    PACKING LIST

    8.4" Waterproof Industrial PC

    1 x 60W PSU (Power Supply)

    SP13 Waterproof LAN Cable 2

    SP13 Waterproof USB Cable 2

    SP13 Waterproof COM Cable 2

    1 x CD-ROM
