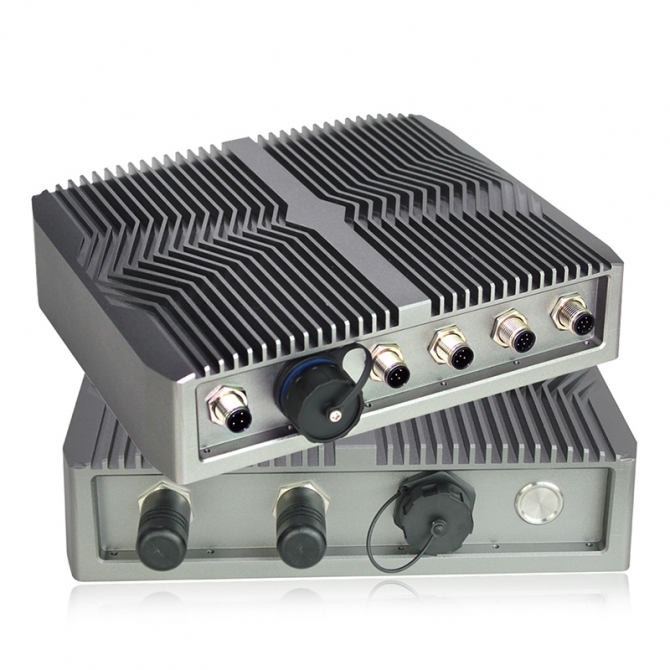

    EFIC-6000JA

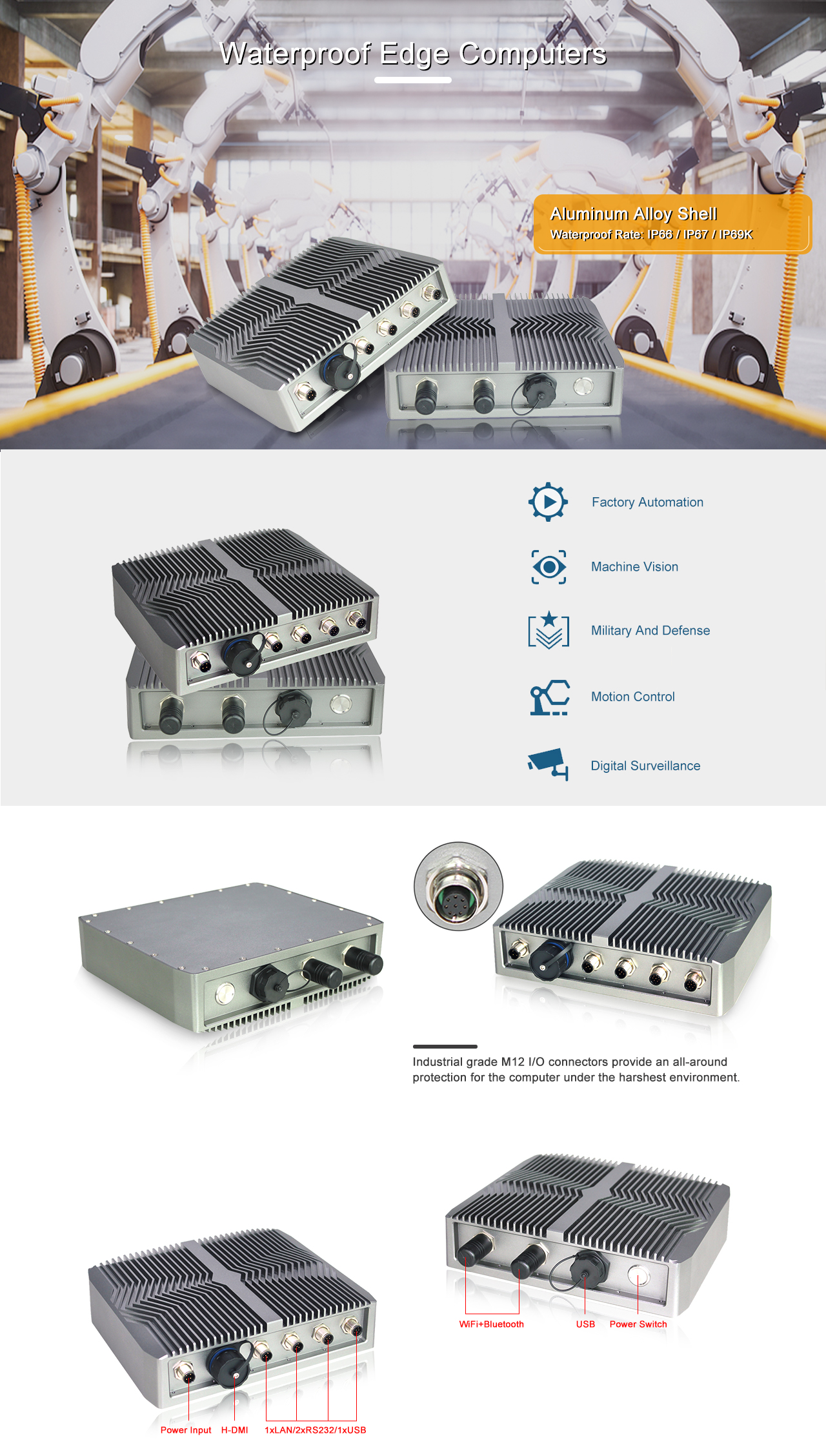

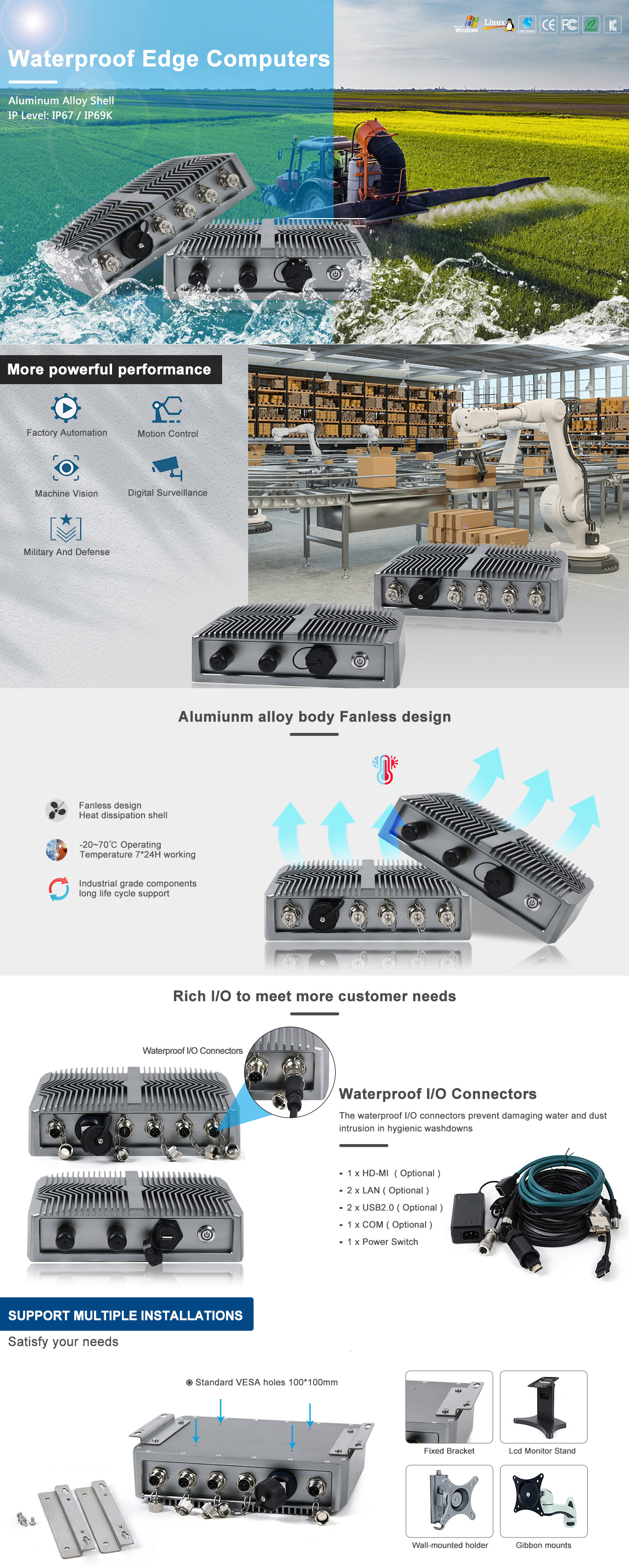

    Product features:

    • Intel Celeron J1900 2.0GHz Fanless Configuration
    • VGA and HDMI dual independent display supported
    • 2*COM (RS232/RS485 Optional), 1*WiFi / Bluetooth/4G Optional
    • Work temperature -20 ° C to 70 ° C
    • DC 12~24V Input
    CERoHSFCIP69K
    Visit:1188
    Description Specifications Dimension drawing Order Info Driver download

    System

    CPU

    Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W

    L2 Cache

    2.0MB

    System Chipset

    Integrated with Intel® SoC

    Memory

    DDR3L 1333MHz 4GB, Up to 8GB

    Harddisk

    1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional

    Graphics

    Intel HD Graphics

    Network

    Intel® 226-V GbE LAN

    Audio

    Realtek ACL662 Audio controller

    Operation System

    Windows 7 / 8 / 10Linux, Ubuntu

    I / O

    VIDEO

    1 x HD-MI

    LAN

    1 x M12 Waterproof Giga LAN RJ45 Connector

    USB

    2 x M12 Waterproof Connector For USB2.0

    COM

    1 x M12 Waterproof Connector For COM

    Wireless Network

    WiFi + Bluetooth / 4G / 5G ( Optional )

    Other I/O Interface

    1 x Power Switch

    Power

    Power Adapter

    1 x Optional AC/DC 12V/4A , 48W

    Power Input

    2-pin M12 Power Input 12~24VDC

    Power Consumption

    ≦20W

    Physical

    Material

    Aluminum Alloy Shell

    Color

    Grey / Silver / Black ( optional )

    Product Dimension

    220 x 180 x 55 mm

    Mounting

    232 x 90 mm / 100 x 100 mm

    Packing Size

    360 x 180 x 320 mm

    Weight (Net)

    1.5 KG

    Environment

    Operating Temperature

    -20~70°C  ( -4~158°F )

    Storage Temperature

    -30~80°C (-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    IP Level

    IP66 / IP67 / IP69K

    EMC

    CE, FCC,ROHS


    ORDERING INFORMATION

    AVAILABLE MODELS

    DESCRIPTION

    EFIC-6000JA

    Intel Celeron J1900 2.0GHz / VGA / H-DMI / LAN /  USB2.0 / COM / GPIO(Optional) / DC 12V~24V



    CONFIGURATION

    DESCRIPTION

    Memory

    RAMDDR3L 1333MHz SO-DIMM.4GB/8GB

    Harddisk

    mSATA  SSD128G/250G/500G/1TB

    WiFi

    Wi-Fi Bluetooth Combo Module, with antenna



    PACKING LIST

    1x Embedded Fanless Industrial PC

    1x CD-ROM

    1x Fixed Bracket

    1x Power Adaptor
